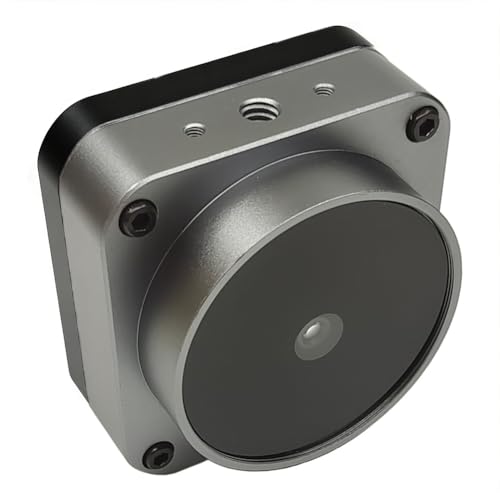

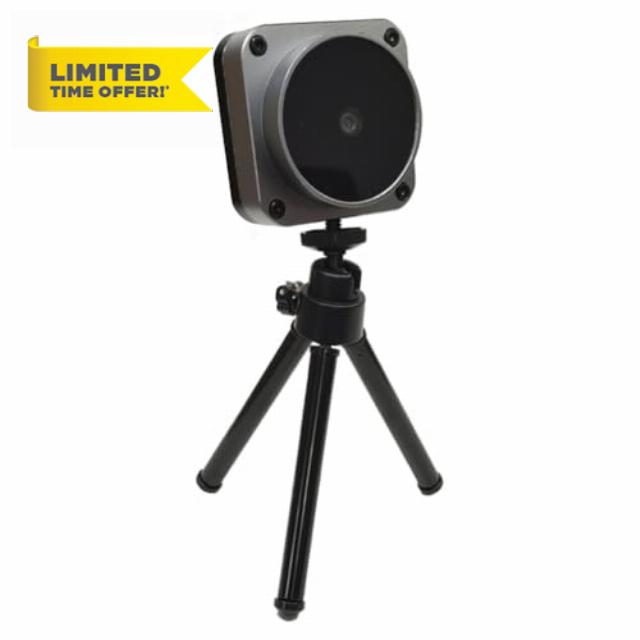

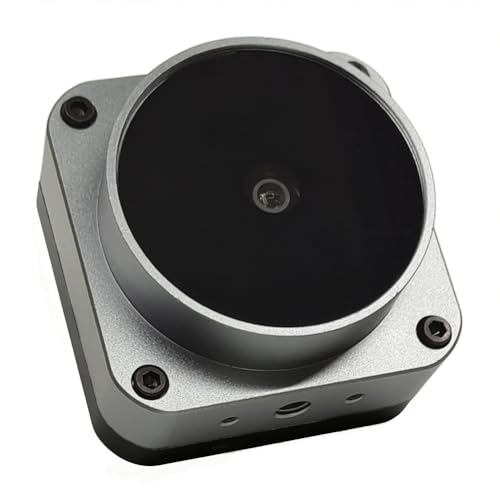

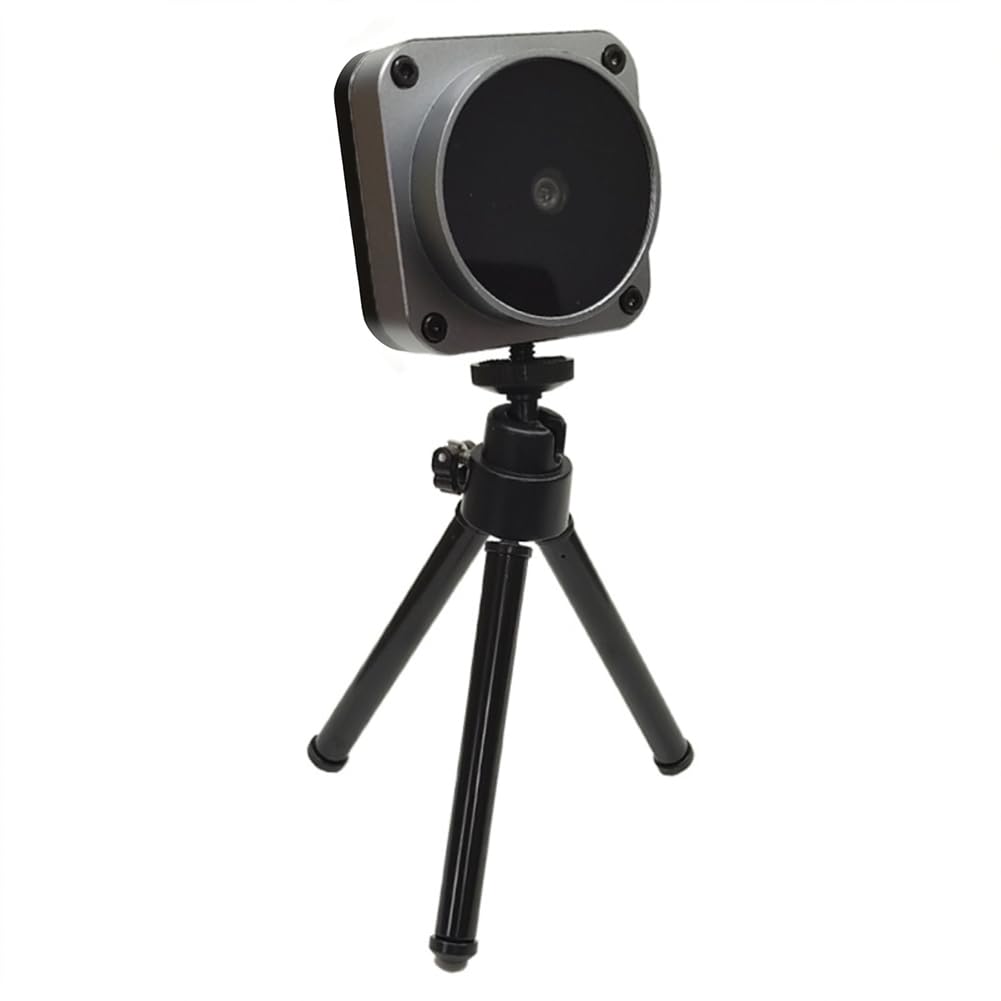

Color Image 50MP IMX766 Live Broadcast Camera PDAF Auto

Color Image 50MP IMX766 Live Broadcast Camera PDAF Auto Focus USB 2.0 Auto Exposure 8160x6120p Free Drive

Onchdbfhuu Notices:
This product is a CMOS product and is relatively sensitive to static electricity. Please pay attention to the influence of static electricity during use, handling and storage.
After removing the lens protective film, please do not touch the light inlet of the lens with your bare hands, to avoid leaving finger marks, affecting the image Quality,
This is a relatively precise product, during use or transportation, mechanical collision should be avoided.During use, avoid direct exposure to sunlight to prevent damage to the circuit.
When designing, the power supply for this product should be an analog . Switching power supplies such as DC/DC converters should be avoided as they may increase noise and affect image quality.
When installing the PCB, if there is any bending, make sure a transition with an Angle of no less than R0.5, to the performance of the PCB.

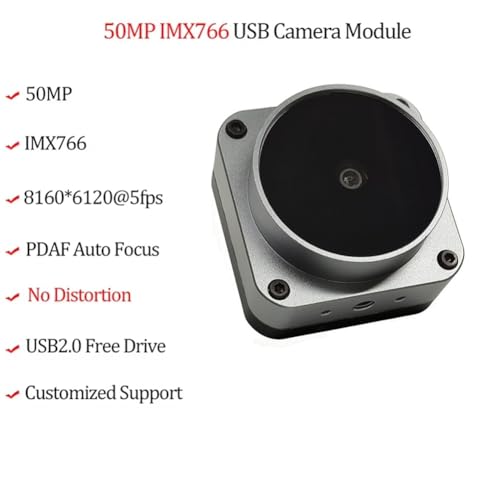

Sensor: for IMX766, 1/1.56 inch, single pixel 1.0μm
Resolution: 8160 * 6120p (50MP)
Auto Focus: PDAF with fast auto focus
Connectivity: USB 2.0, plug and play with UVC
Compatibility: /Linux/Android
Multi-scenario use: Live streaming, video conferencing, face recognition, industrial inspection
Color: As Shown
Material: Metal

Package Contents:
1 * cam
1 * holder

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

• detail magnification clear, suitable for Micro-, industrial testing and other professional scenes. PDAF+ Fast Auto Focus: Experience swift and accurate focusing with the snelle auto focus feature, ensuring images every time. UVC drive free plug and play: Conform to the USB Video Class agreement, compatible with /Linux/Android, don't need to install the driver.
• Unparalleled Image Clarity: Capture the details with the IMX766 50MP camera module, a pinnacle of in consumer camcorders. The 1/1.56 inch sensor, with its single pixel 1.0μm size, ensures crystal-clear images that are perfect for a myriad of applications.
• Multi-scenario intelligent adaptation: Live streaming: Support OBS/ Douyin live assistant, 4K image quality to enhance audience immersion; Video conference: Lens 82°, multi-person conference picture clear; Face recognition: Enhance security with face recognition capabilities, ideal for applications requiring dentification and access control.; Industrial inspection: Support AI algorithm access, for PCB defect detection, size measurement.
• The IMX766 sensor: 1/1.56 inch sensor, single pixel 1.0μm, support DOL-HDR technology, Capture every detail with the IMX766 50MP camera module, offering crystal-clear images for your videoconferences and live streams. 8160×6120 Ultra HD Resolution (50MP): Static support 50MP (8160×6120), video output, 50MP (8160×6120)@5fps; 4080 * 3060@15fps; 3840 * 2160@30fps; 2560 * 1440@30fps;
• Versatile and User-Friendly: This camera is not resolution; it's about versatility. With support for multiple resolutions including 8160x6120p (50MP), 4080 * 3060@15fps, 3840 * 2160@30fps, 2560 * 1440@30fps, and the ability to capture static images at 50MP, the camera adapts to your needs. Tailored for Professional Use: The IMX766 50MP camera is more than just a tool for personal use; it's a powerful instrument for professionals.
