ELP 12MP USB 3.0 Camera, 4K@30fps 1080P@230fps High Frame

ELP 12MP USB 3.0 Camera, 4K@30fps 1080P@230fps High Frame Rate UVC Camera with 5-50mm 10X Zoom Lens,Plug & Play for Industrial Applications,Surveillance and 3D Printing,Compatible with Windows Linux

ELP 12MP USB 3.0 High-Speed Camera, 4K@30fps 1080P@230fps, 10X Zoom Lens UVC Camera, Multi-Scene for Industrial Security 3D Printer, Plug & Play

Product Features:

1: Excellent high-FPS performance: The 1080p@230fps high-speed mode is the real win here.

2: 4K @30fps Motion looks smooth and clear, and it’s actually usable for analyzing quick movements.

3: Solid image quality: In good lighting, the picture is crisp with nice detail. It’s a small sensor camera, but it punches above its size when you give it enough light.

4: USB 3.0 support: When you’re pushing higher resolutions/frame rates, the USB 3.0 connection makes a noticeable difference in stability and throughput.

A couple of practical notes:

Like most high-speed cameras, lighting matters—you’ll get the best results with bright, even light.

Depending on your computer and software, you may need to dial in resolution/FPS settings to match what your system can sustain (totally normal for high-frame-rate capture).

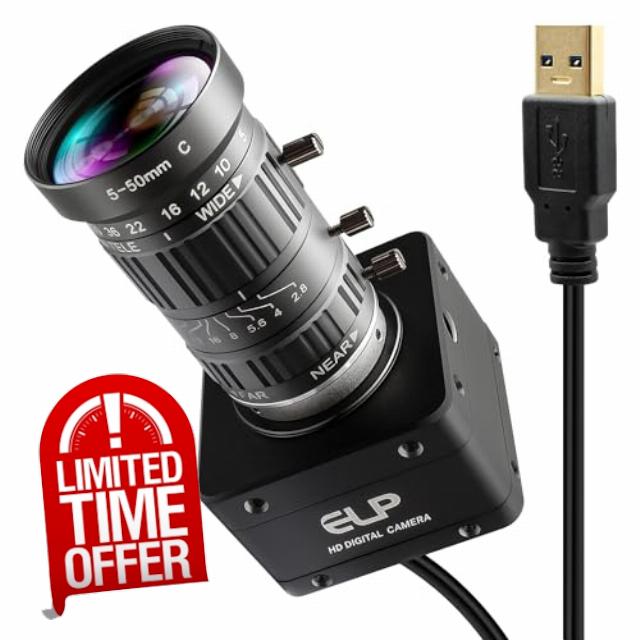

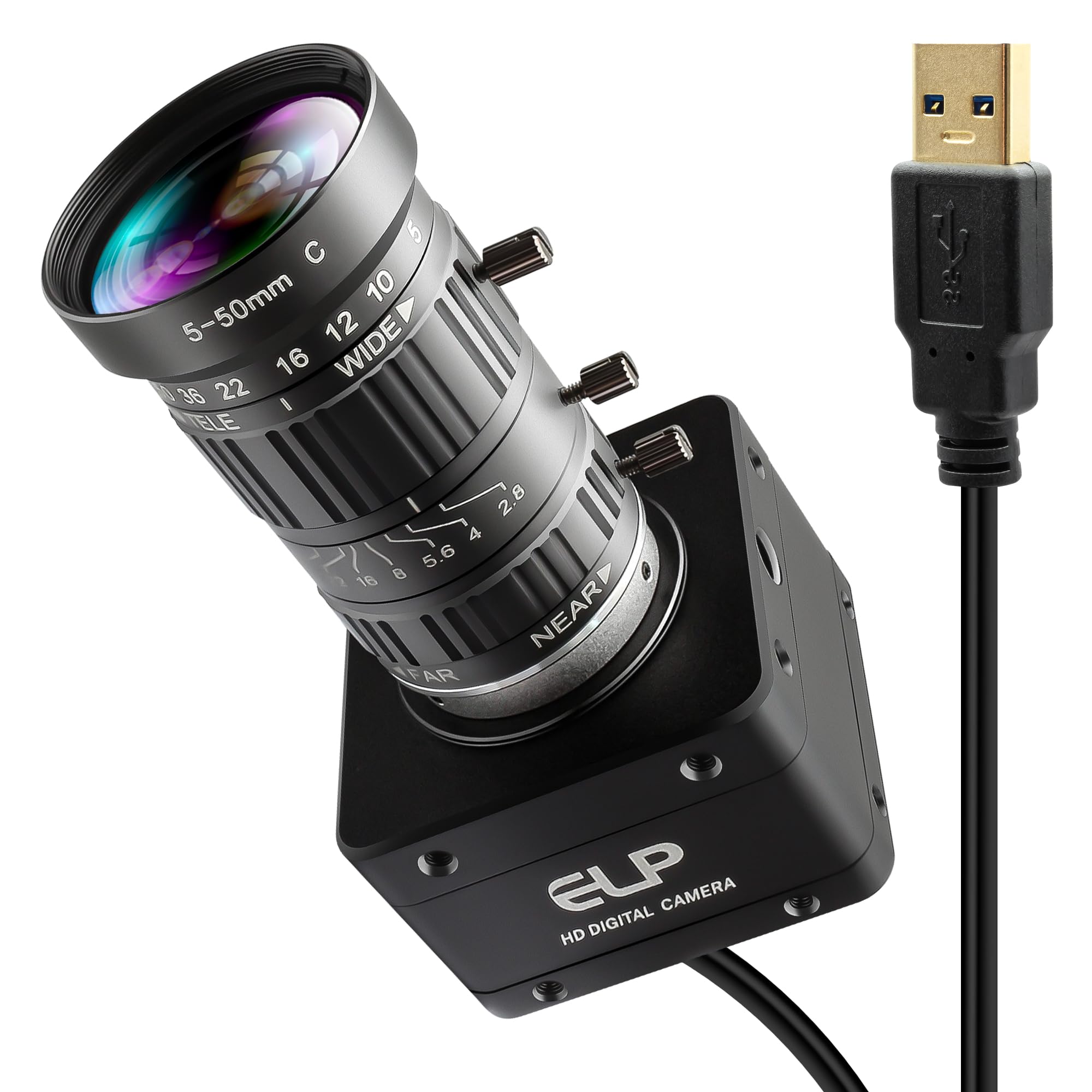

12MP Industrial USB 3.0 Camera with 5-50mm Manual Zoom Lens, 1080P@230fps High Frame Rate 4K@30fps UVC Camera for Security Monitoring 3D Printing

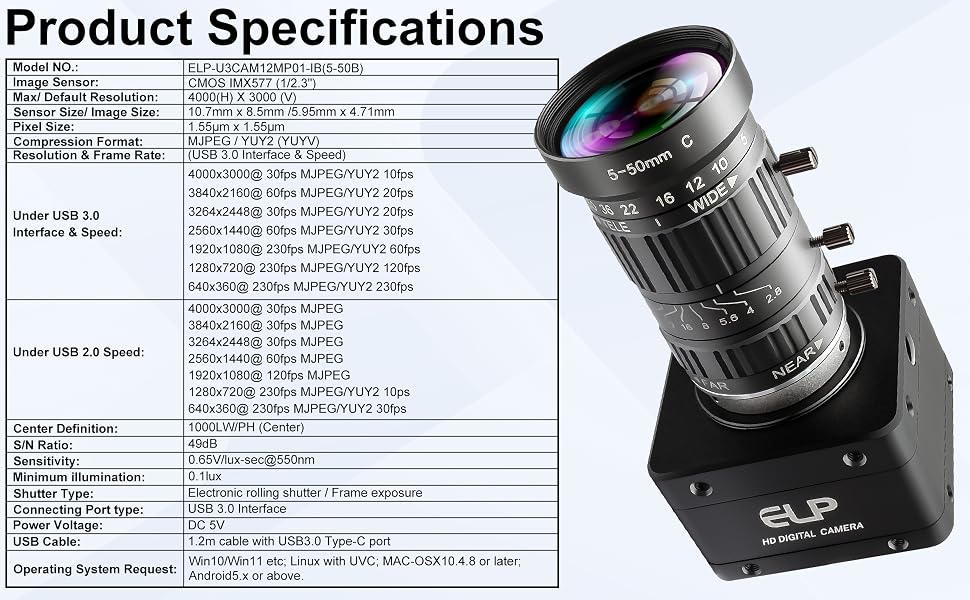

SPECIFICATION:

*aluminum mini case, CS mount

*5-50mm megapixel varifocal lens, 1.5m Type C USB 3.0 cable

Max / Default Resolution:4000(H) *3000 (V)

Video Compression:MJPEG / YUY2(YUYV)

Shutter Type: Electronic rolling shutter / Frame exposure

Connecting Port Type: USB 3.0 Interface

Power Supply & Interface:USB Type-C Power Supply, Type-C

With 1.2m cable with USB3.0 Type-C port

DC 5V, Power current 180-260mA

Working Temperature: -10°C to 65°C

Operating System Request：

Win10/Win11 etc; Linux with UVC; MAC-OSX10.4.8 or later; Android5.x or above.

12MP USB 3.0 Camera,1080P@230fps, 4K@30fps High Speed USB Webcam with 10X 5-50mm Manual Zoom Lens Industrial UVC Camera, 3D Printer, Security Camera

Resolution & Frame Rates:

Under USB 3.0 Interface & Speed:

4000×3000@ 30fps MJPEG/YUY2 10fps

3840×2160@ 60fps MJPEG/YUY2 20fps

3264×2448@ 30fps MJPEG/YUY2 20fps

2560×1440@ 60fps MJPEG/YUY2 30fps

1920×1080@ 230fps MJPEG/YUY2 60fps

1280×720@ 230fps MJPEG/YUY2 120fps

640×360@ 230fps MJPEG/YUY2 230fps

Under USB 2.0 Speed:

4000×3000@ 30fps MJPEG, 3840×2160@ 30fps MJPEG

3264×2448@ 30fps MJPEG, 2560×1440@ 60fps MJPEG

1920×1080@ 120fps MJPEG, 1280×720@ 230fps MJPEG/YUY2 10ps

640×360@ 230fps MJPEG/YUY2 30fps

12 Megapixes High Resolution 4k USB Webcam with CS Mount 5-50mm Manual Varifocus Lens Close UP OpenCV Camera Free Driver Plug and Play

This 12MP resolution ensures that even still shots are crisp and detailed.

Whether you're using it for a 3D printer monitor, a Lightburn setup, or a Jetson Nano project,

especially the 230fps at 1080P, which is perfect for motion analysis or high-speed DIY projects.

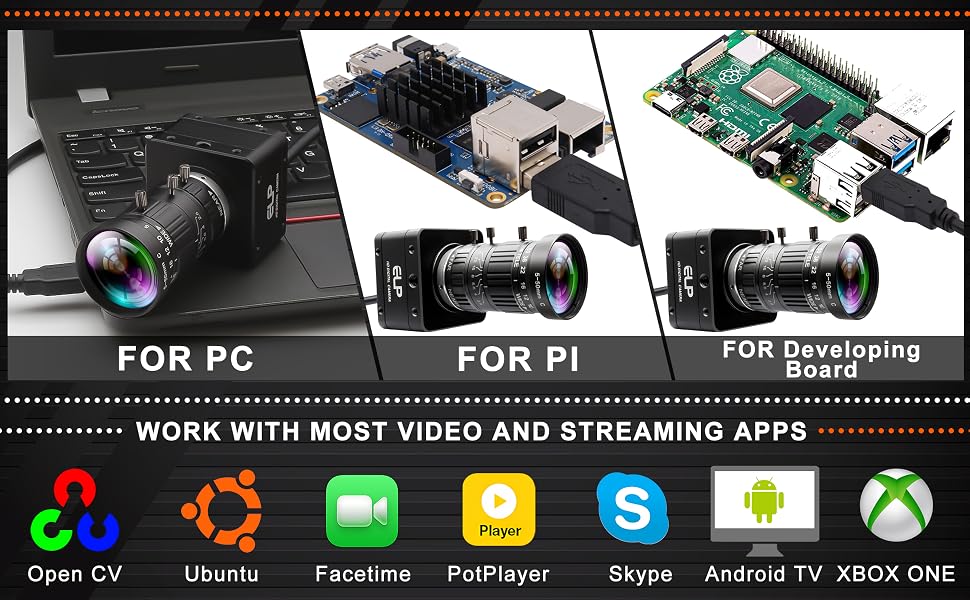

12MP USB Camera 4K@30fps Ultra HD USB Webam Support Multi Software & System, Support Raspberry PI, Development Board, Jeston Nano, etc.

Support Multi System & Software

-No driver required, plug and play

– Support Live Streaming Software, Skype, Zoom, Facetime, Youtube.

– Support many APPs and software, Amcap, OpenCV, PC default webcam software, VLC, V4L2.

– Compatible with many operating systems, including Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS.

12MP USB Camera High Resolution with CS Mount 10X 5-50mm Varifocus Lens USB Webcam UVC USB3.0 4K Golf Swing Video Lightburn Camera

Detailed Features：

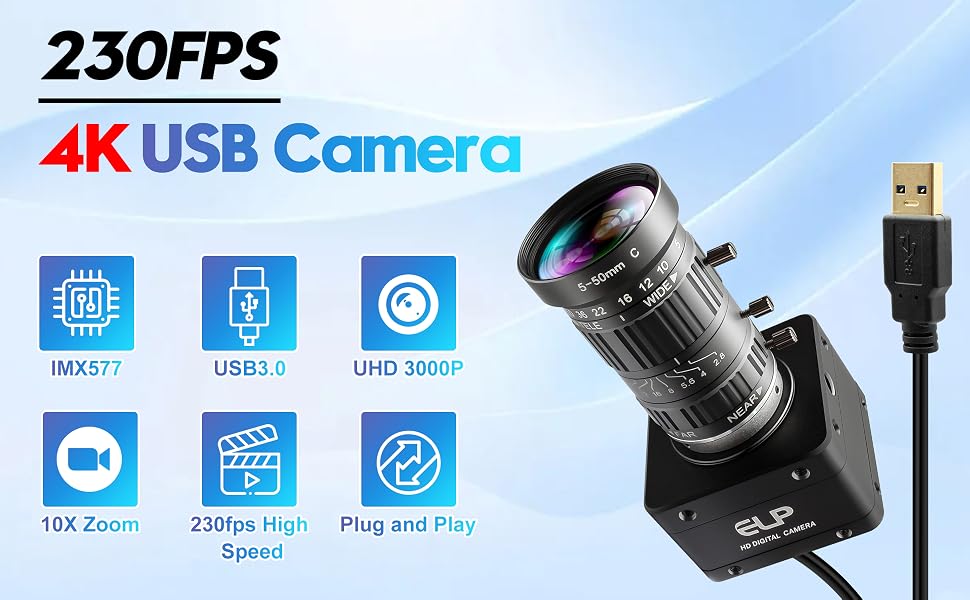

12MP High Resolution USB Webcam with IMX577 (1/2.3” ) Sensor Manual Zoom USB Camera Free driver Plug and Play.

1. High resolution 12MP USB Camera with IMX577 Sensor.

2. Super high resolution 4000×3000@ 30fps high resolution.

3. UVC free driver, USB3.0/USB2.0 Plug and Play.

4. 1.5m Type C USB 3.0 cable.

5. With CS Mount, 5-50mm 10X Varifocus Close up Manual Lens.

6. Support different operating systems, compatible with different softwares

Customer ReviewsPriceMax ResolutionImage SensorLensCompression FormatMini IlluminationMax Frame RatePlug and PlayUVC CompliantSupport OS
Add To BasketAdd To BasketAdd To BasketAdd To BasketAdd To BasketAdd To Basket
3.9 out of 5 stars153.0 out of 5 stars184.0 out of 5 stars423.8 out of 5 stars273.7 out of 5 stars203.9 out of 5 stars10
£175.99£175.99£165.99£165.99£132.99£132.99£152.00£152.00£103.00£103.00£91.00£91.00
4K/2160P4K/2160P4K/2160P4K/3040P5MP/1944P2K/1080P
CMOS imx415CMOS imx415CMOS imx415CMOS IMX577CMOS IMX317CMOS OV4689
MJPEG/YUY2/H.264MJPEG/YUY2/H.264MJPEG/YUY2MJPEG/YUY2MJPEG/YUY2MJPEG/YUY2
5-50mm Optical Zoom Lens2.8-12mm Optical Zoom Lens2.8-12mm Optical Zoom Lens3.6-10mm Optical Zoom Lens5-50mm Optical Zoom Lens5-50mm Optical Zoom Lens
0.2LUX0.2LUX0.2LUX0.1LUX0.2LUX0.1LUX
60fps60fps30fps120fps30fps260fps
✓✓✓✓✓✓
✓✓✓✓✓✓
WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above

  • High Frame Rate and High Resolution: 12MP USB 3.0 industrial camera with up to 4K@30fps and 1080P@230fps high-speed recording, ideal for dynamic scenes and fast movements.
  • 5-50mm 10X Manual Zoom: Flexibly adjustable focal length range for sharp images from various distances, suitable for diverse industrial applications.
  • USB-C Plug & Play: No additional driver installation required; simply connect via USB-C and it's ready to use immediately with Windows, Linux, Mac, and Android.
  • Robust and Stable Performance: Supports MJPEG & YUY2 video output, electronic shutter closure, and a wide operating temperature range of -10°C to 65°C for continuous operation.
  • Wide Range of Applications: Perfect for industrial image processing, security monitoring, 3D printer monitoring, machine inspection, and other professional projects.
›
SKU: B077TWVNNV
Weight: 0.01 Kilograms
Brand: ELP
Model: 011
Manufacture: SHENZHENSHIJIAZHIGUANGKEJIYOUXIANGONGSI
Origin: China

Product Description

ELP 12MP USB 3.0 High-Speed Camera, 4K@30fps 1080P@230fps, 10X Zoom Lens UVC Camera, Multi-Scene for Industrial Security 3D Printer, Plug & Play

Text reads '5-50mm 10X Optical Zoom Conferencing Video Camera' and '10X Optical Zoom'. Black video camera with lens shown alongside three demonstration photos of people using device for conferencing.Text reads '4K Ultra HD High Speed USB3.0 Camera', 'USB3.0 Speed up to 230fps', '1920x1080@230fps', '1920x1080@30fps'. Cylindrical silver camera with blue circuit board background showing video resolution specifications and frame rates.Text reads: '4K Ultra HD 2160p Image Quality', 'Max Resolution: 4000(H) x 3000(V)', 'USB 2.0 Camera', 'UHD HDMI 4 (2160p)', '1/3-inch CMOS Sensor', 'High Speed Triggerizers', '5-Step Iris Manual Zoom Lens'. Woman playing violin with technical camera specifications overlay on dark background.aplus content image

Detailed Features：

12MP High Resolution USB Webcam with IMX577 (1/2.3” ) Sensor Manual Zoom USB Camera Free driver Plug and Play.

1. High resolution 12MP USB Camera with IMX577 Sensor.

2. Super high resolution 4000×3000@ 30fps high resolution.

3. UVC free driver, USB3.0/USB2.0 Plug and Play.

4. 1.5m Type C USB 3.0 cable.

5. With CS Mount, 5-50mm 10X Varifocus Close up Manual Lens.

6. Support different operating systems, compatible with different softwares

ELP 4K USB3.0 HDMI USB Camera Manual Zoom 5-50 mm 10X Webcam 4K 60fps PC Came… ELP HDMI 4K Camera 60fps High Speed Webcam USB 3.0 HDMI Simultaneous Output P… ELP 4K HDMI USB Camera Wide Angle 2.8-12 mm Varifocal Focus Lens Webcam Close… ELP 120fps USB Camera 4K High Speed ​​USB Webcam Golf Swing Cam 12Megapixels … ELP 4K Web Camera, Ultra HD IMX317 USB Conference Varifocal Webcam with 5-50m… ELP USB Camera 1080P High Speed 260fps 5-50mm 10X Optical Zoom Lens 2MP USB W…
Customer Reviews 3.9 out of 5 stars153.0 out of 5 stars184.0 out of 5 stars423.8 out of 5 stars273.7 out of 5 stars203.9 out of 5 stars10
Price £175.99£165.99£132.99£152.00£103.00£91.00
Max Resolution 4K/2160P 4K/2160P 4K/2160P 4K/3040P 5MP/1944P 2K/1080P
Image Sensor CMOS imx415 CMOS imx415 CMOS imx415 CMOS IMX577 CMOS IMX317 CMOS OV4689
Lens MJPEG/YUY2/H.264 MJPEG/YUY2/H.264 MJPEG/YUY2 MJPEG/YUY2 MJPEG/YUY2 MJPEG/YUY2
Compression Format 5-50mm Optical Zoom Lens 2.8-12mm Optical Zoom Lens 2.8-12mm Optical Zoom Lens 3.6-10mm Optical Zoom Lens 5-50mm Optical Zoom Lens 5-50mm Optical Zoom Lens
Mini Illumination 0.2LUX 0.2LUX 0.2LUX 0.1LUX 0.2LUX 0.1LUX
Max Frame Rate 60fps 60fps 30fps 120fps 30fps 260fps
Plug and Play ✓ ✓ ✓ ✓ ✓ ✓
UVC Compliant ✓ ✓ ✓ ✓ ✓ ✓
Support OS WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above
