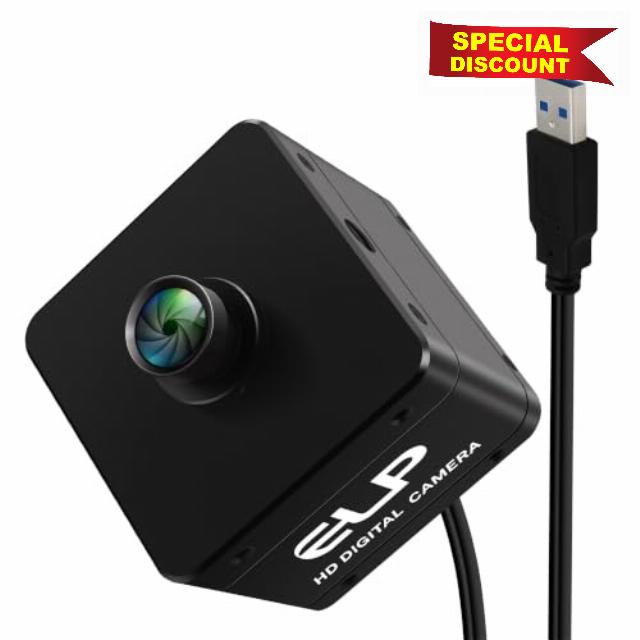

ELP 200fps Global Shutter USB 3.0 Camera, 1920×1200@120fps

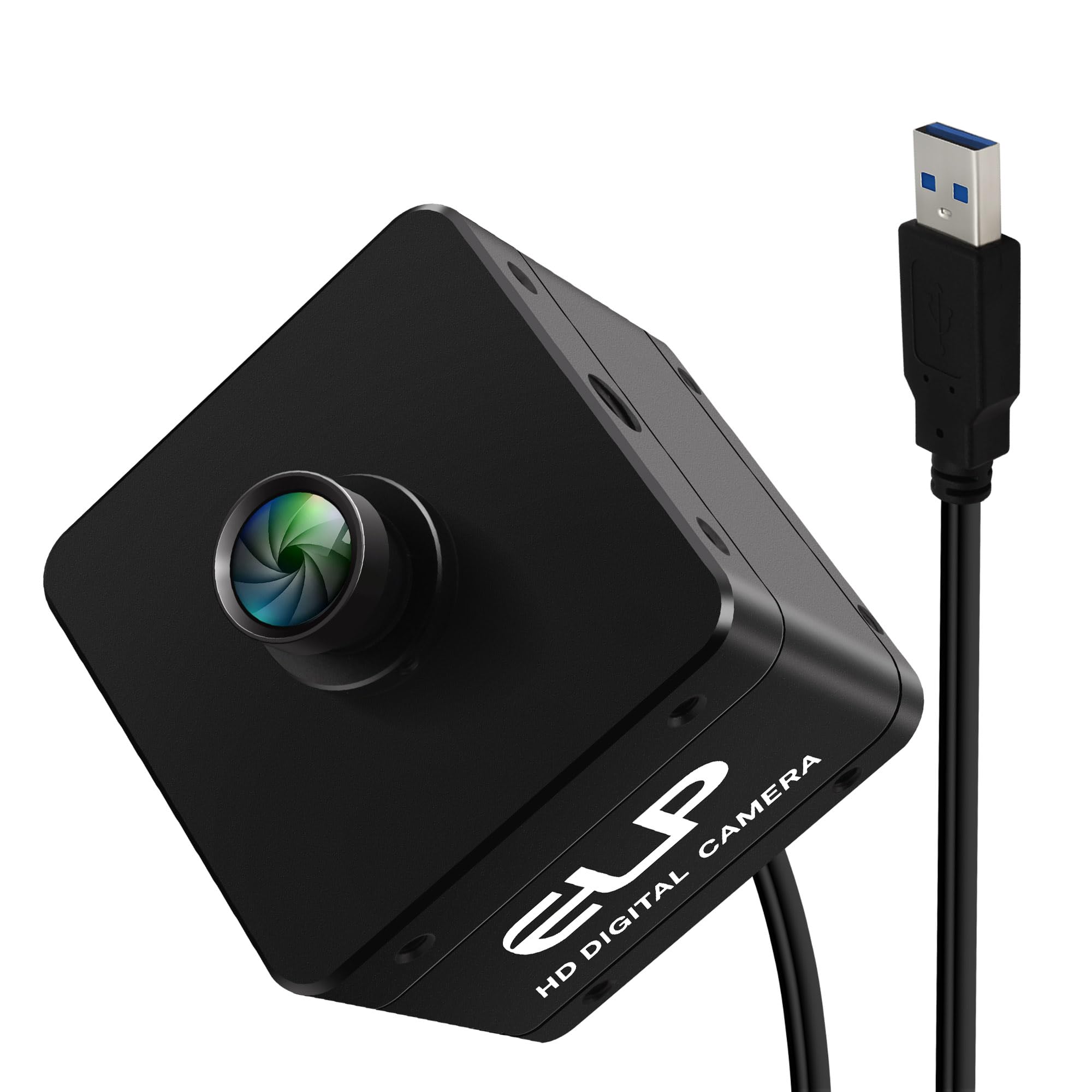

ELP 200fps Global Shutter USB 3.0 Camera

ELP 200fps Global Shutter USB 3.0 Camera, 1920×1200@120fps HD Webcam with 75° HFOV Lens without Distortion, UVC Plug & Play for Motion Capture, Compatible with Windows, Mac and Linux

ELP 2.3MP Global Shutter USB 3.0 Camera, 120FPS/200FPS High Speed Plug and Play for 3D Printer, Golf Swing Analysis & Industrial Machine Vision

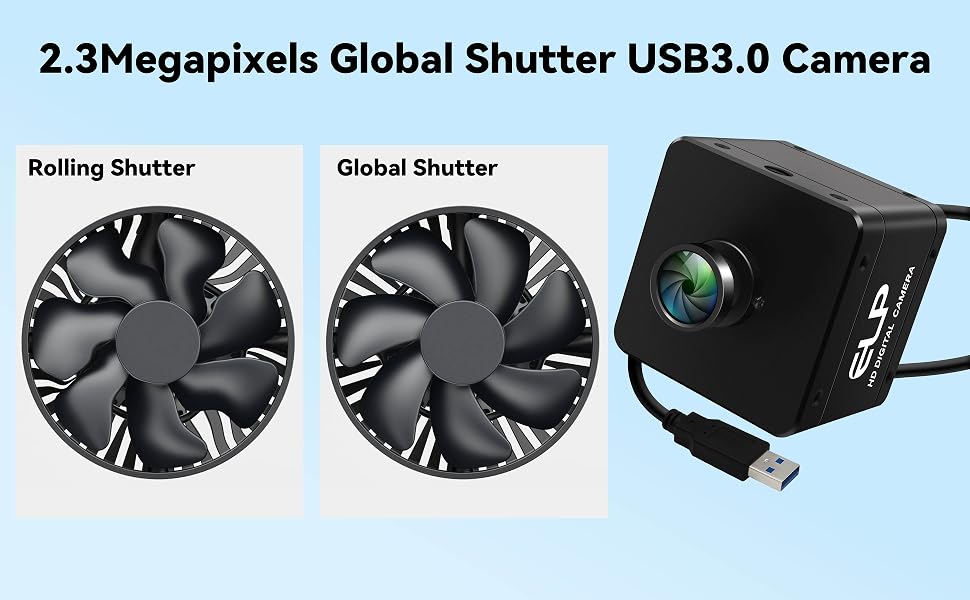

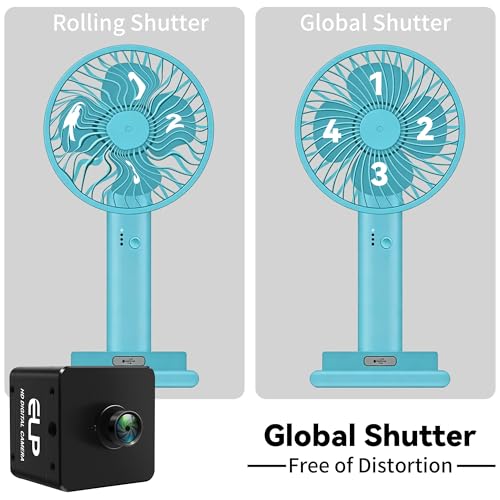

Global Shutter Technology：Eliminates motion blur, captures full-frame instantaneous exposure for fast-moving objects.

Ultra High Frame Rate：Max 120FPS/200FPS high-speed recording for precise motion analysis and industrial shooting.

Premium AR0234 Sensor：1/2.6 inch color sensor delivers 1920x1200P high resolution and stable imaging.

USB3.0 High-Speed Transmission：Supports MJPEG/YUYV dual formats, smooth high-definition video output.

Full Image Parameter Adjustable：Custom exposure, brightness, contrast, white balance, gamma for all lighting conditions.

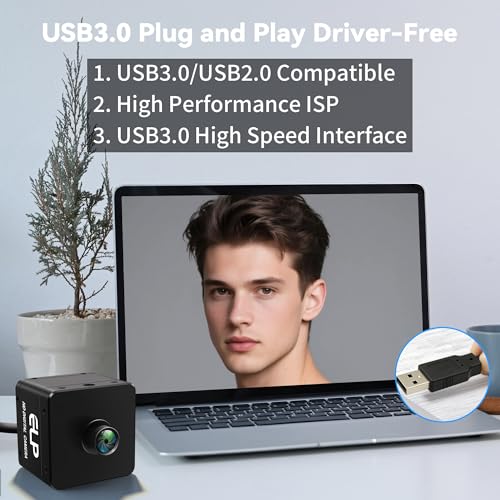

UVC Plug & Play：Driver-free, OTG supported, compatible with Windows Linux Mac Android Raspberry Pi.

UVC Plug and Play Global Shutter Camera, USB3.0 120/200FPS 1920×1200 AR0234 Sensor, HFOV 75° No Distortion Lens Works with Windows Linux Mac Android

ELP 2.3MP Global Shutter USB 3.0 Camera features AR0234 sensor, max 1920×1200 resolution and up to 120FPS/200FPS high frame rate for distortion-free fast motion capture. Built with HFOV 75 degree no distortion lens and adjustable image settings, it supports MJPEG & YUY2 formats. Plug and play design works with Windows, Linux, Mac OS and Android. Wide temperature tolerance ensures stable performance for 3D printing, motion analysis and industrial machine vision.

120FPS 200FPS High Speed Global Shutter USB3.0 Camera, ELP 1920×1200 AR0234 Webcam with 75° Distortion-Free Lens, Multi OS Compatible

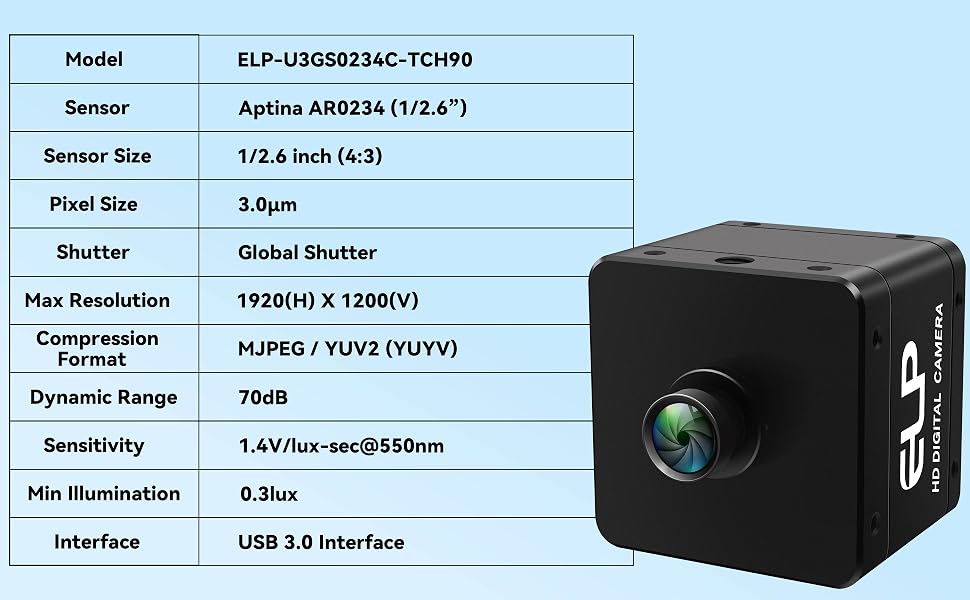

2.3MP Global Shutter Color USB3.0 Cameras

Sensor: 1/2.6 Inches AR0234 Sensor

Shutter Type: Global Shutter

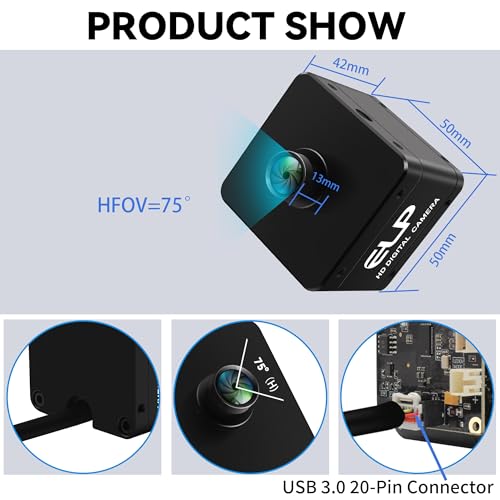

Interface & Connector: USB 3.0 20-PIN Connector

Max Resolution: 1920(H) *1200 (V)

Default Resolution:1920(H) *1200 (V)

Dynamic Range:70 dB

Compression format:MJPEG/YUV2(YUYV)

Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure

Power Supply ：USB3.0 20-Pin Power Supply

Operating Voltage： DC 5V

Working Current：165mA- 210mA

Working Temperature: -10°C to 70°C, Storage Temperature：-20°C to 80°C

Operating System Request: Win10/Win11 etc. Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later , Android 4.0 or above with UVC

ELP USB3.0 Global Shutter Machine Vision Camera, 2.3MP AR0234 120/200FPS, MJPEG YUY2 Encoding for Industrial Inspection & Continuous Monitoring

Performance:

Resolution & Frame Rate under USB3.

1920×1200 MJPEG 120fps/YUY2 80fps 1920×1080 MJPEG 120fps/YUY2 80fps

1600×1200 MJPEG 120fps/YUY2 80fps 1280×960 MJPEG 120fps/YUY2 120fps

1280×720 MJPEG 200fps/YUY2 200fps 640×480 MJPEG 200fps/YUY2 200fps

512×512 MJPEG 120fps/YUY2 120fps

Resolution & Frame Rate under USB2.0

1920×1200 MJPEG 120fps/ YUY2 5fps 1920×1080 MJPEG 120fps/ YUY2 5fps

1600×1200 MJPEG 120fps/ YUY2 5fps 1280×960 MJPEG 120fps/ YUY2 5fps

1280×720 MJPEG 200fps/ YUY2 10fps 640×480 MJPEG 200fps/ YUY2 30fps

512×512 MJPEG 120fps/ YUY2 10fps

ELP Global Shutter USB 3.0 Webcam, 120FPS 200FPS High Speed 1920×1200 AR0234 Camera Plug and Play for 3D Printing and Motion Analysis

  1. Fully compatible with Windows, Linux, Mac, Android, and Raspberry Pi. UVC compliant and driver-free, simply plug and play for instant use.For PC & Devices
  2. Supports Android development boards, Raspberry Pi, and Jetson Nano.For Development Boards

  • USB 2.0 OTG interface
  • Works with popular streaming software: Skype, Zoom, FaceTime, YouTube, and more
  • Compatible with Amcap, OpenCV, VLC, V4L2, and default PC webcam software
  • Supports a wide range of systems: Windows, Linux, Android, Ubuntu, Mac OS, Raspberry Pi

200FPS Global Shutter High Speed USB3.0 Camera, Low Latency Camera for Golf Swing Analysis, 3D Printer & Scientific Research

1: If you encounter lighting issues during use: simply turn the knob at the bottom of the lens to adjust the aperture and control brightness. You may also turn the knob on the other end for manual focusing.

2: If you use this device for DIY projects such as 3D printer monitoring, please ensure the environment is well-lit.

3: This camera is extremely easy to install and compatible with all major platforms. The adjustable functions ensure you get the best angle and lighting for your needs.

4: Wide Compatibility for Multi Devices: Works seamlessly with laptops, Android devices, Raspberry Pi and more industrial or DIY platforms, ideal for machine vision, industrial monitoring, computer vision projects and home experimental applications.

Customer ReviewsPriceMax ResolutionImage SensorLensCompression FormatMini IlluminationMax Frame RatePlug and PlayUVC CompliantSupport OS
Add To BasketAdd To BasketAdd To BasketAdd To BasketAdd To BasketAdd To Basket
3.5 out of 5 stars333.5 out of 5 stars333.9 out of 5 stars403.8 out of 5 stars263.7 out of 5 stars204.1 out of 5 stars8
£175.99£175.99£165.99£165.99£132.99£132.99£152.00£152.00£103.00£103.00£91.00£91.00
4K/2160P4K/2160P4K/2160P4K/3040P5MP/1944P2K/1080P
CMOS imx415CMOS imx415CMOS imx415CMOS IMX577CMOS IMX317CMOS OV4689
MJPEG/YUY2/H.264MJPEG/YUY2/H.264MJPEG/YUY2MJPEG/YUY2MJPEG/YUY2MJPEG/YUY2
5-50mm Optical Zoom Lens2.8-12mm Optical Zoom Lens2.8-12mm Optical Zoom Lens3.6-10mm Optical Zoom Lens5-50mm Optical Zoom Lens5-50mm Optical Zoom Lens
0.2LUX0.2LUX0.2LUX0.1LUX0.2LUX0.1LUX
60fps60fps30fps120fps30fps260fps
✓✓✓✓✓✓
✓✓✓✓✓✓
WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above

  • 120/200fps Global Shutter High Speed： Built-in 1/2.6" AR0234 global shutter sensor, 1920×1200 max resolution. Up to 120fps full resolution & 200fps high-speed frame rate, no motion blur for fast object capture.

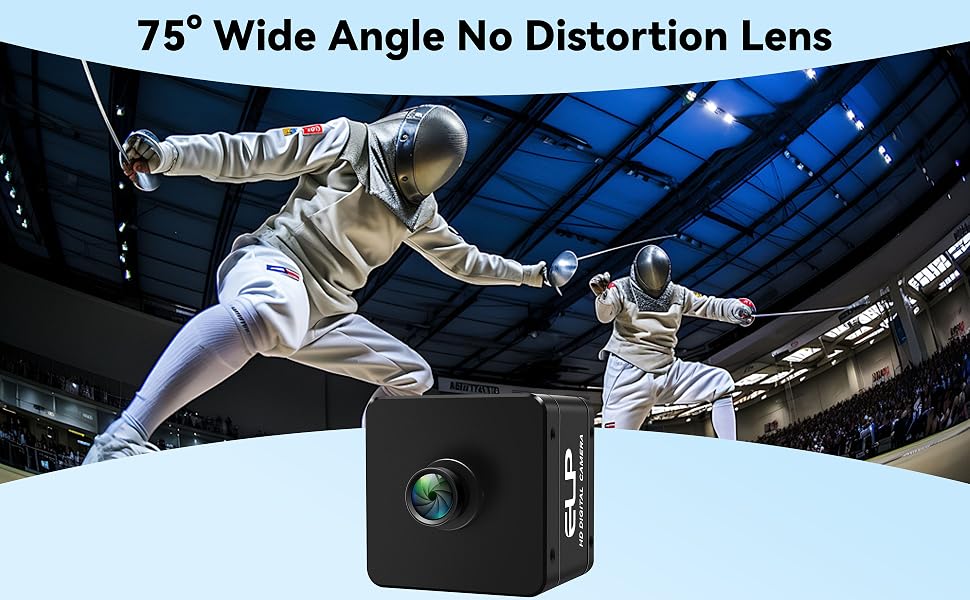

  • 75° Undistorted Wide Lens & Adjustable Image Settings： 75° HFOV distortion-free lens with 70dB dynamic range. Support MJPEG/YUY2 encoding; tweak exposure, white balance, sharpness and other image parameters freely.
  • Stable USB3.0 Low Latency Transmission： USB3.0 20-pin interface， USB 5V power supply, Adopts USB 3.0 for smooth data transmission, max resolution up to 1920×1200. Compatible with MJPEG and YUY2 formats, and maintains stable performance when connected via USB 2.0 as well.
  • Multi-scene Professional Machine Vision Camera： Built for long time continuous operation, delivering stable video output and clear imaging for golf swing analysis, 3D printer monitoring, industrial inspection，scientific motion capture projects and other high speed capture tasks.
  • UVC Plug & Play, Wide OS Compatibility： Driver-free UVC camera, works with Windows, Linux, Mac OS and Android. Stable running at -10℃~70℃ for long-hour industrial use.
›
SKU: B077SQVM1P
Weight: 0.01 Kilograms
Brand: ELP
Model: 032
Manufacture: SHENZHENSHIJIAZHIGUANGKEJIYOUXIANGONGSI
Origin: China

Product Description

ELP 2.3MP Global Shutter USB 3.0 Camera, 120FPS/200FPS High Speed Plug and Play for 3D Printer, Golf Swing Analysis & Industrial Machine Vision

aplus content imageaplus content imageText reads "FOR PC," "FOR PI," "Global Shutter," "WORK WITH MOST VIDEO AND STREAMING APPS," and lists compatibility logos. Computer cooling fan and hardware components displayed with compatibility and specification information.Text reads '120fps Global Shutter USB Camera Wide Application'. Black compact USB camera displayed with multiple application images showing sports, water, machinery, and motorsports photography.

1: If you encounter lighting issues during use: simply turn the knob at the bottom of the lens to adjust the aperture and control brightness. You may also turn the knob on the other end for manual focusing.

2: If you use this device for DIY projects such as 3D printer monitoring, please ensure the environment is well-lit.

3: This camera is extremely easy to install and compatible with all major platforms. The adjustable functions ensure you get the best angle and lighting for your needs.

4: Wide Compatibility for Multi Devices: Works seamlessly with laptops, Android devices, Raspberry Pi and more industrial or DIY platforms, ideal for machine vision, industrial monitoring, computer vision projects and home experimental applications.
