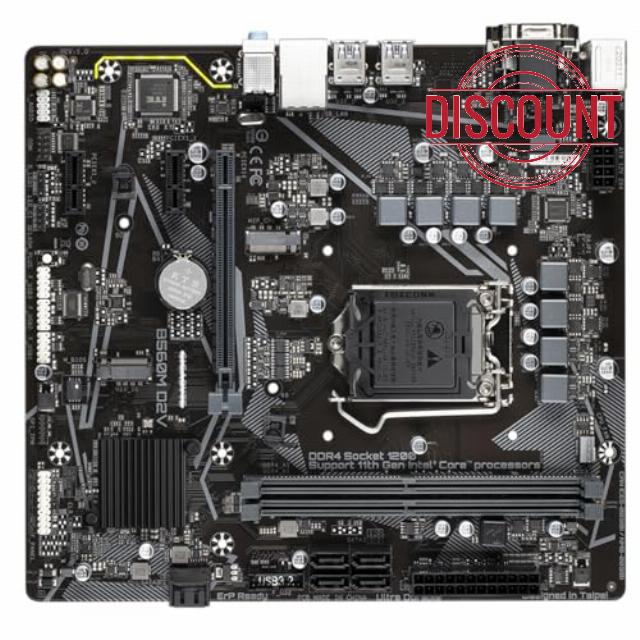

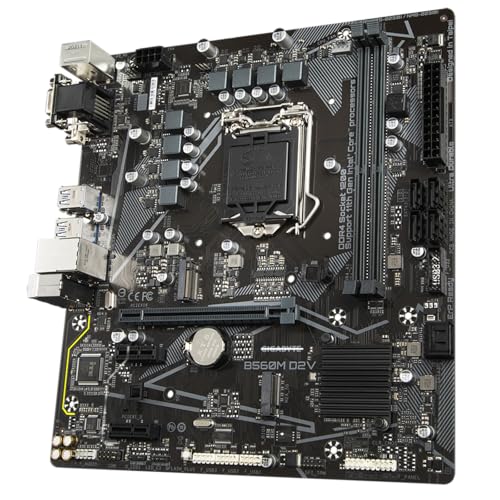

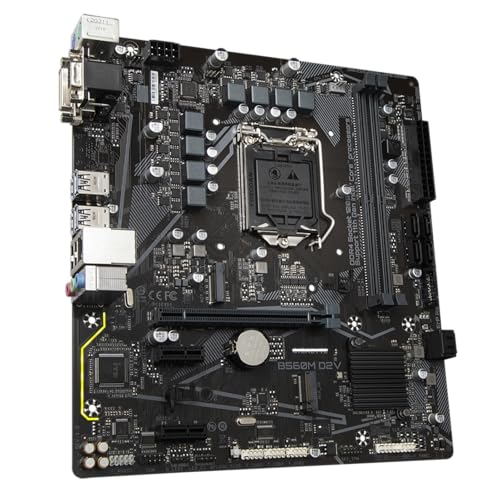

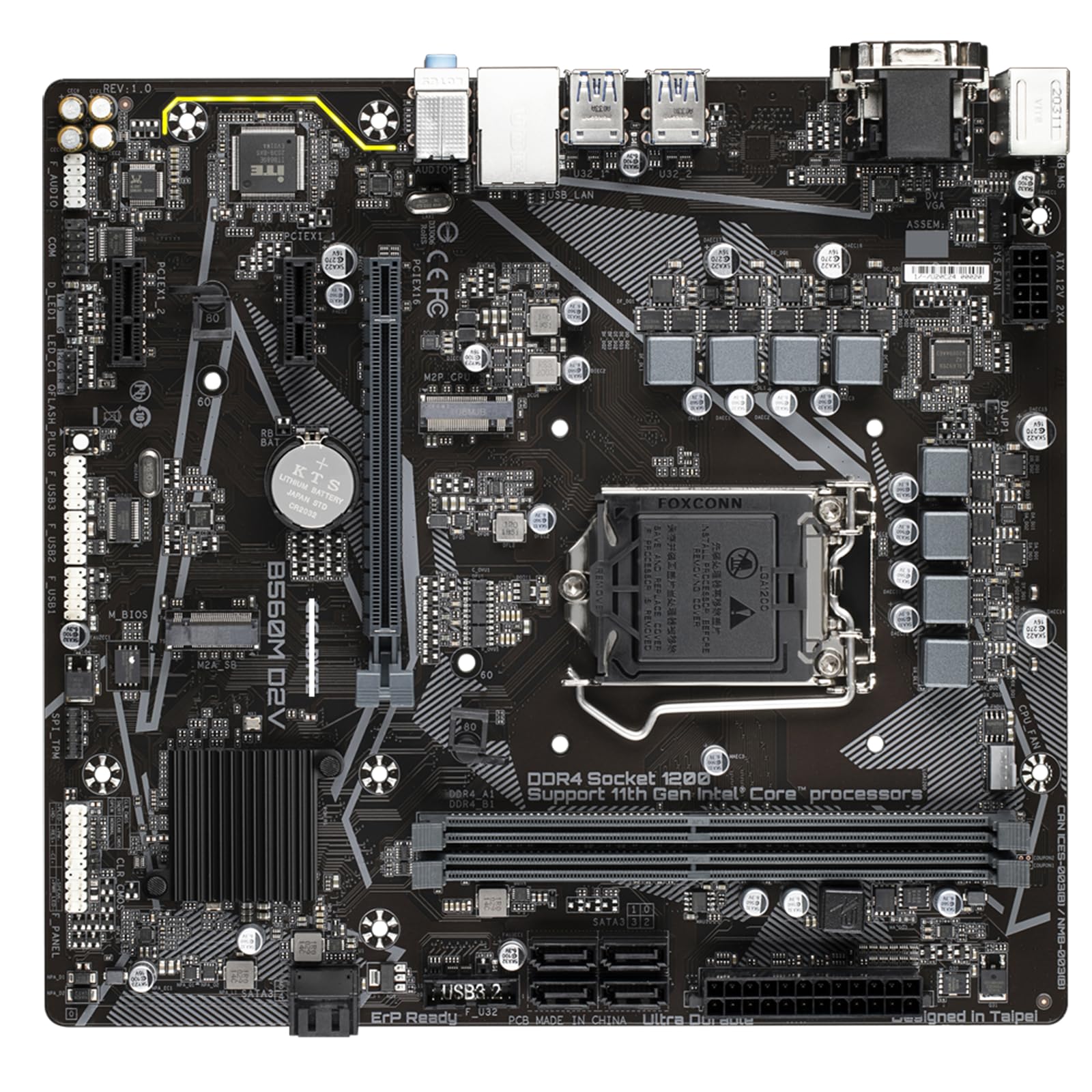

Motherboard Fit for GIGABYTE B560M D2V for 10/11th Gen Intel

Motherboard Fit for GIGABYTE B560M D2V for 10/11th Gen Intel LGA 1200 with I/O Back Plate Shield - Industrial Packaged，Non-Original Packaging

Motherboard Fit for GIGABYTE B560M D2V for 10/11th Gen Intel LGA 1200 with I/O Back Plate Shield – Industrial Packaged，Non-Original Packaging

This motherboard is genuine and original. It is packaged in an industrial style, meaning it does not have the original packaging style. The package only contains the motherboard and the I/O shield. We recommend that you have some relevant knowledge before installing this product alone. Otherwise, please have a professional do the installation. CPU LGA1200 package: 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors* * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family. L3 cache varies with CPU Chipset Intel B560 Express Chipset Memory 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channe LAN Realtek GbE LAN chip (1 Gbit/100 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note) 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2) (The PCIEX1 slot conforms to PCI Express 3.0 standard.) Storage Interface CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0×4/x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. Intel Optane Memory Ready * System acceleration with Intel Optane Memory can only be enabled on the M2P_CPU connector and with an 11th Generation Intel processor installed. USB Chipset: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: 8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. Back Panel Connectors 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x D-Sub port 1 x DVI-D port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks I/O Controller iTE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center *Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software Norton Internet Security (OEM version) Realtek 8118 Gaming LAN bandwidth Control Utility Operating System Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm

  • This motherboard is genuine and original. It is packaged in an industrial style, meaning it does not have the original packaging style. The package only contains the motherboard and the I/O shield. We recommend that you have some relevant knowledge before installing this product alone. Otherwise, please have a professional do the installation.
  • CPU: LGA1200 package: 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors* * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family. L3 cache varies with CPU Chipset: Intel B560 Express Chipset
  • Memory: 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
  • Expansion Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note) 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2) (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
  • Storage Interface: CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0×4/x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel Optane Memory Ready * System acceleration with Intel Optane Memory can only be enabled on the M2P_CPU connector and with an 11th Generation Intel processor installed.
›
SKU: B0F7RBVNTR
Dimensions: 24.1L x 22.1W x 5.1H centimetres
Brand: Generic
Model: B560M D2V
Manufacture: GIGA
