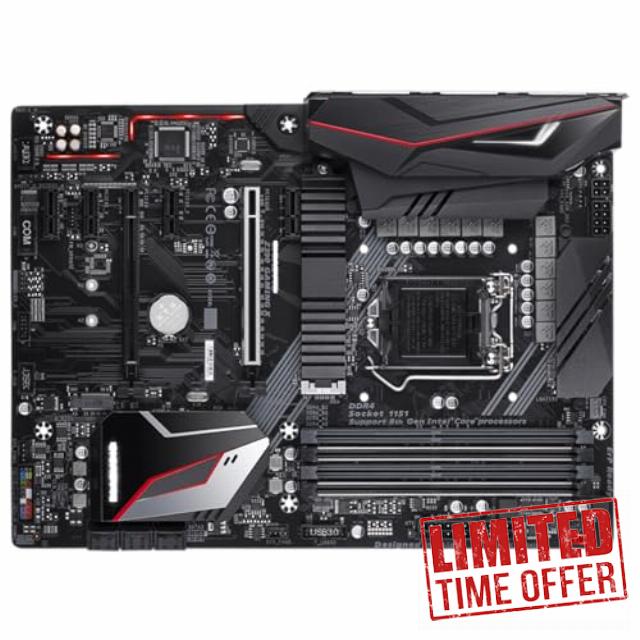

Motherboard Fit for GIGABYTE Z390 Gaming X for 8/9th Gen

Motherboard Fit for GIGABYTE Z390 Gaming X for 8/9th Gen Intel LGA 1151 - Industrial Packaged，Non-Original Packaging

Motherboard Fit for GIGABYTE Z390 Gaming X for 8/9th Gen Intel LGA 1151 – Industrial Packaged，Non-Original Packaging

This motherboard is genuine and original. It is packaged in an industrial style, meaning it does not have the original packaging style. The package only contains the motherboard and the I/O shield. We recommend that you have some relevant knowledge before installing this product alone. Otherwise, please have a professional do the installation. CPU Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package L3 cache varies with CPU Chipset Intel Z390 Express Chipset Memory 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory** ** Please note that the support for system total memory size depends on the CPU installed. Dual channel memory architecture Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory of 1 GB Actual support may vary by CPU. Audio Realtek ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN Intel GbE LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 4 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) Multi-Graphics Technology Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. Intel Optane Memory Ready USB Chipset: 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel 7 x USB 3.1 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x Thunderbolt add-in card connector 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x HDMI port 1 x USB 3.1 Gen 2 Type-A port (red) 5 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks I/O Controller iTE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Ambient LED AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install Bundled Software Norton Internet Security (OEM version) cFosSpeed Operating System Support for Windows 10 64-bit Form Factor ATX Form Factor; 30.5cm x 22.5cm

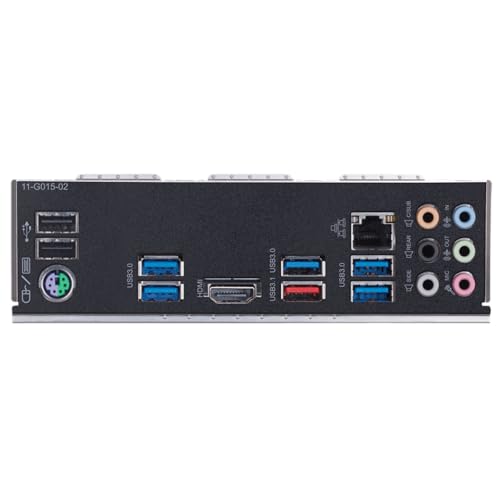

  • This motherboard is genuine and original. It is packaged in an industrial style, meaning it does not have the original packaging style. The package only contains the motherboard and the I/O shield. We recommend that you have some relevant knowledge before installing this product alone. Otherwise, please have a professional do the installation.
  • CPU: Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package L3 cache varies with CPU Chipset: Intel Z390 Express Chipset
  • Memory: 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory** ** Please note that the support for system total memory size depends on the CPU installed. Dual channel memory architecture Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
  • Expansion Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 4 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)
  • Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel Optane Memory Ready
›
SKU: B0F7R19QDX
Dimensions: 30.5L x 22.6W x 5.1H centimetres
Brand: Generic
Model: Z390 GAMING X
Manufacture: GIGA
