Orange Pi RV2 2GB/4GB/8GB LPDDR4x RISC-V Single Board

Wi-Fi 5.0/Bluetooth 5.0

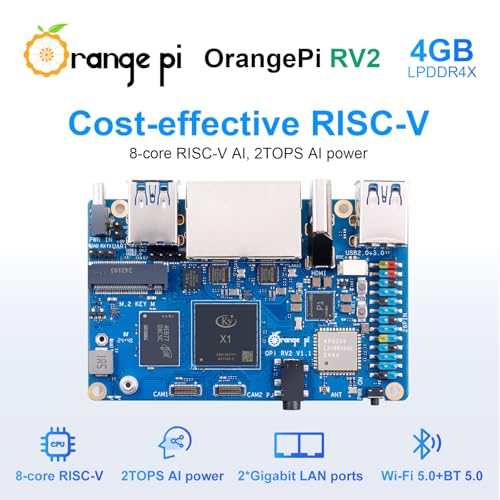

Orange Pi RV2 2GB/4GB/8GB LPDDR4x RISC-V Single Board Computer with 8-Core 64-Bit Processor, Wi-Fi 5.0/Bluetooth 5.0, Development Board Run Linux/Ubuntu/OpenHarmony (4GB)

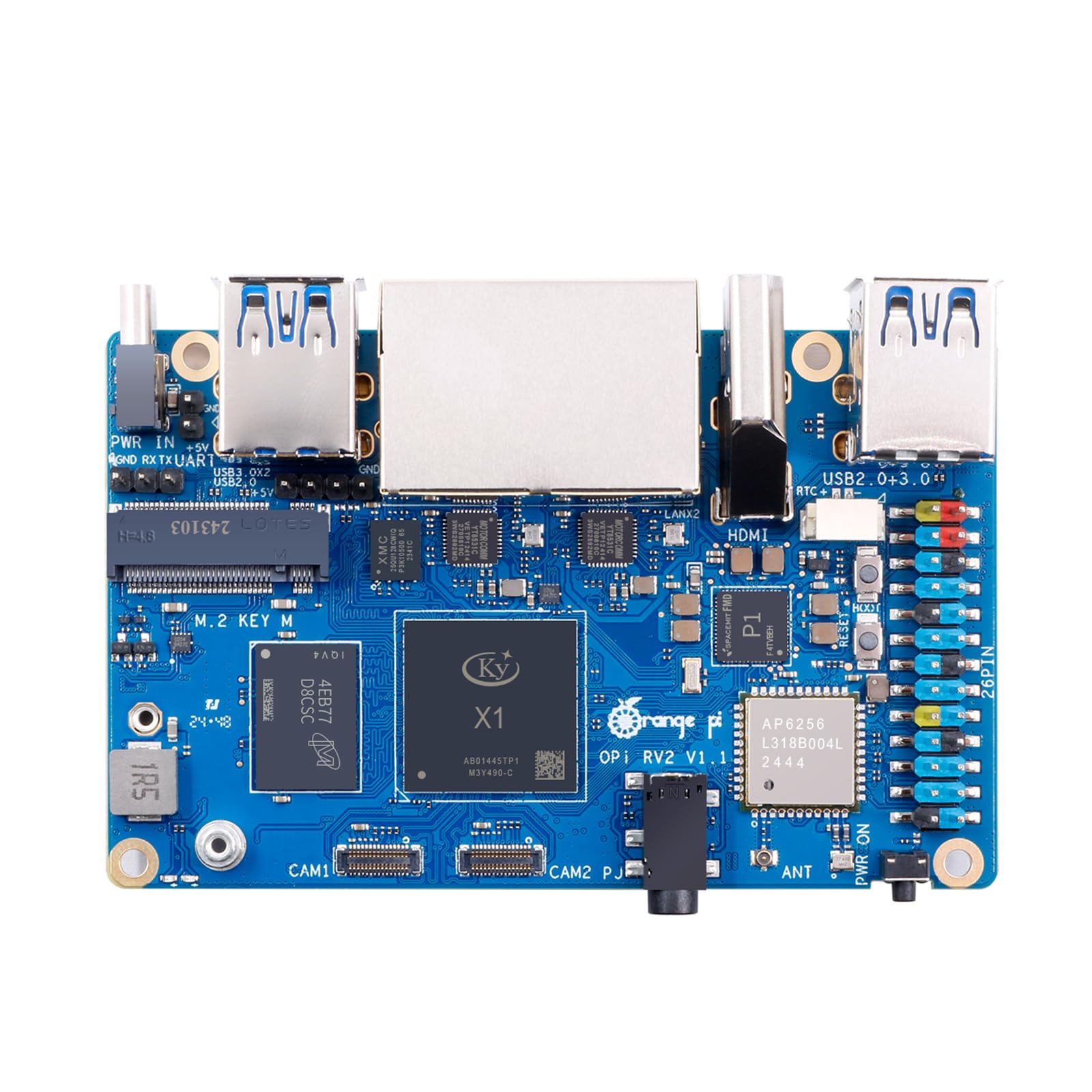

Hardware Parameters

CPU: Ky X1 8-core RISC-V AI CPU2TOPS AI power

Memory: LPDDR4X: 2GB/4GB/8GB optional

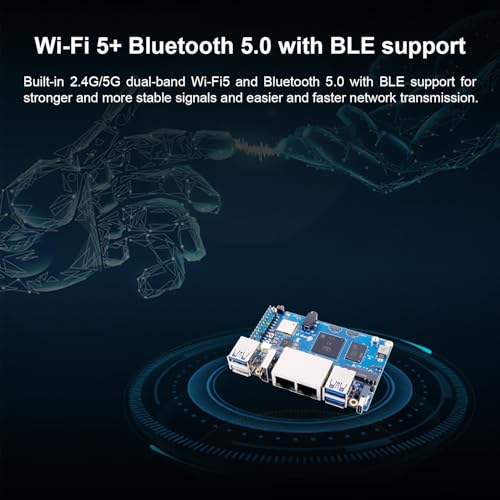

Wi-Fi + Bluetooth: Wi-Fi + Bluetooth 2-in-1 Module: AP6256Wi-Fi5.0+BT 5.0, BLE

Ethernet interface: 2* Gigabit Ethernet, PHY Chip: YT8531C-CA

Display: Supports dual-screen heterodyne display, up to 1920*1440@60fPS1* HDMI2.01* 4-lane MIPI DSI

Camera: 2x 4-lane MIPI CSI camera interface

USB: 1*USB2.0 HOST or DEVICE3*USB3.0 HOST1*USB2.0 HOST (4Pin header)

Audio: 3.5mm headphone jack audio input/outputHDMI audio output

Buttons: 1* BOOT, 1*RESET, 1 *PWR ON

RTC: 2Pin spare battery connector (Pitch=1.25mm)

26Pin: 26Pin function expansion interface, supports the following interface types:GPIO, UART, I2C, SPI, PWM, etc.

DEBUG: 3Pin debug serial port, 3.3V level

Power input/output: Power connector: 2Pin. Maximum 5V 1A output , such as connecting the fan.

Power supply: Type-C 5V 5A DC IN

Supported OS: Ubuntu24.04

PCB size: 89*56*1.6 mm

  • [High-Performance RISC-V Development Board]: Orange Pi RV2 features an octa-core RISC-V processor with integrated AI acceleration. It delivers 2.0 TOPS AI performance, with single-core CPU performance surpassing ARM A55 by over 30%.
  • [Supports AI Model Deployment]: Orange Pi RV2 provides AI computing power through CPU core integration, enabling fast AI model deployment and seamless compatibility with all major AI ecosystems, supporting various edge AI large models.
  • [Flexible Memory & Storage Options]: Equipped with 2GB/4GB/8GB LPDDR4X RAM and supports optional eMMC modules (32GB/64GB/256GB) for enhanced storage flexibility.

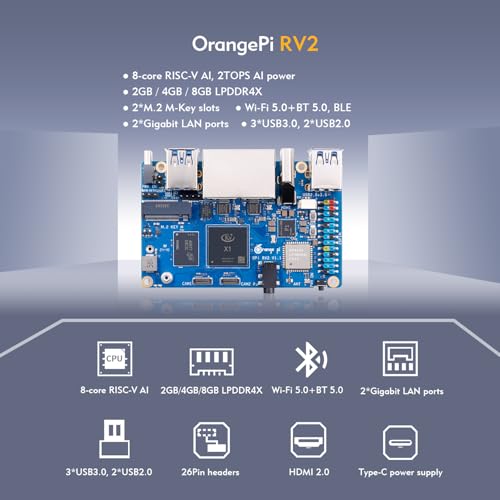

  • [Comprehensive Connectivity]: Orange Pi RV2 offers HDMI output, GPIO interface, USB 2.0 & 3.0, Gigabit Ethernet, 3.5mm headphone jack, and two M.2 M-Key slots (PCIe 2.0 2-Lane) for NVMe SSD expansion. And comes with Wi-Fi 5.0 + Bluetooth 5.0 (BLE) for seamless wireless connectivity.
›
SKU: B0DZCSJQPB
Brand: Orange Pi
Model: 4GB+No Power Supply
Manufacture: Orange Pi
