PortaPack H4M +r10c Kit with Antennas,3.2 Inch TFT 1MHz-6GHz

PortaPack H4M +r10c Kit with Antennas

PortaPack H4M +r10c Kit with Antennas,3.2 Inch TFT 1MHz-6GHz Professional Wireless Radio Transceiver ABS Shell,Capture Replay for Communication Radio Transceive

PortaPack H4M+ R10C Mayhem Edition | 1MHz–6GHz Wideband SDR Development Kit | Integrated 3.2” Touchscreen for Standalone Signal Analysis

Technical Overview

The PortaPack H4M+ R10C is a high-precision, open-source hardware platform engineered for sophisticated radio frequency analysis and development. By integrating a 3.2-inch matte touchscreen interface with optimized Mayhem firmware, this unit transforms the traditional SDR hardware architecture into a fully autonomous, field-ready instrument. It is designed for researchers, engineers, and developers requiring a versatile, high-sensitivity tool across a wide 1MHz to 6GHz spectrum.

Engineering Highlights

  • Standalone Operation: Built-in 3.2” touchscreen interface allows for complete signal analysis and data visualization without the overhead of external computer tethering.

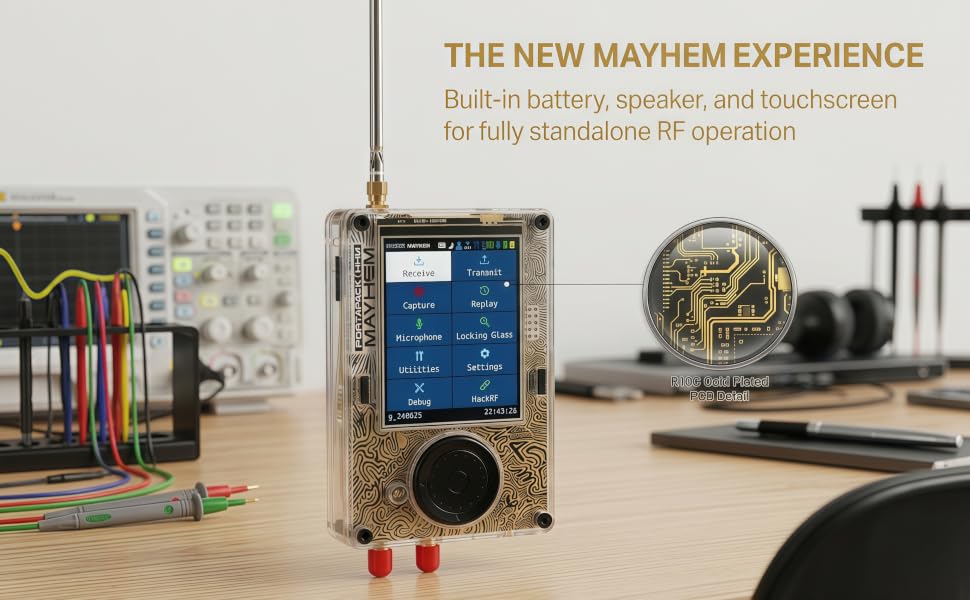

  • Hardware Precision: Built on the R10C hardware revision with high-quality gold-plated circuitry for superior signal integrity and reduced environmental noise.
  • Ready-to-Deploy Kit: A comprehensive development ecosystem including a high-gain 20dB LNA, a multi-antenna array for 1MHz–6GHz coverage, and a protective, field-durable enclosure.
  • Advanced Utility Suite: Pre-configured for real-time applications.

NEW FEATURES:

  • Added GPIO Port. For add-ons, extensions, and potential mods. This hasn't been in any previous version.
  • Added Power Button. Turn on/off. It helps protect battery from phantom drain.

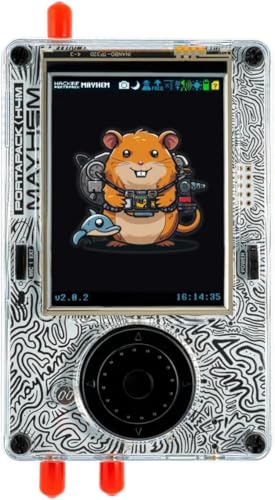

  • 3.2 Inch Matte LCD Touch Screen. Direct app interaction and visual interface.
  • A ratory encoder with push button. It helps navigate menus and adjust settings.
  • Improved charge speeds.

Advanced Wireless Protocol Analysis

Explore sub-GHz and microwave communications with built-in RF research utilities designed for signal monitoring, protocol study, and device interoperability testing across consumer, industrial, and smart device environments. Analyze modulation formats, study signal data, and evaluate wireless system behavior for development, diagnostics, and research applications.

Autonomous RF Field Audit

Decoupled Intelligence for Mobile Analysis. Powered by the native Mayhem interface, the system delivers real-time spectral analysis, automated signal search, and tactical map logging directly on the touchscreen.

Cross-Platform Ecosystem Integration

The Ultimate Open-Source Radio Hub. Featuring native FlipperTX integration for direct sub-GHz .sub signal analysis and seamless compatibility with the maker community. Paired with DragonOS and GnuRadio, it unlocks development capabilities.

What's in the Box?

  • 1x PortaPack H4M + HackRF + Shell
  • 1x USB Cable
  • 1x 20dB 50MHz – 6GHz LNA
  • 1x SMA Male/Male Cable
  • 1x 40MHz – 6GHz Telescopic Antenna
  • 1x 8dBi 2.4/5/5.8GHz Blade Antenna
  • 1x 12dBi 700MHz – 2700MHz Antenna
  • 1x 35dBi 700MHz – 2700MHz Antenna
  • 1x 5dBi 40MHz – 860MHz Antenna
  • A portable bag

Specifications

Display3.2 Inch 240 x 320 Matte LCD Touch Screen
ControlsArrow Keys, 360 Degrees Rotary Wheel, Select Buttons
AudioBuilt-in Speaker, 3.5mm Headphone/Microphone Jack, Built-in Microphone with Toggleswitch
Resolution8-bit Quadrature Samples (8-bit l and 8-bit Q)
InterfaceHigh Speed USB with USD Type C Connector
Power SupplyUSB Bus Power
Antenna Port50 ohms SMA Female Antenna Connector
Antenna Port Power50 mA at 3.3 V DC (optional)
Clock Input and Output PortSMA Female

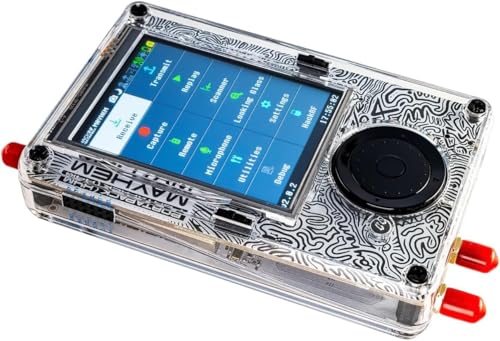

  • The PortaPack H4M is the first truly integrated, all-in-one PortaPack. Previous versions had usability, power and quality issues. The new H4M architecture has several new features and advantages. Likewise, it uses the latest revision of HackONE hardware and firmware, the Rev 10.
  • Matte Screen The improved matte-finished, high-visibility screen is legible even in outdoor environments. 2. GPIO Ports The GPIO port addition opens the door to add-on accessories, shields and sensors.
  • 3. Redesigned Power System A completely redesigned power system brings: Unified Power On/Off Switch New Advanced battery management architecture Fast Charging via USB-C Zero power-leaks or battery drain Internal / External Mic + Speaker Toggle Integrated sliding switch allows for rapid toggling between the internal and external microphone / headphones. 5. Redesigned navigation wheel The redesigned low-profile nagivation wheel + directional buttons allows for faster navigation, without risk of damage to the device while not in use.
  • Integrated Microphone The new on-board microphone allows the H4M to be used as a full voice transceiver device.
  • 1x PortaPack H4M ( Rev10 + PortaPack H4M) 1x MicroUSB Cable 1x 20dB 50MHz – 6GHz LNA 1x SMA Male/Male Cable 1x 2.4/5/5.8GHz Blade Antenna 1x GSM/3G/4G Antenna 1x 40MHz – 6GHz Telescopic Antenna 1x 700MHz – 2700MHz Antenna
›
SKU: B0GTJ1SP2M
Brand: generic
Model: H4M
Manufacture: generic
Origin: China

Product Description

PortaPack H4M+ R10C Mayhem Edition | 1MHz–6GHz Wideband SDR Development Kit | Integrated 3.2” Touchscreen for Standalone Signal Analysis

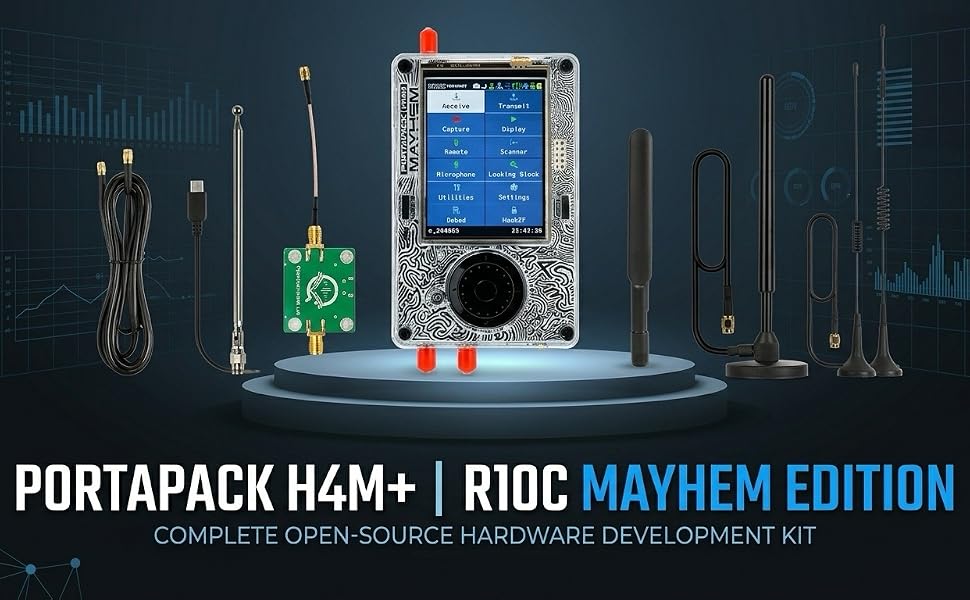

Text reads 'PORTAPACK H4M+' 'RODE' 'MAYHEM EDITION' 'COMPLETE OPEN SOURCE HARDWARE DEVELOPMENT KIT'. Central image shows professional audio recording equipment kit with microphone, circuit boards, cables, and accessories on illuminated platform.Hand holding electronic diagnostic device with blue display screen, surrounded by colorful coiled cables and testing equipment on workbench.aplus content image

What’s in the Box?

  • 1x PortaPack H4M + HackRF + Shell
  • 1x USB Cable
  • 1x 20dB 50MHz – 6GHz LNA
  • 1x SMA Male/Male Cable
  • 1x 40MHz – 6GHz Telescopic Antenna
  • 1x 8dBi 2.4/5/5.8GHz Blade Antenna
  • 1x 12dBi 700MHz – 2700MHz Antenna
  • 1x 35dBi 700MHz – 2700MHz Antenna
  • 1x 5dBi 40MHz – 860MHz Antenna
  • A portable bag

Specifications

Display 3.2 Inch 240 x 320 Matte LCD Touch Screen
Controls Arrow Keys, 360 Degrees Rotary Wheel, Select Buttons
Audio Built-in Speaker, 3.5mm Headphone/Microphone Jack, Built-in Microphone with Toggleswitch
Resolution 8-bit Quadrature Samples (8-bit l and 8-bit Q)
Interface High Speed USB with USD Type C Connector
Power Supply USB Bus Power
Antenna Port 50 ohms SMA Female Antenna Connector
Antenna Port Power 50 mA at 3.3 V DC (optional)
Clock Input and Output Port SMA Female
