SDR-V6 Shortwave Receiver Radio, Full-Band For DSP Digital

Full-Band For DSP Digital Demodulation

SDR-V6 Shortwave Receiver Radio, Full-Band For DSP Digital Demodulation, 4.3-Inch IPS screen, 3000MAh For HAM Aviation Monitoring(Silver)

Features:

* The SDR-V6 is a high-performance digital demodulation receiver based on a software-defined radio architecture. It employs Taylore quadrature mixer technology and a 192kHz real-time for spectrum display, supporting for Full-band reception (100kHz-149MHz). Featuring a 4.3-inch IPS touchscreen and a CNC-machined aluminum alloy chassis, it combines professional performance with a portable design, suitable for amateur radio, shortwave monitoring, and aviation band reception.

* for Full-band coverage.

* for frequency range: 100kHz-149MHz, supporting 1Hz precise step tuning.

* Supported modes: CW/AM/SSB(LSB/USB)/WFM/FM /aviation bands.

* Based on Taylore Quadrature Product Detector mixer technology, it achieves ultra-low noise zero-IF (ZIF) reception.

* For DSP digital demodulation combined with a 16- high-dynamic-range for ADC ensures signal fidelity.

* High-definition real-time for spectrum and waterfall plot.

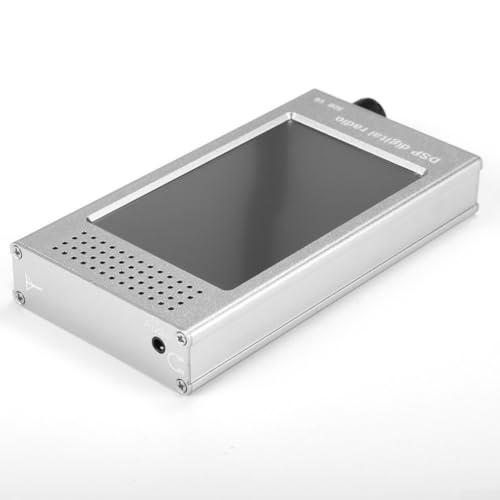

* 4.3-inch 800×480 IPS screen, supporting adjustable for spectrum bandwidth of 192kHz/128kHz/64kHz.

* Waterfall graph and waveform display modes, supporting multiple amplitude scaling levels (x1/x8/x64).

* Portable design and long life.

* Built-in 3000mAh / , providing 10-12 hours of life, Type-C fast charging interface.

Specifications:

Part Name: Radio

Material: Aluminum Alloy

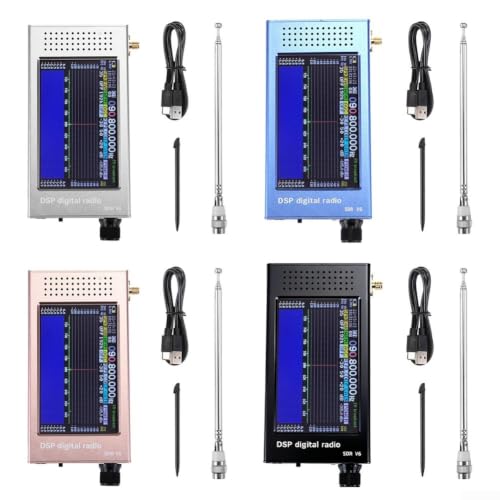

Color: Black, Silver, Blue, Pink (Optional)

Size: 140×74×22mm

for frequency Range: 100kHz-149MHz

Step: 1Hz/10Hz/100Hz/1kHz/10kHz

Display: 4.3-inch IPS Touchscreen (800×480)

Demodulation Modes: CW/AM/LSB/USB/WFM/FM

Interface: BNC Male (50Ω, Maximum Input -20dBm)

Reference for : TCXO 26MHz±0.5ppm

Audio Output: .5mm headphone jack (CTIA standard supported), 3W speaker

Storage Channels: 99 programmable channels (supports for frequency/mode/name)

Professional Operation Configuration

12 adjustable encoder parameters: Channel selection, for frequency step, volume adjustment, modulation mode, AGC (off/slow/medium/fast), reference level, backlight brightness, IF gain (-12~67dB), for spectrum style/bandwidth, waterfall area setting

Fixed Display for information: level, date and time, station for information, for spectrum bandwidth, input power

Application Scenarios: (as follows)

Amateur radio (HAM) communication

Shortwave broadcast reception and monitoring

Aviation band monitoring

Outdoor exploration and communication

Radio teaching and experiments

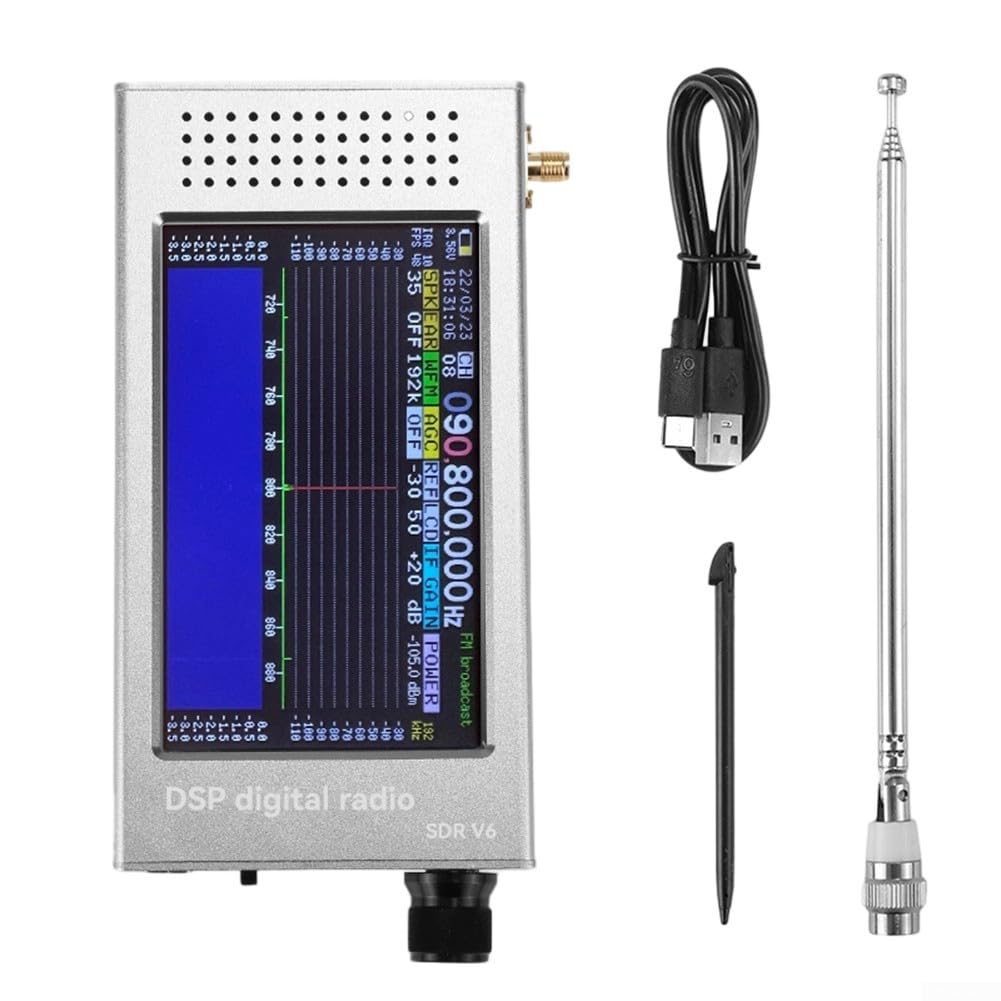

Package Contents:

1 x SDR-V6 main unit

1 x Retractable

1 x Type-C charging cable

1 x Stylus pen

1 x User manual

  • 【FULL-BAND COVERAGE】: for DSP Radio V5 supports 100kHz to 149MHz range for shortwave and aviation monitoring. This Shortwave Receiver Radio delivers precise 1Hz tuning steps for clear signal capture. Users gain for access to CW, AM, SSB, and for fm modes for for versatile communication needs without missing critical broadcasts.
  • 【ADVANCED DEMODULATION】: for Full-Band for DSP Digital Demodulation Radio utilizes Taylore quadrature mixer tech for ultra-low noise. The 1.10d Firmware Radio ensures high fidelity via 16-bit for adc processing for accurate audio output. Operators experience for crystal clear reception even in weak signal environments for reliable data acquisition.
  • 【PORTABLE ALUMINUM BUILD】: CNC-machined aluminum alloy housing offers robust protection against daily wear for long lasting use. Compact 140x74x22mm size fits easily into bags for outdoor exploration or field testing. Solid construction maintains performance stability while providing a for premium feel for professional users.
  • 【TOUCH DISPLAY UNIT】: 4.3-inch IPS screen with 800×480 resolution shows real-time for spectrum and waterfall plots clearly. Built-in 3000mAh for battery provides 10-12 hours of operation via Type-C fast charging interface. Nine programmable channels store favorite frequencies for quick for access during complex monitoring tasks.
  • 【 for versatile APPLICATION】: Perfect for amateur radio enthusiasts, educators, and engineers conducting signal analysis experiments. for Radio V5 with Options handles HAM communication and broadcast listening with ease. for ideal tool for teaching radio principles or tracking aviation bands in remote locations globally.
›
SKU: B0H7HXY85J
