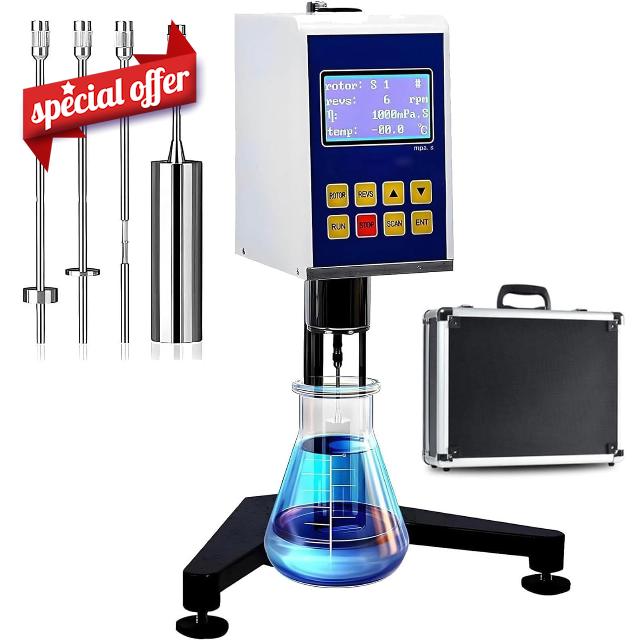

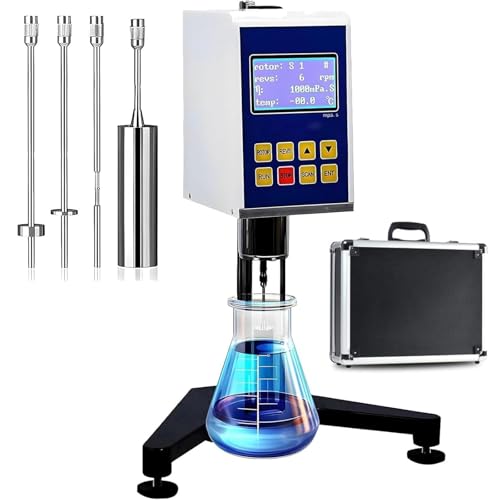

Digital rotary viscometer with 4 rotors, lab viscosity

Digital rotary viscometer with 4 rotors, lab viscosity fluidimeter, with lcd and data output, 6~60 r/min, 1 – 6,000,000mpa·s, for inks, paints, coatings, adhesives, greases 5s

Are inaccurate paint viscosity readings causing persistent issues in your spraying processes?

✔ This liquid viscometer (a type of rotational viscometer) is a precision digital measuring instrument specifically designed for the accurate determination of the viscosity of various liquids. This paint viscometer offers measurement ranges of 1–100,000 mpa·s, 1–2,000,000 mpa·s, or 1–6,000,000 mpa·s, and features an intuitive lcd screen that provides clear and easily readable measurements.

✔ Features:
1. High measurement sensitivity, effectively enhancing overall measurement accuracy.
2. Suitable for determining the absolute viscosity of newtonian fluids, and broadly applicable to a wide range of substances—including solvent-based adhesives, latex, biochemical products, paints, coatings, cosmetics, inks, pulp, food products, starch, and more.
3. Four different rotor specifications (no. 1, no. 2, no. 3, and no. 4), offering versatile options to suit various testing requirements.
4. Utilizes a helical gear lifting mechanism to effectively prevent slippage, ensuring a smooth and stable experimental process.

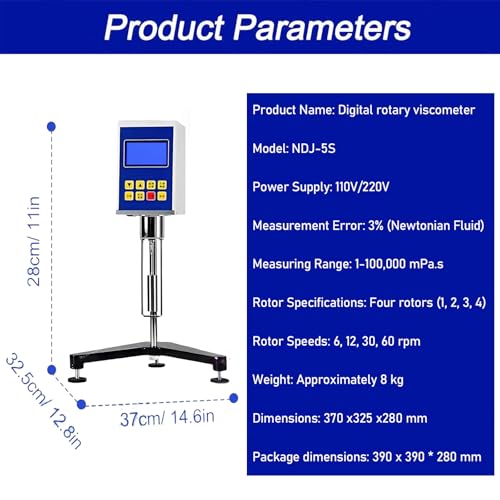

✔ Specifications:
Product models: Ndj-5s/8s/9s
Temperature compensation: Temperature measurement available via optional temperature sensor
Power supply: 220v ± 10v
Product name: Digital viscometer
Measurement error: ±3%(for newtonian fluids)

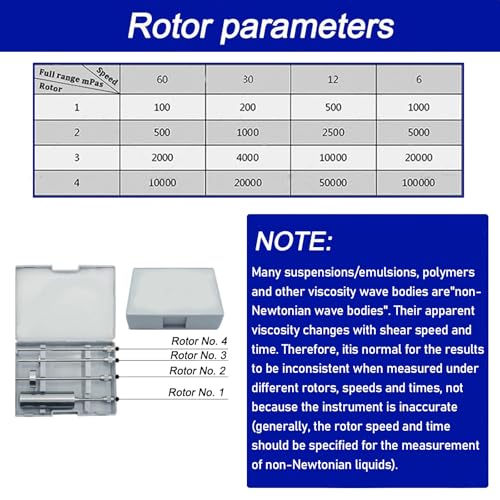

Rotor specifications: 4types of rotors—nos.1,2,3,4
Instrument speeds: 6rpm,12rpm,30rpm,60rpm
Measurement range: Ndj-5s(1 – 100,000mpa·s);ndj-8s (1 – 2,000,000mpa·s);ndj-9s (1 – 6,000,000mpa·s)
Sions: 37×32.5×28cm
Weight: 8kg

✔ Packing:
Main unit ×1
Rotors (nos. 1–4) ×1
Protective frame ×1
Base stand ×1
Support column ×1
Instrument storage case ×1
English manual ×1

✔ Service:
If you have any questions, please feel to contact us. We will respond within 24h.

• ✔【Working Principle】A synchronous motor rotates at a constant speed, connecting to a dial via a helical spring and a rotating shaft, thereby driving the rotor to spin. Due to the viscous drag effect of the liquid, the rotor experiences a torque directly proportional to the liquid's viscosity; this torque is detected and processed by a sensor, then converted into a viscosity value which is displayed on the screen.
• ✔【Digital Display & Intelligent Control】The viscometer features an intuitive LED digital display that clearly presents all key parameters, including rotor model, rotational speed, real-time viscosity, temperature, and torque percentage. Thanks to its sensitive touchscreen design, parameter configuration and data retrieval are remarkably simple, offering flexible and fluid oper-ation that significantly enhances both user experience and work efficiency.

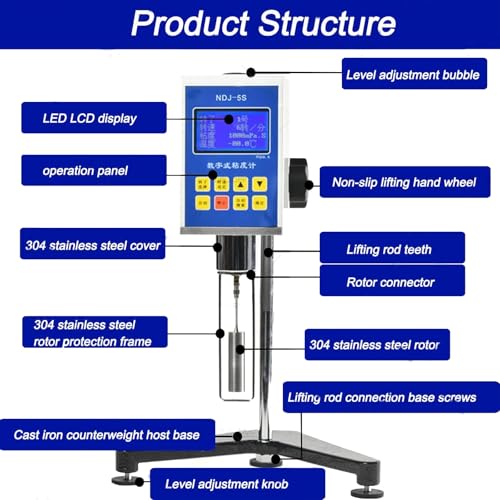

• ✔【Multiple Rotor Configurations】The viscometer comes equipped with four rotors, covering a wide range of viscosity measurements. With its high-quality lifting system and angle adjustment mechanism, users can utilize adjustment knobs to set the optimal measurement height and position; furthermore, the integrated bubble level and leveling screws ensure the instrument remains perfectly horizontal, effectively minimizing measurement errors.
• ✔【High-Precision Measurement】This viscometer delivers reliable viscosity measurement data for Newtonian fluids, boasting an accuracy of up to ±3%. The instrument features a built-in high-performance torque sensor and a robust spindle system, ensuring precise viscosity testing for a wide variety of fluids in both laboratory research and industrial production control settings.
• ✔【Wide Range of Applications】The viscometer is primarily used to measure the absolute viscosity of Newtonian fluids and the apparent viscosity of non-Newtonian fluids. Its application scope covers a diverse array of substances, including inks, coatings, adhesives, greases, fruit juices, dairy products, cosmetics, pharmaceutical preparations, biological fluids, rubber compounds, slurries, and paper pulp.
