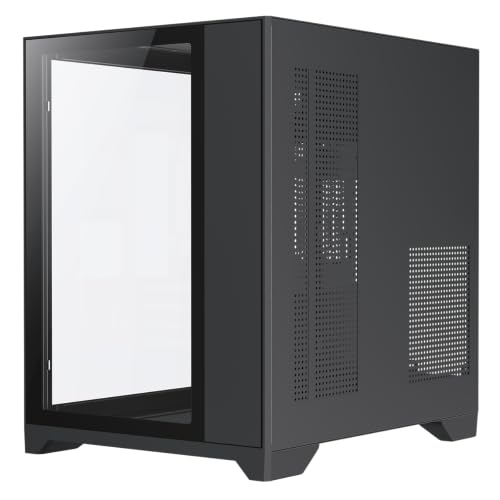

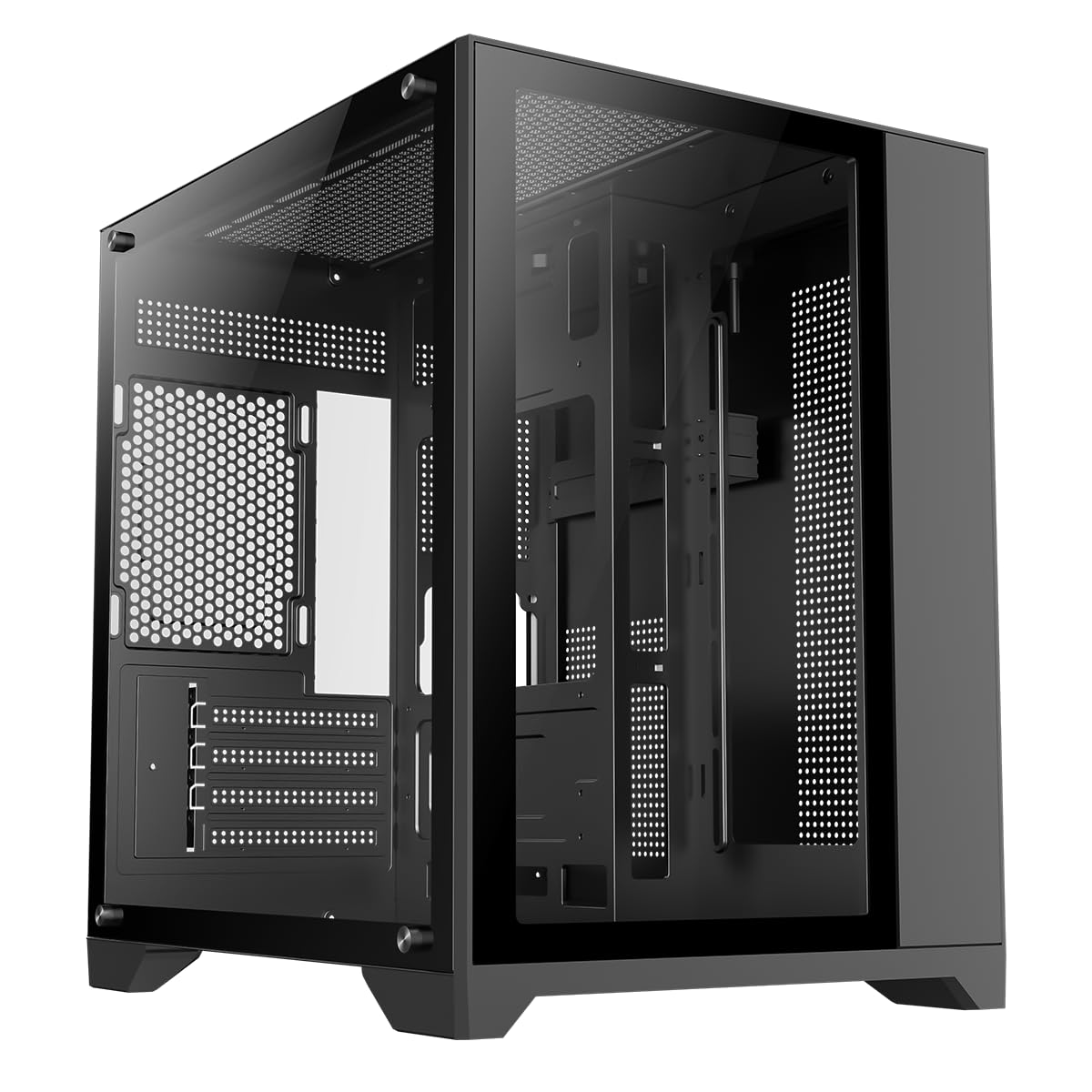

Infinity Mini Micro-ATX PC Gaming Case, Tempered Glass Side Panels, Black

Building on the success of the ATX Infinity, introducing the GameMax Mini Infinity, stand out with this stunning all black gaming case.

Using our years of experience, every detail from the material to the design has been carefully thought about. The modular and dynamic design of the Infinity ensures you can pack plenty of options inside, providing the platform to create a powerful PC Gaming Rig.

Raising the standards, this stylish Micro-ATX is constructed using a combination of tempered glass and metal mesh panels. This case has many features that make it the perfect choice to showcase spectacular high-end hardware. Easy to build in, the Infinity Mini can accommodate a total of 7 fans, 240mm water cooling support and that is not all, there is room for a 330mm graphics card and a CPU Cooler of 155mm.

The Mini Infinity is modern, sleek and sturdy and primed to offer the complete performance.

Specifications

Chassis Dimensions (Excluding Fascia / Panels): (W) 270 x (H) 350 x (D) 336mm
Power Supply:
PSU Location: Rear Right
PSU max. Length (mm): 190mm
Cooling Fan Support:
Additional Fan Support: Space For 2 x 120mm Fans (Mainboard Plate)
Water Cooling Support:
Top Supported Radiator(s): 120mm and 240mm
Rear Supported Radiator(s): 120mm
Other Supported Radiator(s): 120mm and 240mm (Mainboard Plate and Bottom)
Packaging Type: EPE Foam
Packaging Thickness: 17.50mm


Case Specifications


Form Factor: Micro ATX
Motherboard Support: Micro ATX, Mini ITX
PSU Support: Standard ATX
PSU Location: None
Gaming Case: Yes
Water Cooling: Water Cooling Ready!
Supported Radiator Size: 240mm
Supported Radiator Positions: Front, Top
Body Material: 0.84mmSPCC
Front Bezel Material: 4mm Tempered Glass & Metal
Side Panel: 4mm Tempered Glass
Internal Cable Management Depth: 95mm
External Bays:
Internal Bays: 1 x 3.5” Internal
2 x 2.5” Internal
Drive Bay Notes:
Expansion Slots: 4 x Full Size
Cooling Front: None
Cooling Top: Space For 2 x 120mm Fans
Cooling Rear: Space For 1 x 120mm Fan
Cooling Side: None
Cooling Bottom: Space For 2 x 120mm or 2 x 140mm Fans
Fan Controllers: 0 Fan Controllers, controlling up to
0 fans in total

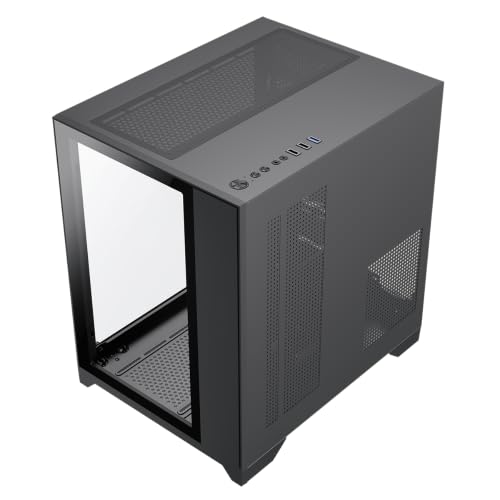

IO Ports: 1 x USB 3.0
2 x USB 2.0
1 x HD Audio
1 x Microphone

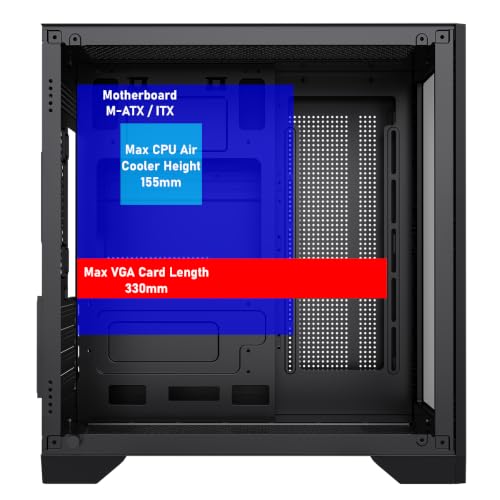

GPU Max Length: 330mm
CPU Cooler Maximum Height: 155mm
Front Bezel Colour: Black / Transparent
Body Colour: Black
System Cabinet Features:
PSU Included: No

• Full Black Design – Want something a little different then look at the GameMax Infinity Mini, the stylish outer chassis, manufactured from a combination of metal, mesh and tempered glass. The interior is made using the same smooth aesthetic as the exterior and finished in all black, this gaming case has a classic and iconic look.

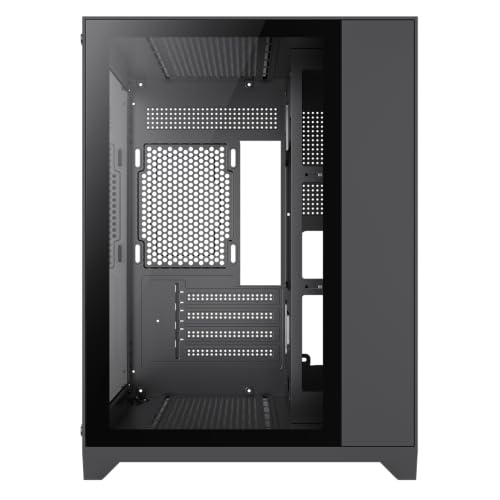

• Dual Chamber Layout – Different from traditional computer cases the Mini Infinity is designed using a dual chamber layout which provides plenty of space for your hardware, good airflow & ventilation, cable management and guarantees you can create a beautiful build. The dual chamber design allows you to situate your power supply, hard drives and cables in the rear chamber freeing up the main chamber for your fan and radiator mounting points creating an unrestricted view of your components that matter.

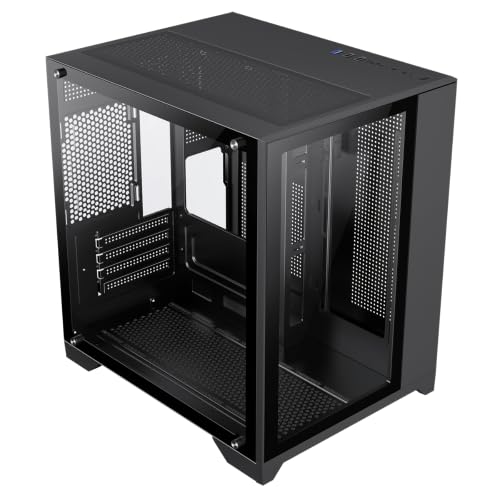

• 2 x Tempered Glass Panels – Designed with 4mm tempered glass front and side panels which are not only sturdy and durable and are excellent on the eye. Both are clear transparent windows perfect for showcasing your ARGB LED lighting and internal component construction.

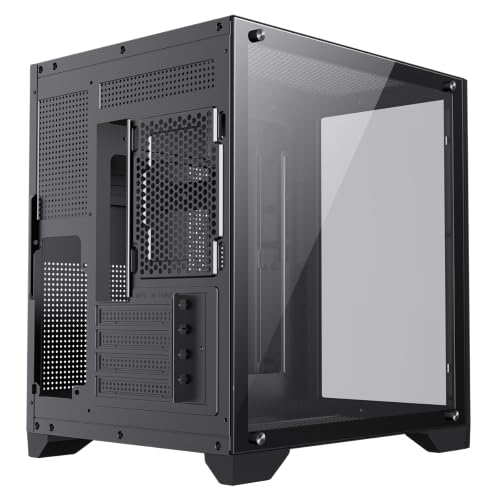

• Mesh Panel – The Mini Infinity has the aesthetics and it has the performance to match, the right side panel of the chassis is designed using metal mesh which is in 1mm in diameter to deliver massive airflow potential.
• Concentrated Airflow – Designed to improve airflow with the perfect all-round heat dissipation and room to fit a max of 7 fans and supports a 240mm water cooler.
• Removable Dust Filter – A removable dust filter included on the top and bottom of the Mini Infinity helps to prevent dust from getting into your build and is easy to clean.
