9.5mm (3/8″) ID Air Brake & Vacuum Servo Hose BSAU110a

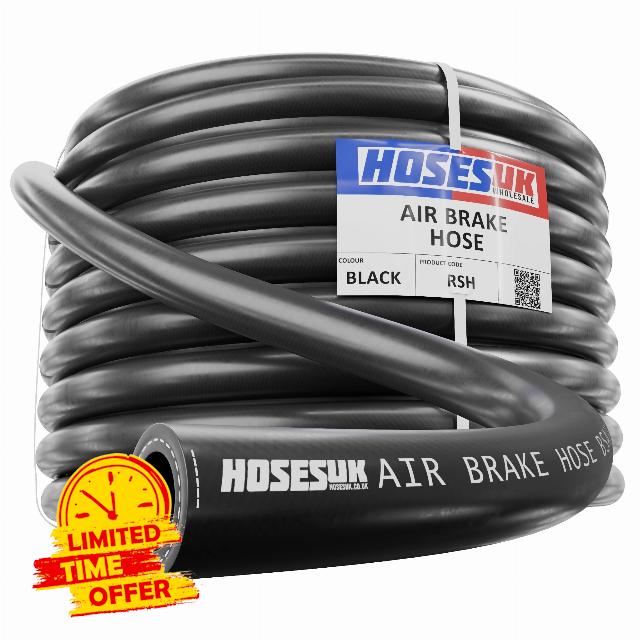

9.5mm (3/8") ID Air Brake & Vacuum Servo Hose BSAU110a SAEJ1402A 5 Metres HGV

9.5mm (3/8″) ID Air Brake & Vacuum Servo Hose BSAU110a SAEJ1402A 5 Metres HGV, lorry & trailer air lines | Car brake servo pipe work | Workshop compressor & pneumatic tools | Cut to any length

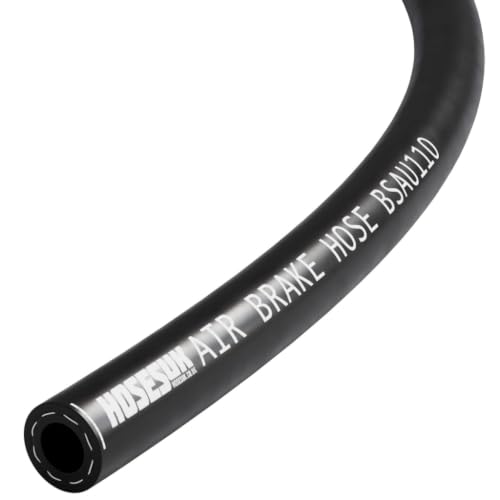

HOSES UK Air Brake & Vacuum Servo Hose

Built to BSAU110a and SAE J1402A

Reinforced rubber hose for commercial vehicle air brake lines, vacuum brake servo pipe work and workshop compressor air lines. Two bore sizes, 9.5mm (3/8 inch) and 13mm (1/2 inch), cut to length and priced per metre from 1 to 50 metres.

Where this hose is used

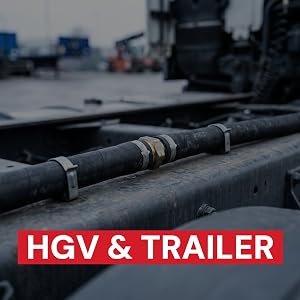

HGV and trailer air lines

Air brake lines on lorries, trucks, trailers, buses and coaches, clipped along the chassis and joined with brass fittings.

Brake servo pipe work

Vacuum servo lines on cars and light commercials, running from the inlet manifold to the servo on the bulkhead.

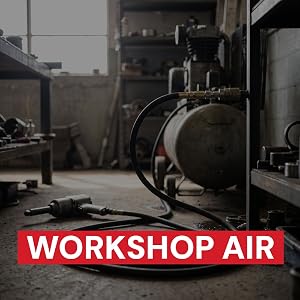

Workshop and garage air

Compressor feeds, pneumatic tools, tyre inflation and general low-pressure air transfer around the unit.

PriceMaterialInternal diameterWorking pressureTemperature rangeStandardsBest for
Add To Basket
£6.57£6.57— no data— no data— no data
Synthetic rubber, braided textile reinforcementSynthetic rubber, high tensile textile braidNitrile rubber, unreinforcedVMQ silicone
9.5mm and 13mm (3/8 and 1/2 inch)6mm to 19mm3mm to 10mm3mm to 10mm
16 barUp to 20 bar, depending on sizeLow pressure and gravity feed, not pressure ratedVacuum and low pressure, not pressure rated
-40C to +93C-20C to +85C-20C to +100C-40C to +200C
SAE J1402, BSAU110– no data– no data– no data
Commercial vehicle air brake systems, trailers and brake servo linesCompressed air lines for pneumatic tools, compressors and workshopsGravity feed fuel lines, petrol, diesel and oil transferVacuum, breather and boost signal lines

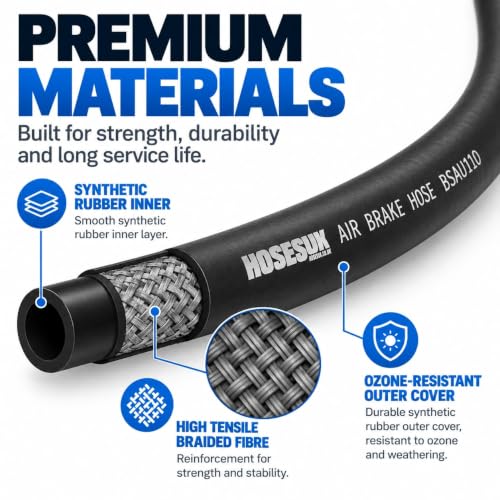

Technical specification

Application:Air Brake / Vacuum Brake Servo / Pneumatic
Inner tube:Smooth Black Synthetic Rubber
Reinforcement:High-Tensile Braided Fibre
Outer cover:Ozone-Resistant Synthetic Rubber

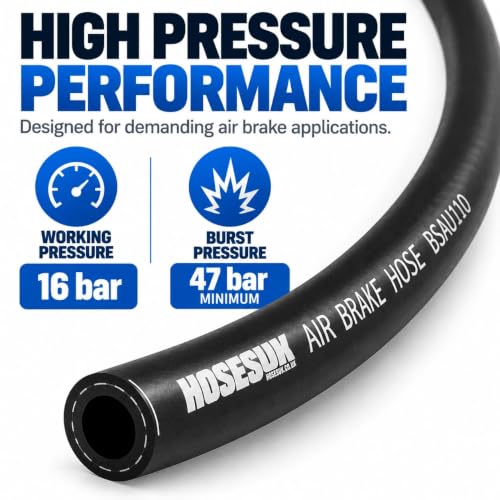

Working pressure:16 bar
Minimum burst pressure:47 bar
Temperature:-40°C to +93°C (peak +100°C)
Bore sizes:9.5mm and 13mm

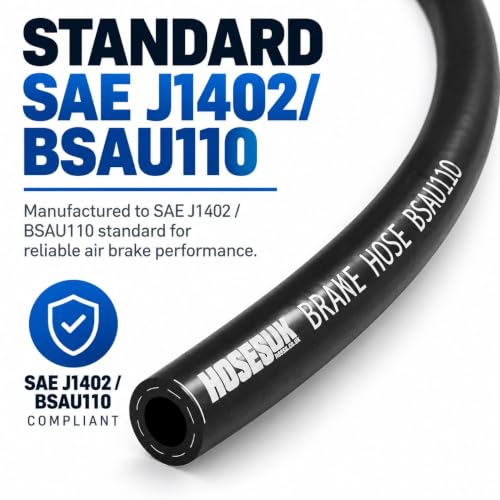

Standard:SAE J1402 / BSAU110

  • CUT TO THE LENGTH YOU NEED – supplied here as 5 metres of 9.5mm bore, 3/8 inch internal diameter, 4.8mm wall thickness, 114mm minimum bending radius. Operates from -40C to +93C with peaks to +100C
  • WORKSHOP AND GARAGE AIR LINES – compressor feeds, pneumatic tools, tyre inflation and general low-pressure air transfer around the unit
  • ✅ SAFE ON BRAKING SYSTEMS – built to BSAU110a/A and SAE J1402A, 16 bar working pressure with 47 bar burst, so it is rated for the job rather than adapted to it
  • ️ STANDS UP TO ENGINE BAYS AND YARDS – ozone-resistant cover shrugs off heat, vibration, weather and pressure cycling where ordinary hose perishes
  • FITS HGVs, TRAILERS AND CARS – air brake lines on lorries, trucks, trailers, buses and coaches, and vacuum servo pipe work on cars and light commercials
›
SKU: B0HHNRQ876
Brand: HOSES UK
Material: Synthetic Rubber
Colour: Black
Manufacture: HOSES UK
Colour: Black
Material: Synthetic Rubber

Product Description

HOSES UK Air Brake & Vacuum Servo Hose

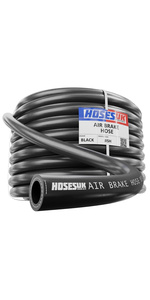

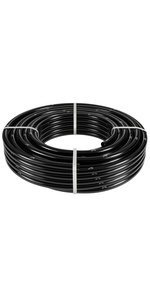

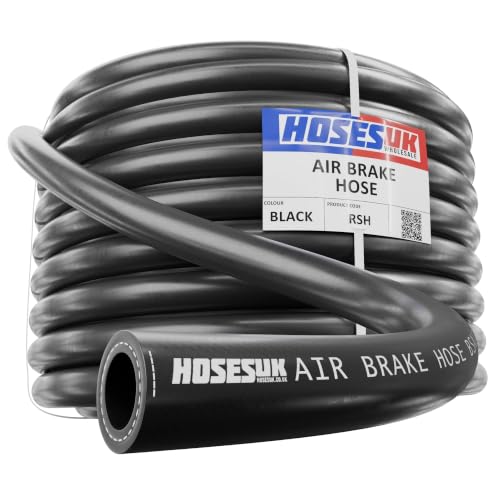

HOSES UK air brake and vacuum servo hose coil, 9.5mm and 13mm boreBlack rubber air brake hose with brass compression couplingBlack rubber vacuum hose from manifold to a car brake servoCoils of new black rubber hose with a cut end and hose shears

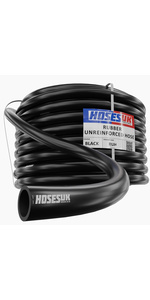

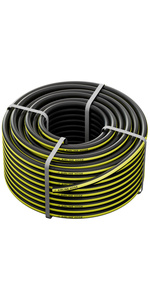

Rubber Air Brake & Vacuum Servo Hose Rubber Air Line Hose Rubber Unreinforced Fuel & Oil Hose Silicone Vacuum Hose
Price £6.57 — no data — no data — no data
Material Synthetic rubber, braided textile reinforcement Synthetic rubber, high tensile textile braid Nitrile rubber, unreinforced VMQ silicone
Internal diameter 9.5mm and 13mm (3/8 and 1/2 inch) 6mm to 19mm 3mm to 10mm 3mm to 10mm
Working pressure 16 bar Up to 20 bar, depending on size Low pressure and gravity feed, not pressure rated Vacuum and low pressure, not pressure rated
Temperature range -40C to +93C -20C to +85C -20C to +100C -40C to +200C
Standards SAE J1402, BSAU110 – no data – no data – no data
Best for Commercial vehicle air brake systems, trailers and brake servo lines Compressed air lines for pneumatic tools, compressors and workshops Gravity feed fuel lines, petrol, diesel and oil transfer Vacuum, breather and boost signal lines

Technical specification

Application: Air Brake / Vacuum Brake Servo / Pneumatic
Inner tube: Smooth Black Synthetic Rubber
Reinforcement: High-Tensile Braided Fibre
Outer cover: Ozone-Resistant Synthetic Rubber
Working pressure: 16 bar
Minimum burst pressure: 47 bar
Temperature: -40°C to +93°C (peak +100°C)
Bore sizes: 9.5mm and 13mm
Standard: SAE J1402 / BSAU110
HOSES UK brand banner with coils of black rubber hose
