ELP 120fp Global Shutter USB 3.0 High-Speed Industrial

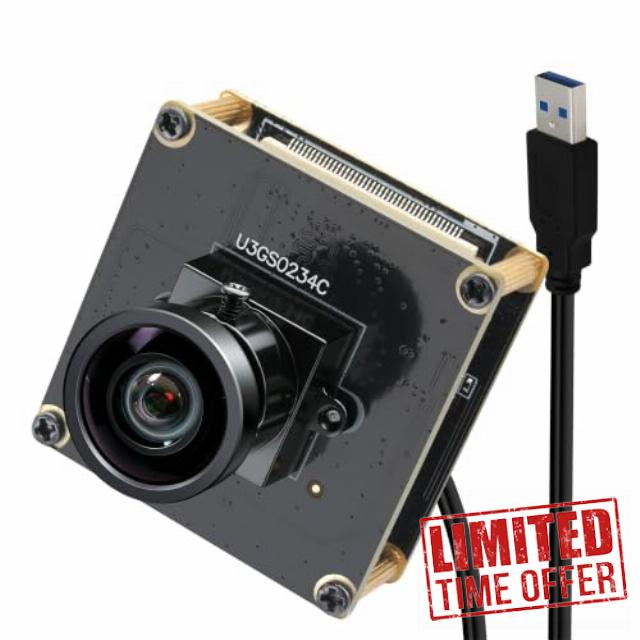

ELP 120fp Global Shutter USB 3.0 High-Speed Industrial Camera

ELP 120fp Global Shutter USB 3.0 High-Speed Industrial Camera, 1200P HD Webcam with 112° HFOV Wide-Angle Lens without Distortion, UVC Plug & Play for Motion Analysis during Golf Swings

2.3MP Global Shutter USB 3.0 Camera, 120FPS/200FPS High Speed Webcam, Wide Angle No Distortion Lens, Plug and Play for Machine Vision, 3D Printer

2.3MP Global Shutter USB 3.0 Camera features AR0234 sensor, max 1920×1200 resolution and up to 120FPS/200FPS high frame rate for distortion-free fast motion capture. Built with wide angle no distortion lens and adjustable image settings, it supports MJPEG & YUY2 formats. Plug and play design works with Windows, Linux, Mac OS and Android. Wide temperature tolerance ensures stable performance for 3D printing, motion analysis and industrial machine vision.

ELP 1200P Global Shutter USB3.0 Webcam, 120/200FPS High Frame Rate Color Camera Module for Industrial Inspection & Motion Analysis

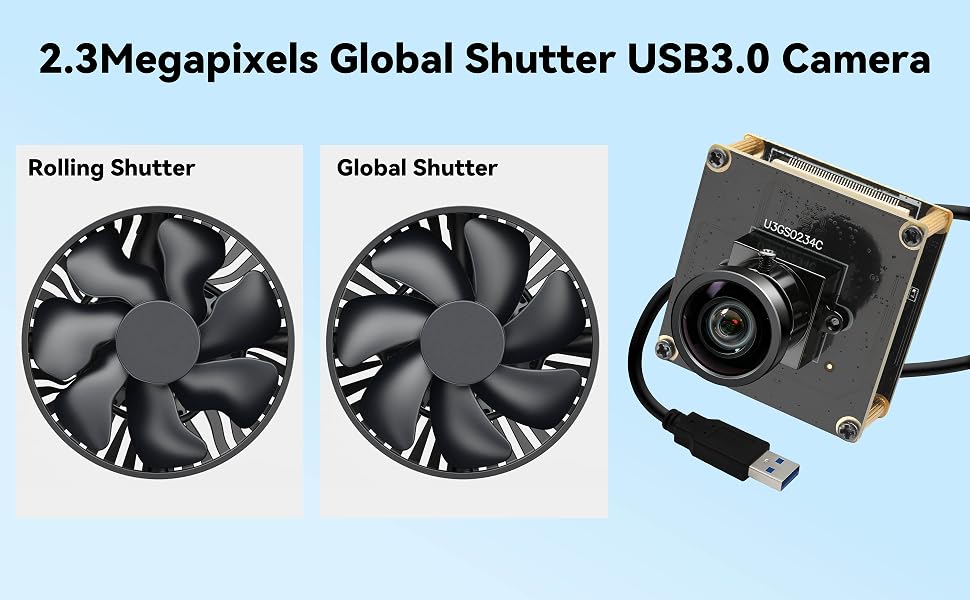

2.3MP Global Shutter Color USB3.0 Cameras

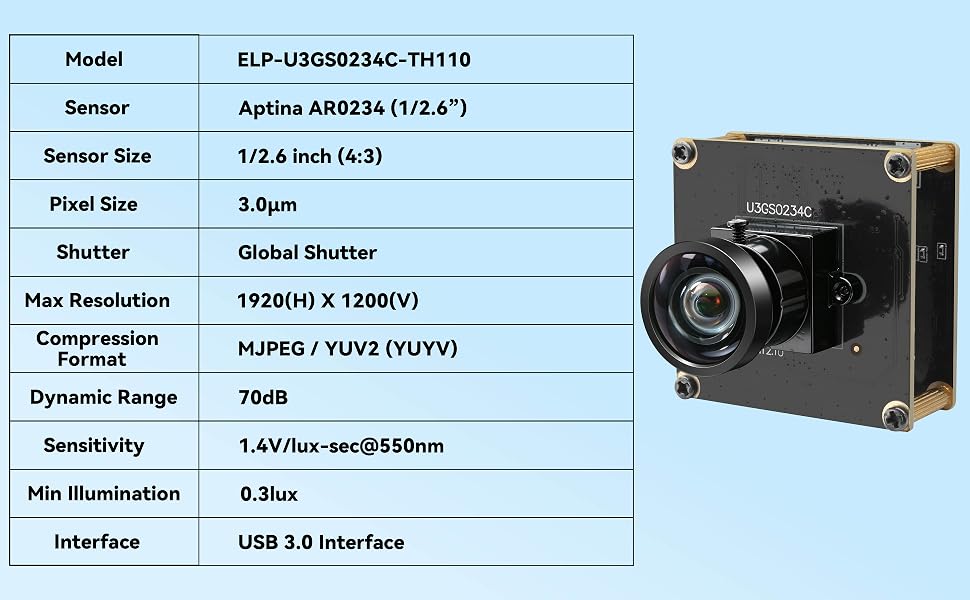

Sensor: 1/2.6 Inches AR0234 Sensor

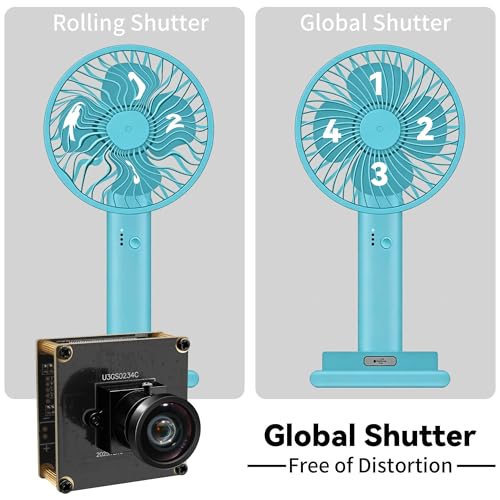

Shutter Type: Global Shutter

Interface & Connector: USB 3.0 20-PIN Connector

Max Resolution: 1920(H) *1200 (V)

Default Resolution:1920(H) *1200 (V)

Dynamic Range:70 dB

Compression format:MJPEG/YUV2(YUYV)

Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure

Power Supply ：USB3.0 20-Pin Power Supply

Operating Voltage： DC 5V

Working Current：165mA- 210mA

Working Temperature: -10°C to 70°C, Storage Temperature：-20°C to 80°C

Operating System Request: Win10/Win11 etc. Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later , Android 4.0 or above with UVC

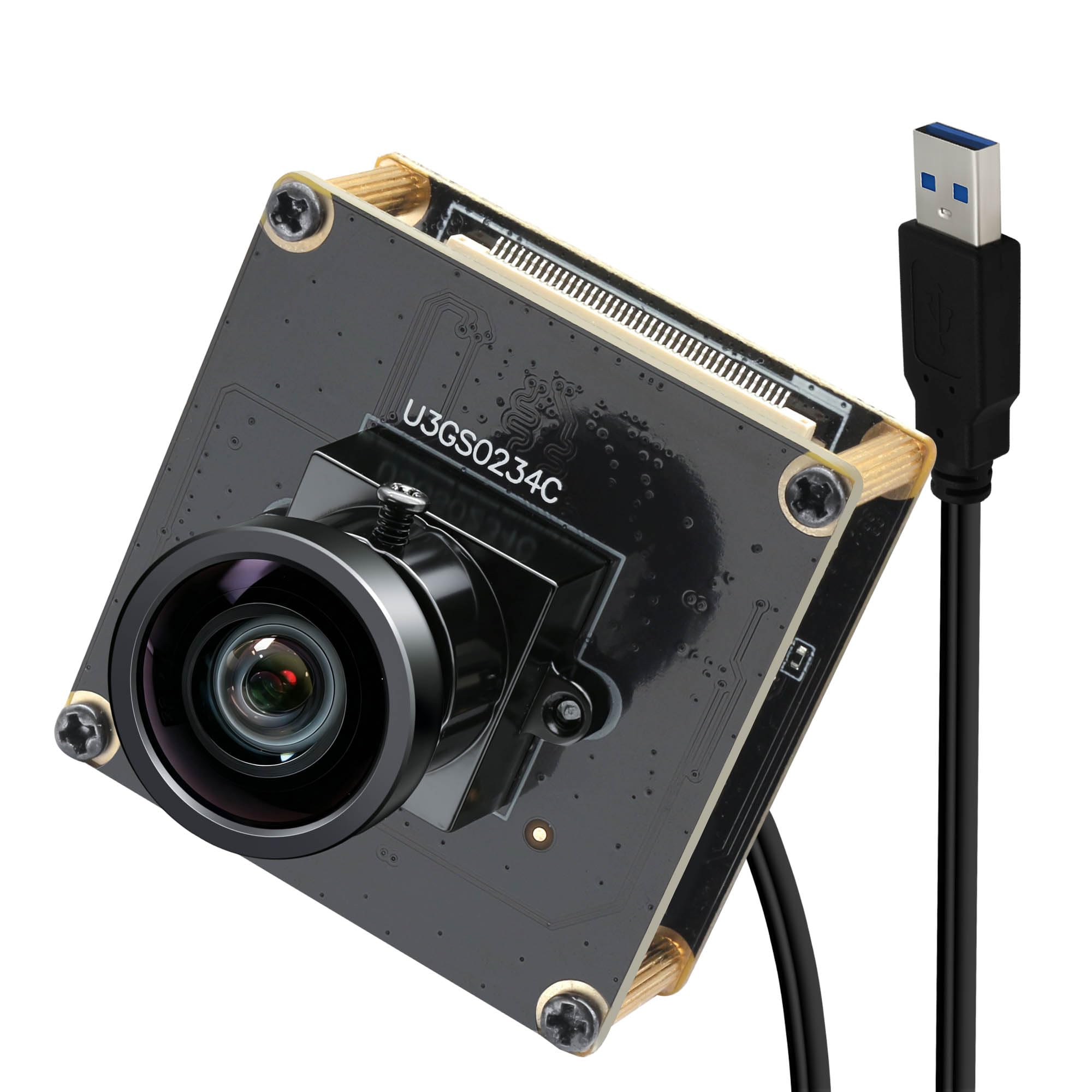

2.3MP Global Shutter USB Camera Module, 120FPS 1920×1200 AR0234 Webcam with Wide Angle No Distortion Lens for Raspberry Pi Jetson Nano.

Performance:

Resolution & Frame Rate under USB3.

1920×1200 MJPEG 120fps/YUY2 80fps 1920×1080 MJPEG 120fps/YUY2 80fps

1600×1200 MJPEG 120fps/YUY2 80fps 1280×960 MJPEG 120fps/YUY2 120fps

1280×720 MJPEG 200fps/YUY2 200fps 640×480 MJPEG 200fps/YUY2 200fps

512×512 MJPEG 120fps/YUY2 120fps

Resolution & Frame Rate under USB2.0

1920×1200 MJPEG 120fps/ YUY2 5fps 1920×1080 MJPEG 120fps/ YUY2 5fps

1600×1200 MJPEG 120fps/ YUY2 5fps 1280×960 MJPEG 120fps/ YUY2 5fps

1280×720 MJPEG 200fps/ YUY2 10fps 640×480 MJPEG 200fps/ YUY2 30fps

512×512 MJPEG 120fps/ YUY2 10fps

Multi-System Compatible USB3.0 Camera Module, Plug and Play Global Shutter Webcam for Computer Industrial Equipment, 1200P Close-up USB Camera

  1. Fully compatible with Windows, Linux, Mac, Android, and Raspberry Pi. UVC compliant and driver-free, simply plug and play for instant use.For PC & Devices
  2. Supports Android development boards, Raspberry Pi, and Jetson Nano.For Development Boards

  • USB 2.0 OTG interface
  • Works with popular streaming software: Skype, Zoom, FaceTime, YouTube, and more
  • Compatible with Amcap, OpenCV, VLC, V4L2, and default PC webcam software
  • Supports a wide range of systems: Windows, Linux, Android, Ubuntu, Mac OS, Raspberry Pi

ELP 120fps High Speed Global Shutter USB3.0 Camera Module, 200FPS USB3.0 Camera Module No Motion Blur for Motion Analysis, Plug and play

· High Speed Usb Camera Module Motion Blur Free Industrial Camera Module AR0234 Sensor.

· 120fps 200fps Global Shutter Camera 1920×1200 Uvc Plug Play .

· Wide Angle Camera Undistorted Lens Machine Vision Inspection Camera.

· 3D Printer Camera Raspberry Pi Jetson Nano Industrial Vision Webcam.

· MJPEG YuYV Adjustable Exposure White Balance Embedded Camera.

120fp Global Shutter High Speed Industrial Camera,1200P HD Webcam with 112°HFOV No Distortion Wide Lens,UVC Plug&Play Motion Industrial Golf Swing

1: If you encounter lighting issues during use: simply turn the knob at the bottom of the lens to adjust the aperture and control brightness. You may also turn the knob on the other end for manual focusing.

2: If you use this device for DIY projects such as 3D printer monitoring, please ensure the environment is well-lit.

3: This camera is extremely easy to install and compatible with all major platforms. The adjustable functions ensure you get the best angle and lighting for your needs.

4: Wide Compatibility for Multi Devices: Works seamlessly with laptops, Android devices, Raspberry Pi and more industrial or DIY platforms, ideal for machine vision, industrial monitoring, computer vision projects and home experimental applications.

Customer ReviewsPriceMax ResolutionImage SensorLensCompression FormatMini IlluminationMax Frame RatePlug and PlayUVC CompliantSupport OS
Add To BasketAdd To BasketAdd To BasketAdd To BasketAdd To BasketAdd To Basket
3.9 out of 5 stars153.0 out of 5 stars183.9 out of 5 stars153.8 out of 5 stars283.7 out of 5 stars203.9 out of 5 stars10
£175.99£175.99£165.99£165.99£132.99£132.99£152.00£152.00£103.00£103.00£91.00£91.00
4K/2160P4K/2160P4K/2160P4K/3040P5MP/1944P2K/1080P
CMOS imx415CMOS imx415CMOS imx415CMOS IMX577CMOS IMX317CMOS OV4689
MJPEG/YUY2/H.264MJPEG/YUY2/H.264MJPEG/YUY2MJPEG/YUY2MJPEG/YUY2MJPEG/YUY2
5-50mm Optical Zoom Lens2.8-12mm Optical Zoom Lens2.8-12mm Optical Zoom Lens3.6-10mm Optical Zoom Lens5-50mm Optical Zoom Lens5-50mm Optical Zoom Lens
0.2LUX0.2LUX0.2LUX0.1LUX0.2LUX0.1LUX
60fps60fps30fps120fps30fps260fps
✓✓✓✓✓✓
✓✓✓✓✓✓
WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above

  • 120/200fps Global Shutter Sensor： Built-in 1/2.6" AR0234 global shutter sensor, 1920×1200 max resolution. Up to 120fps full resolution & 200fps high-speed frame rate, no motion blur for fast object capture.
  • 112° Undistorted Wide Lens & Adjustable Image Settings： 112° HFOV distortion-free lens with 70dB dynamic range. Support MJPEG/YUY2 encoding; tweak exposure, white balance, sharpness and other image parameters freely.
  • Stable USB3.0 Low Latency Transmission： USB3.0 20-pin interface, USB 5V power supply, Adopts USB 3.0 for smooth data transmission, max resolution up to 1920×1200. Compatible with MJPEG and YUY2 formats, and maintains stable performance when connected via USB 2.0 as well.
  • UVC Plug & Play, Wide OS Compatibility： Driver-free UVC camera, works with Windows, Linux, Mac OS and Android. Stable running at -10℃~70℃ for long-hour industrial use.
  • Multi-scene Professional Machine Vision Camera： Ideal for industrial visual inspection, high-speed motion analysis, golf swing recording, 3D printer monitoring and scientific motion capture projects.
›
SKU: B077STWFJ6
Weight: 0.01 Kilograms
Brand: ELP
Model: 031
Manufacture: SHENZHENSHIJIAZHIGUANGKEJIYOUXIANGONGSI
Origin: China

Product Description

2.3MP Global Shutter USB 3.0 Camera, 120FPS/200FPS High Speed Webcam, Wide Angle No Distortion Lens, Plug and Play for Machine Vision, 3D Printer

aplus content imageaplus content imageText reads 'FOR PC', 'FOR PI', 'Global Shutter', 'WORK WITH MOST VIDEO AND STREAMING APPS' with logos of multiple streaming platforms. Three camera/imaging devices shown with cooling fan component and compatibility indicators.Text reads "120fps Global Shutter USB Camera Wide Application". Compact black digital camera displayed with action photography scenes including water, construction, and motorcycle applications.

1: If you encounter lighting issues during use: simply turn the knob at the bottom of the lens to adjust the aperture and control brightness. You may also turn the knob on the other end for manual focusing.

2: If you use this device for DIY projects such as 3D printer monitoring, please ensure the environment is well-lit.

3: This camera is extremely easy to install and compatible with all major platforms. The adjustable functions ensure you get the best angle and lighting for your needs.

4: Wide Compatibility for Multi Devices: Works seamlessly with laptops, Android devices, Raspberry Pi and more industrial or DIY platforms, ideal for machine vision, industrial monitoring, computer vision projects and home experimental applications.

ELP 4K USB3.0 HDMI USB Camera Manual Zoom 5-50 mm 10X Webcam 4K 60fps PC Came… ELP HDMI 4K Camera 60fps High Speed Webcam USB 3.0 HDMI Simultaneous Output P… ELP 4K HDMI USB Camera Wide Angle 2.8-12 mm Varifocal Focus Lens Webcam Close… ELP 120fps USB Camera 4K High Speed ​​USB Webcam Golf Swing Cam 12Megapixels … ELP 4K Web Camera, Ultra HD IMX317 USB Conference Varifocal Webcam with 5-50m… ELP USB Camera 1080P High Speed 260fps 5-50mm 10X Optical Zoom Lens 2MP USB W…
Customer Reviews 3.9 out of 5 stars153.0 out of 5 stars183.9 out of 5 stars153.8 out of 5 stars283.7 out of 5 stars203.9 out of 5 stars10
Price £175.99£165.99£132.99£152.00£103.00£91.00
Max Resolution 4K/2160P 4K/2160P 4K/2160P 4K/3040P 5MP/1944P 2K/1080P
Image Sensor CMOS imx415 CMOS imx415 CMOS imx415 CMOS IMX577 CMOS IMX317 CMOS OV4689
Lens MJPEG/YUY2/H.264 MJPEG/YUY2/H.264 MJPEG/YUY2 MJPEG/YUY2 MJPEG/YUY2 MJPEG/YUY2
Compression Format 5-50mm Optical Zoom Lens 2.8-12mm Optical Zoom Lens 2.8-12mm Optical Zoom Lens 3.6-10mm Optical Zoom Lens 5-50mm Optical Zoom Lens 5-50mm Optical Zoom Lens
Mini Illumination 0.2LUX 0.2LUX 0.2LUX 0.1LUX 0.2LUX 0.1LUX
Max Frame Rate 60fps 60fps 30fps 120fps 30fps 260fps
Plug and Play ✓ ✓ ✓ ✓ ✓ ✓
UVC Compliant ✓ ✓ ✓ ✓ ✓ ✓
Support OS WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above
