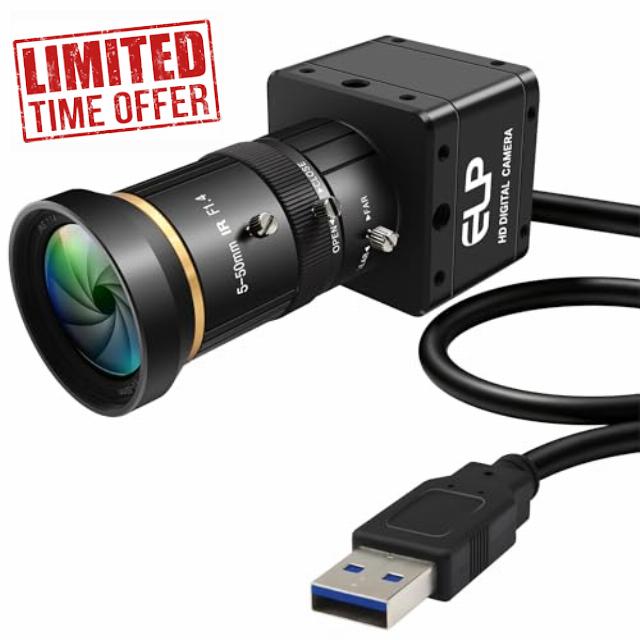

ELP 120fps Global Shutter Camera,USB3.0/2.0 High Speed Color

ELP 120fps Global Shutter Camera

ELP 120fps Global Shutter Camera,USB3.0/2.0 High Speed Color Webcam,10X 5-50mm Manual Zoom Lens,1920×1200 Max Resolution,Wide System Support for High Speed Motion Analysis Golf Swing 3D Printe

ELP Industrial High Speed USB3.0 Camera,120FPS 200FPS Ultra Fast Shooting Webcam for Industrial High-Speed Motion Analysis, Plug and Play

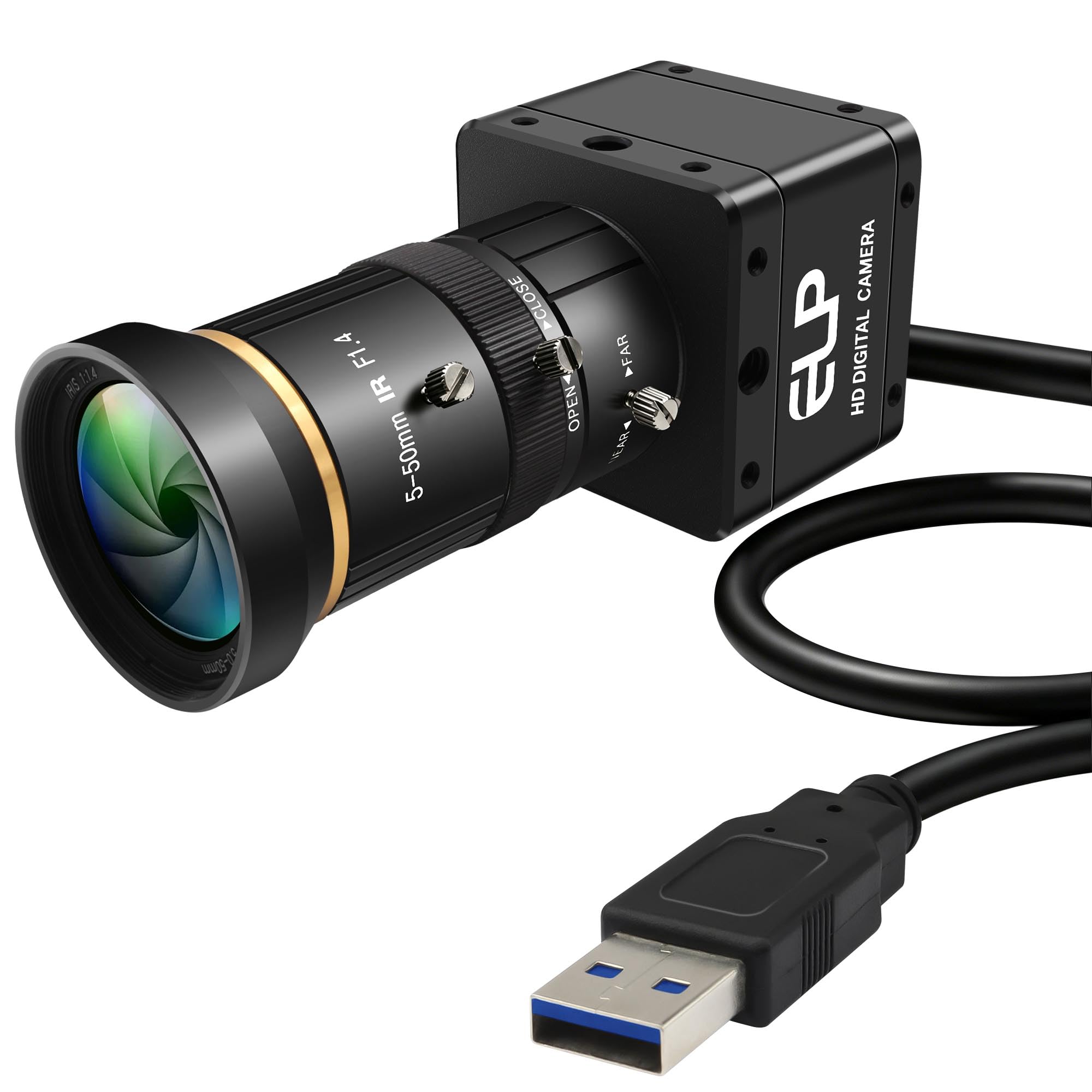

2.3Megapixels Global Shutter USB 3.0 Camera features AR0234 sensor, max 1920×1200 resolution and up to 120FPS/200FPS high frame rate for distortion-free fast motion capture. Built with 5-50mm 10X manual zoom lens and adjustable image settings, it supports MJPEG & YUY2 formats. Plug and play design works with Windows, Linux, Mac OS and Android. Wide temperature tolerance ensures stable performance for 3D printing, motion analysis and industrial machine vision.

120fps Camera Industrial Global Shutter Color Webcam, USB3.0 Low Latency Industrial Camera, Anti-Distortion for Factory Fast Moving Object Detection

2.3MP Global Shutter Color USB3.0 Cameras

Sensor: 1/2.6 Inches AR0234 Sensor

Shutter Type: Global Shutter

Interface & Connector: USB 3.0 20-PIN Connector

Max Resolution: 1920(H) *1200 (V)

Default Resolution:1920(H) *1200 (V)

Dynamic Range:70 dB

Compression format:MJPEG/YUV2(YUYV)

Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure

Power Supply ：USB3.0 20-Pin Power Supply

Operating Voltage： DC 5V

Working Current：165mA- 210mA

Working Temperature: -10°C to 70°C, Storage Temperature：-20°C to 80°C

Operating System Request: Win10/Win11 etc. Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later , Android 4.0 or above with UVC

Global Shutter 1920×1200 HD Industrial Resolution USB3.0 Camera, IFWATER Color USB3.0 Webcam for Industrial Precision Imaging & Detail Detection

Performance:

Resolution & Frame Rate under USB3.

1920×1200 MJPEG 120fps/YUY2 80fps 1920×1080 MJPEG 120fps/YUY2 80fps

1600×1200 MJPEG 120fps/YUY2 80fps 1280×960 MJPEG 120fps/YUY2 120fps

1280×720 MJPEG 200fps/YUY2 200fps 640×480 MJPEG 200fps/YUY2 200fps

512×512 MJPEG 120fps/YUY2 120fps

Resolution & Frame Rate under USB2.0

1920×1200 MJPEG 120fps/ YUY2 5fps 1920×1080 MJPEG 120fps/ YUY2 5fps

1600×1200 MJPEG 120fps/ YUY2 5fps 1280×960 MJPEG 120fps/ YUY2 5fps

1280×720 MJPEG 200fps/ YUY2 10fps 640×480 MJPEG 200fps/ YUY2 30fps

512×512 MJPEG 120fps/ YUY2 10fps

Industrial Multi-System Compatible USB3.0 Camera, Plug and Play Global Shutter Webcam for Industrial Machines & Intelligent Equipment

  1. Fully compatible with Windows, Linux, Mac, Android, and Raspberry Pi. UVC compliant and driver-free, simply plug and play for instant use.For PC & Devices
  2. Supports Android development boards, Raspberry Pi, and Jetson Nano.For Development Boards

  • USB 2.0 OTG interface
  • Works with popular streaming software: Skype, Zoom, FaceTime, YouTube, and more
  • Compatible with Amcap, OpenCV, VLC, V4L2, and default PC webcam software
  • Supports a wide range of systems: Windows, Linux, Android, Ubuntu, Mac OS, Raspberry Pi

Ultra High Speed Camera,120FPS 200FPS Fast Shooting Webcam, Plug and Play Multi System Compatible for High Speed Motion Analysis Industrial

1: If you encounter lighting issues during use: simply turn the knob at the bottom of the lens to adjust the aperture and control brightness. You may also turn the knob on the other end for manual focusing.

2: If you use this device for DIY projects such as 3D printer monitoring, please ensure the environment is well-lit.

3: This camera is extremely easy to install and compatible with all major platforms. The adjustable functions ensure you get the best angle and lighting for your needs.

4: Wide Compatibility for Multi Devices: Works seamlessly with laptops, Android devices, Raspberry Pi and more industrial or DIY platforms, ideal for machine vision, industrial monitoring, computer vision projects and home experimental applications.

Professional Industrial Visual Detection Webcam, High Speed Global Shutter Camera for Factory Inspection, Machine Vision & Industrial Motion Tracking

Customer ReviewsPriceMax ResolutionImage SensorLensCompression FormatMini IlluminationMax Frame RatePlug and PlayUVC CompliantSupport OS
Add To BasketAdd To BasketAdd To BasketAdd To BasketAdd To BasketAdd To Basket
3.9 out of 5 stars153.0 out of 5 stars183.9 out of 5 stars153.8 out of 5 stars283.7 out of 5 stars203.9 out of 5 stars10
£175.99£175.99£165.99£165.99£132.99£132.99£152.00£152.00£103.00£103.00£91.00£91.00
4K/2160P4K/2160P4K/2160P4K/3040P5MP/1944P2K/1080P
CMOS imx415CMOS imx415CMOS imx415CMOS IMX577CMOS IMX317CMOS OV4689
MJPEG/YUY2/H.264MJPEG/YUY2/H.264MJPEG/YUY2MJPEG/YUY2MJPEG/YUY2MJPEG/YUY2
5-50mm Optical Zoom Lens2.8-12mm Optical Zoom Lens2.8-12mm Optical Zoom Lens3.6-10mm Optical Zoom Lens5-50mm Optical Zoom Lens5-50mm Optical Zoom Lens
0.2LUX0.2LUX0.2LUX0.1LUX0.2LUX0.1LUX
60fps60fps30fps120fps30fps260fps
✓✓✓✓✓✓
✓✓✓✓✓✓
WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above

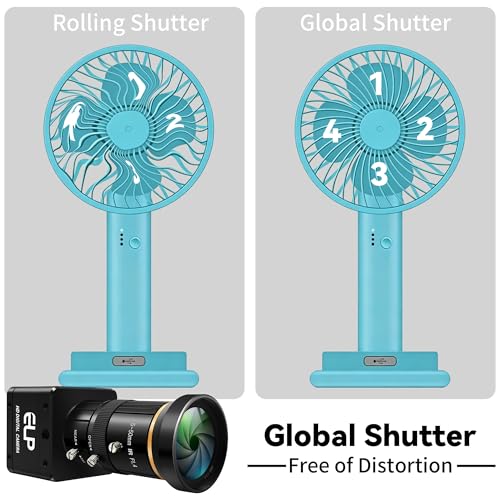

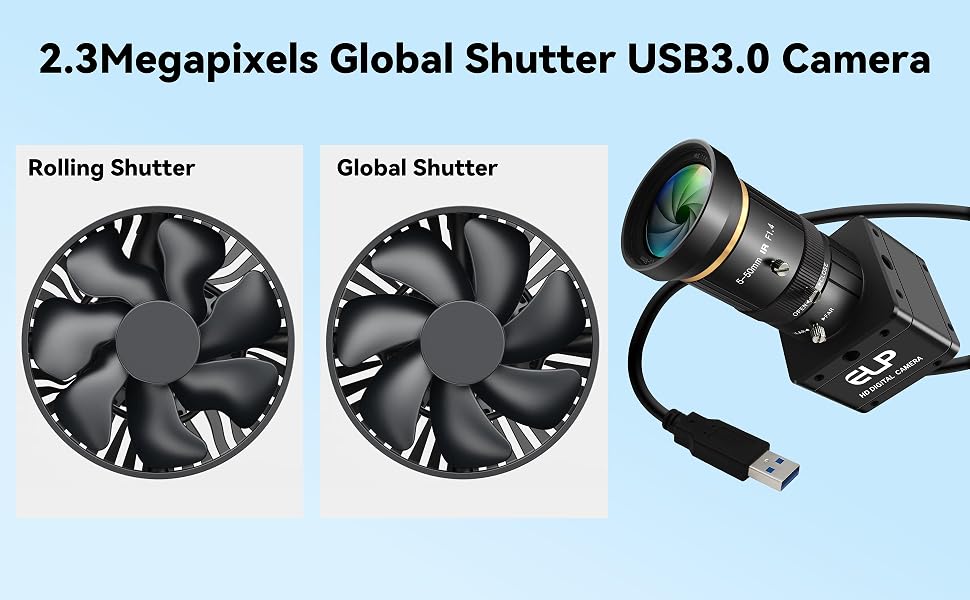

  • Global Shutter with High Frame Rate: Built-in AR0234 global shutter sensor captures clear images. It supports 120FPS and 200FPS high frame rate, perfectly suited for high speed motion analysis and dynamic scene recording.
  • USB 3.0 Interface & Rich Resolution Options: Adopts USB 3.0 for smooth data transmission, max resolution up to 1920×1200. Compatible with MJPEG and YUY2 formats, and maintains stable performance when connected via USB 2.0 as well.
  • 10X Zoom Lens & Adjustable Images: The 5-50mm 10X manual zoom lens allows easy focal length adjustment. Multiple adjustable image parameters help you optimize picture quality to fit your shooting demands.
  • Driver-free & Multi-system Support: Plug and play design saves your time.Works seamlessly with laptops, Android devices, Raspberry Pi and more industrial or DIY platforms, ideal for machine vision, industrial monitoring, computer vision projects and home experimental applications. Standard 20-PIN connector.
  • Stable Performance for Professional Scenarios: Built for long time continuous operation, delivering stable video output and clear imaging for golf swing analysis, 3D printer monitoring, industrial inspection and other high speed capture tasks.
›
SKU: B0784W4B3R
Weight: 0.01 Kilograms
Brand: ELP
Model: 022
Batteries Included: No
Manufacture: SHENZHENSHIJIAZHIGUANGKEJIYOUXIANGONGSI
Origin: China

Product Description

ELP Industrial High Speed USB3.0 Camera,120FPS 200FPS Ultra Fast Shooting Webcam for Industrial High-Speed Motion Analysis, Plug and Play

aplus content imageaplus content imageaplus content imageaplus content image
ELP 4K USB3.0 HDMI USB Camera Manual Zoom 5-50 mm 10X Webcam 4K 60fps PC Came… ELP HDMI 4K Camera 60fps High Speed Webcam USB 3.0 HDMI Simultaneous Output P… ELP 4K HDMI USB Camera Wide Angle 2.8-12 mm Varifocal Focus Lens Webcam Close… ELP 120fps USB Camera 4K High Speed ​​USB Webcam Golf Swing Cam 12Megapixels … ELP 4K Web Camera, Ultra HD IMX317 USB Conference Varifocal Webcam with 5-50m… ELP USB Camera 1080P High Speed 260fps 5-50mm 10X Optical Zoom Lens 2MP USB W…
Customer Reviews 3.9 out of 5 stars153.0 out of 5 stars183.9 out of 5 stars153.8 out of 5 stars283.7 out of 5 stars203.9 out of 5 stars10
Price £175.99£165.99£132.99£152.00£103.00£91.00
Max Resolution 4K/2160P 4K/2160P 4K/2160P 4K/3040P 5MP/1944P 2K/1080P
Image Sensor CMOS imx415 CMOS imx415 CMOS imx415 CMOS IMX577 CMOS IMX317 CMOS OV4689
Lens MJPEG/YUY2/H.264 MJPEG/YUY2/H.264 MJPEG/YUY2 MJPEG/YUY2 MJPEG/YUY2 MJPEG/YUY2
Compression Format 5-50mm Optical Zoom Lens 2.8-12mm Optical Zoom Lens 2.8-12mm Optical Zoom Lens 3.6-10mm Optical Zoom Lens 5-50mm Optical Zoom Lens 5-50mm Optical Zoom Lens
Mini Illumination 0.2LUX 0.2LUX 0.2LUX 0.1LUX 0.2LUX 0.1LUX
Max Frame Rate 60fps 60fps 30fps 120fps 30fps 260fps
Plug and Play ✓ ✓ ✓ ✓ ✓ ✓
UVC Compliant ✓ ✓ ✓ ✓ ✓ ✓
Support OS WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above
