ELP 230fps Ultra High Speed 4K USB3.0 Camera,12MP HFOV 71°

12MP HFOV 71° No Distortion Lens

ELP 230fps Ultra High Speed 4K USB3.0 Camera,12MP HFOV 71° No Distortion Lens, 2160P@60fps/1080P@230fps Plug and Play for Golf Swing Motion Capture, Industrial Machine Vision Security Monitoring

ELP 230fps Ultra High Speed USB3.0 Camera, 12MP 4K 2160P, 71° HFOV Distortion-Free Wide Lens, UVC Plug and Play for Golf Swing Capture

Product Features:

1: Excellent high-FPS performance: The 1080p@230fps high-speed mode is the real win here.

2: 4K @30fps Motion looks smooth and clear, and it’s actually usable for analyzing quick movements.

3: Solid image quality: In good lighting, the picture is crisp with nice detail. It’s a small sensor camera, but it punches above its size when you give it enough light.

4: USB 3.0 support: When you’re pushing higher resolutions/frame rates, the USB 3.0 connection makes a noticeable difference in stability and throughput.

A couple of practical notes:

Like most high-speed cameras, lighting matters—you’ll get the best results with bright, even light.

Depending on your computer and software, you may need to dial in resolution/FPS settings to match what your system can sustain (totally normal for high-frame-rate capture).

230fps Ultra High Frame Rate 4K USB3.0 Webcam, ELP 12MP Camera with 71° Undistorted HFOV Lens, Driver-Free for Golf Swing Motion Analysis

SPECIFICATION:

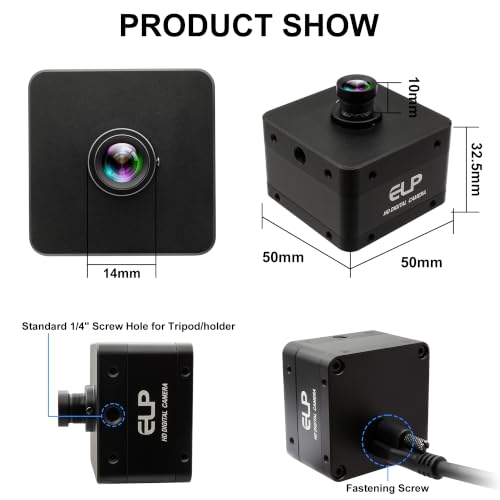

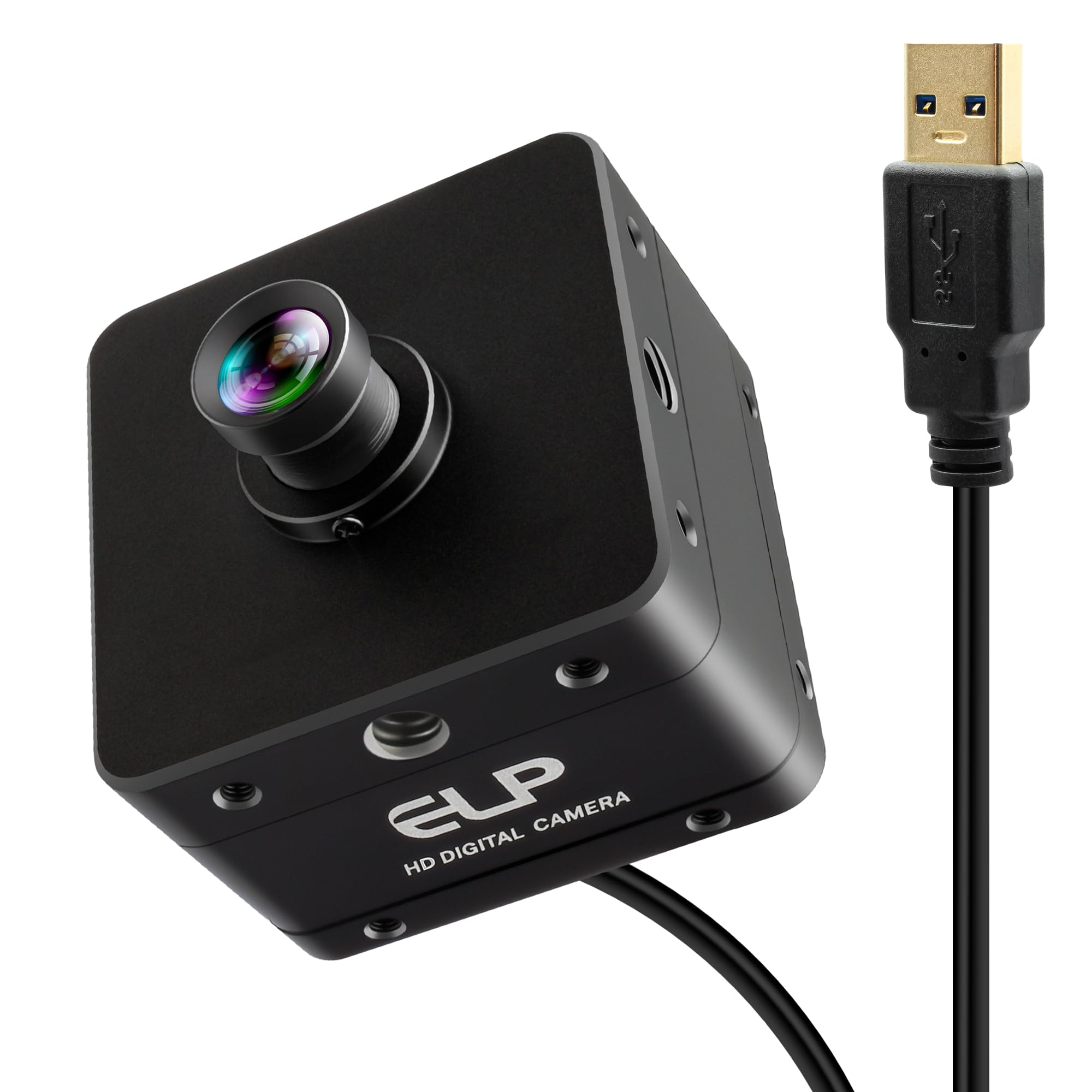

*aluminum mini case,

HFOV 71° No Distortion Lens,1.5m Type C USB 3.0 cable

Max / Default Resolution:4000(H) *3000 (V)

Video Compression:MJPEG / YUY2(YUYV)

Shutter Type: Electronic rolling shutter / Frame exposure

Connecting Port Type: USB 3.0 Interface

Power Supply & Interface:USB Type-C Power Supply, Type-C

With 1.2m cable with USB3.0 Type-C port

DC 5V, Power current 180-260mA

Working Temperature: -10°C to 65°C

Operating System Request：

Win10/Win11 etc; Linux with UVC; MAC-OSX10.4.8 or later; Android5.x or above.

UVC Plug and Play 230fps 4K USB3.0 Webcam, 12MP 71° HFOV Undistorted Lens Compatible with Windows Linux Mac Jetson Nano

Resolution & Frame Rates:

Under USB 3.0 Interface & Speed:

4000×3000@ 30fps MJPEG/YUY2 10fps

3840×2160@ 60fps MJPEG/YUY2 20fps

3264×2448@ 30fps MJPEG/YUY2 20fps

2560×1440@ 60fps MJPEG/YUY2 30fps

1920×1080@ 230fps MJPEG/YUY2 60fps

1280×720@ 230fps MJPEG/YUY2 120fps

640×360@ 230fps MJPEG/YUY2 230fps

Under USB 2.0 Speed:

4000×3000@ 30fps MJPEG, 3840×2160@ 30fps MJPEG

3264×2448@ 30fps MJPEG, 2560×1440@ 60fps MJPEG

1920×1080@ 120fps MJPEG, 1280×720@ 230fps MJPEG/YUY2 10ps

640×360@ 230fps MJPEG/YUY2 30fps

Industrial 4K High Speed USB3.0 Camera, 12MP 230fps Stable Low Latency Transmission for Machine Vision Inspection & Security Monitoring

This 12MP resolution ensures that even still shots are crisp and detailed.

Whether you're using it for a 3D printer monitor, a Lightburn setup, or a Jetson Nano project,

especially the 230fps at 1080P, which is perfect for motion analysis or high-speed DIY projects.

Support Multi System & Software

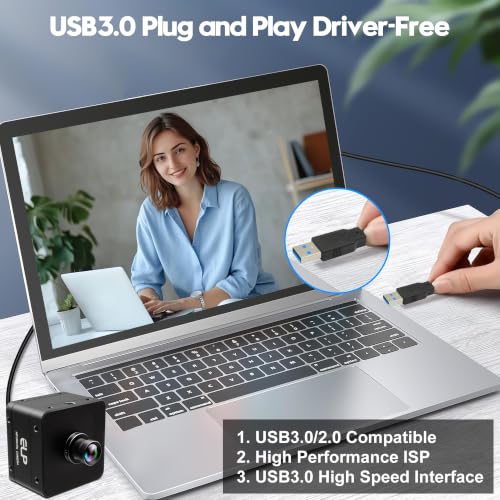

-No driver required, plug and play

– Support Live Streaming Software, Skype, Zoom, Facetime, Youtube.

– Support many APPs and software, Amcap, OpenCV, PC default webcam software, VLC, V4L2.

– Compatible with many operating systems, including Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS.

12MP 4K 230fps High Speed USB3.0 Camera, 71° Zero Distortion Wide Lens for Golf Swing Analysis, 3D Printing and Professional Motion Capture Projects

Detailed Features：

12MP High Resolution USB Webcam with IMX577 (1/2.3” ) Sensor No Distortion Lens USB Camera Free driver Plug and Play.

1. High resolution 12MP USB Camera with IMX577 Sensor.

2. Super high resolution 4000×3000@ 30fps high resolution.

3. UVC free driver, USB3.0/USB2.0 Plug and Play.

4. 1.5m Type C USB 3.0 cable.

5. With No Distortion Lens.

6. Support different operating systems, compatible with different softwares

Customer ReviewsPriceMax ResolutionImage SensorLensCompression FormatMini IlluminationMax Frame RatePlug and PlayUVC CompliantSupport OS
Add To BasketAdd To BasketAdd To BasketAdd To BasketAdd To BasketAdd To Basket
3.9 out of 5 stars153.0 out of 5 stars183.9 out of 5 stars153.8 out of 5 stars283.7 out of 5 stars203.9 out of 5 stars10
£175.99£175.99£165.99£165.99£132.99£132.99£152.00£152.00£103.00£103.00£91.00£91.00
4K/2160P4K/2160P4K/2160P4K/3040P5MP/1944P2K/1080P
CMOS imx415CMOS imx415CMOS imx415CMOS IMX577CMOS IMX317CMOS OV4689
MJPEG/YUY2/H.264MJPEG/YUY2/H.264MJPEG/YUY2MJPEG/YUY2MJPEG/YUY2MJPEG/YUY2
5-50mm Optical Zoom Lens2.8-12mm Optical Zoom Lens2.8-12mm Optical Zoom Lens3.6-10mm Optical Zoom Lens5-50mm Optical Zoom Lens5-50mm Optical Zoom Lens
0.2LUX0.2LUX0.2LUX0.1LUX0.2LUX0.1LUX
60fps60fps30fps120fps30fps260fps
✓✓✓✓✓✓
✓✓✓✓✓✓
WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above

  • Ultra High Frame Rate & Crisp Imaging: Supports 4K@30fps and 1080P@230fps high frame rate recording, with 3000P high resolution. Captures smooth motion without blur and delivers sharp, clear footage for fast-moving scenes.

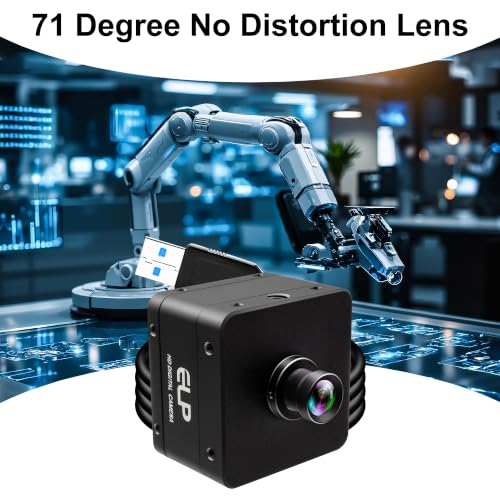

  • HFOV 71° No Distortion Lens： Features a 71° wide-angle lens with zero distortion, making it ideal for AI perception, navigation, inspection systems, group meetings, and various video projects that require a broad, clear field of view.
  • 12MP High-Quality Sensor: 12MP high-resolution sensor delivers excellent detail, color accuracy and light sensitivity, providing clear imaging for industrial and daily use.
  • USB3.0 & UVC Plug & Play: USB 3.0 high-speed transmission ensures stable and lag-free video. UVC-compliant, no driver needed, compatible with Windows, Linux, Mac, PC and Jetson Nano.
  • Wide Professional Applications: Ideal for golf swing analysis, 3D printing, industrial monitoring, machine vision and high-speed capture projects.
›
SKU: B077SQW3LP
Weight: 0.01 Kilograms
Brand: ELP
Model: 032
Batteries Included: No
Manufacture: SHENZHENSHIJIAZHIGUANGKEJIYOUXIANGONGSI
Origin: China

Product Description

ELP 230fps Ultra High Speed USB3.0 Camera, 12MP 4K 2160P, 71° HFOV Distortion-Free Wide Lens, UVC Plug and Play for Golf Swing Capture

Text reads "230FPS", "4K USB Camera", "IMX677", "USB 3.0", "UHD 4096", "No Distortion Lens", "2304p High Speed", "Plug and Play". Black compact camera with USB connector displayed with feature icons.Text reads: '4K Ultra HD High Speed USB3.0 Camera,' '1920x1080@230fps,' 'USB3.0 Speed up to 230fps,' '1920x1080@30fps.' Small black USB camera with dual resolution and frame rate specifications displayed with technical diagrams.Text reads 'FOR PC,' 'FOR PI,' 'USB Streaming,' and 'WORK WITH XBOX GAME PASS AND STREAMING APPS.' Black media devices shown with compatibility icons for multiple platforms and streaming services.

Detailed Features：

12MP High Resolution USB Webcam with IMX577 (1/2.3” ) Sensor No Distortion Lens USB Camera Free driver Plug and Play.

1. High resolution 12MP USB Camera with IMX577 Sensor.

2. Super high resolution 4000×3000@ 30fps high resolution.

3. UVC free driver, USB3.0/USB2.0 Plug and Play.

4. 1.5m Type C USB 3.0 cable.

5. With No Distortion Lens.

6. Support different operating systems, compatible with different softwares

ELP 4K USB3.0 HDMI USB Camera Manual Zoom 5-50 mm 10X Webcam 4K 60fps PC Came… ELP HDMI 4K Camera 60fps High Speed Webcam USB 3.0 HDMI Simultaneous Output P… ELP 4K HDMI USB Camera Wide Angle 2.8-12 mm Varifocal Focus Lens Webcam Close… ELP 120fps USB Camera 4K High Speed ​​USB Webcam Golf Swing Cam 12Megapixels … ELP 4K Web Camera, Ultra HD IMX317 USB Conference Varifocal Webcam with 5-50m… ELP USB Camera 1080P High Speed 260fps 5-50mm 10X Optical Zoom Lens 2MP USB W…
Customer Reviews 3.9 out of 5 stars153.0 out of 5 stars183.9 out of 5 stars153.8 out of 5 stars283.7 out of 5 stars203.9 out of 5 stars10
Price £175.99£165.99£132.99£152.00£103.00£91.00
Max Resolution 4K/2160P 4K/2160P 4K/2160P 4K/3040P 5MP/1944P 2K/1080P
Image Sensor CMOS imx415 CMOS imx415 CMOS imx415 CMOS IMX577 CMOS IMX317 CMOS OV4689
Lens MJPEG/YUY2/H.264 MJPEG/YUY2/H.264 MJPEG/YUY2 MJPEG/YUY2 MJPEG/YUY2 MJPEG/YUY2
Compression Format 5-50mm Optical Zoom Lens 2.8-12mm Optical Zoom Lens 2.8-12mm Optical Zoom Lens 3.6-10mm Optical Zoom Lens 5-50mm Optical Zoom Lens 5-50mm Optical Zoom Lens
Mini Illumination 0.2LUX 0.2LUX 0.2LUX 0.1LUX 0.2LUX 0.1LUX
Max Frame Rate 60fps 60fps 30fps 120fps 30fps 260fps
Plug and Play ✓ ✓ ✓ ✓ ✓ ✓
UVC Compliant ✓ ✓ ✓ ✓ ✓ ✓
Support OS WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above
