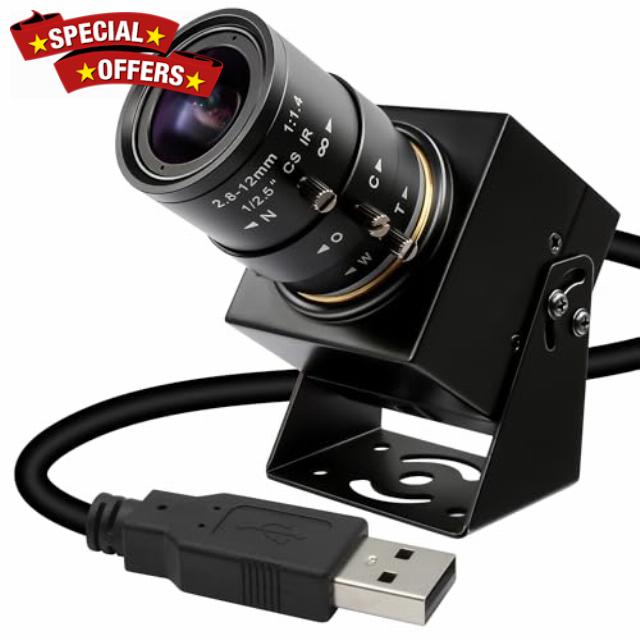

ELP 640fps USB Camera Ultra High Speed Monochrome Global

ELP 640fps USB Camera Ultra High Speed Monochrome Global Shutter

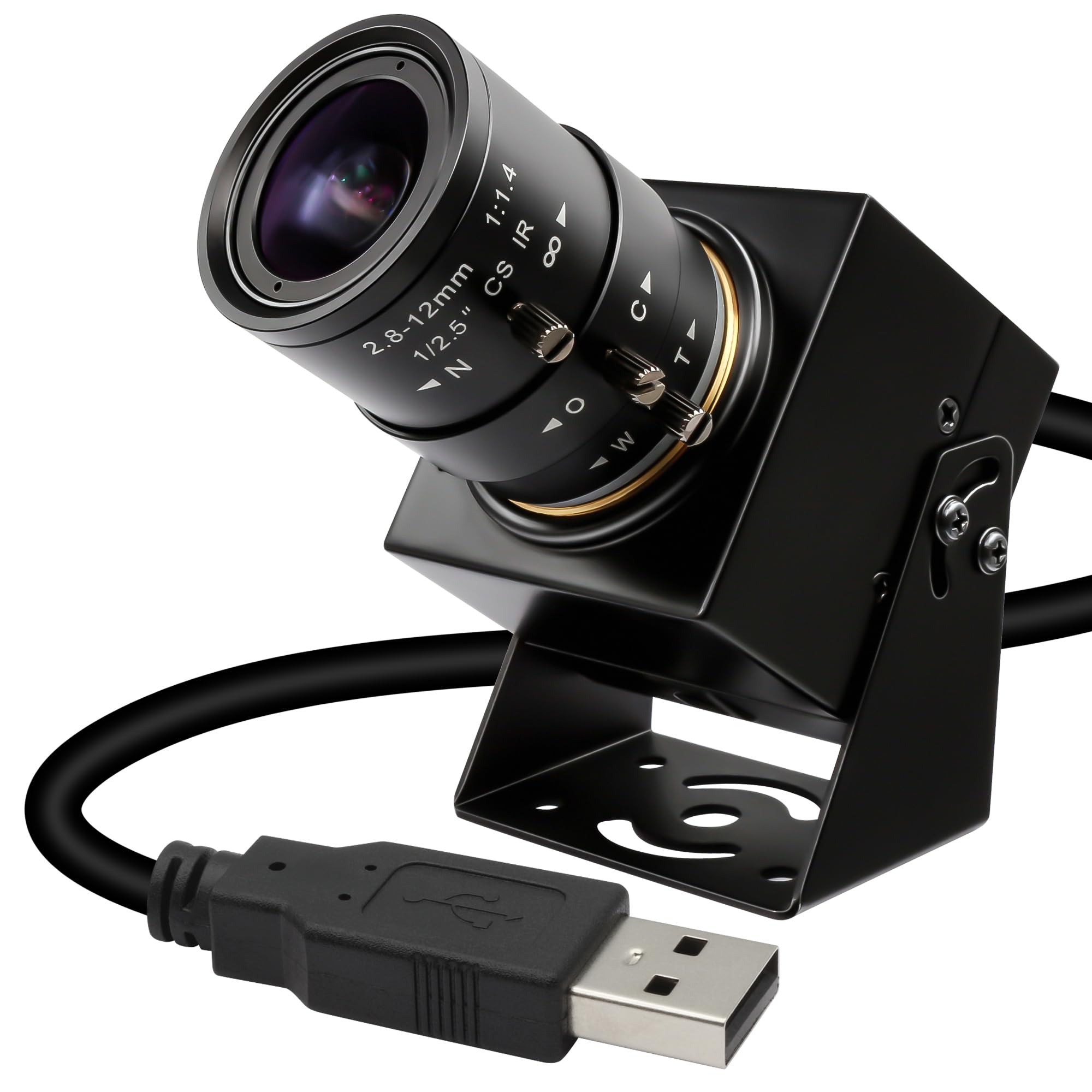

ELP 640fps USB Camera Ultra High Speed Monochrome Global Shutter, 120fps/210fps/420fps Webcam,2.8-12mm 4X Manual Zoom Lens, Plug&Play for Raspberry Pi Laptop Industrial Motion Capture Golf Swing

ELP Monochrome 1280×800 800P High Frame Rate Webcam, Global Shutter USB2.0 Camera, Plug & Play for Raspberry Pi Windows Linux Mac Android

ELP high-speed monochrome 1MP USB camera adopts the 1/4-inch OmniVision OV9281 global shutter sensor, delivering frame rates up to 640fps to capture sharp, blur-free footage of rapidly moving objects. Equipped with a 2.8-12mm 4X manual varifocal zoom lens, it supports adjustable focal length, zoom and brightness to adapt to different shooting ranges.

Compliant with UVC standard, this camera is plug-and-play without driver installation, fully compatible with Windows, Linux, Mac OS, Android and Raspberry Pi. Boasting outstanding low-light sensitivity and stable high-speed data transmission, it is perfectly suited for golf swing analysis, industrial machine vision inspection, 3D printer monitoring, robotic vision and all other high-speed motion capture projects.

ELP 800P 1280×800 Ultra High Frame Rate Webcam, Global Shutter Monochrome Camera, Multi-System Compatible for Industrial Vision Golf Swing

Resolution & Frame rate :

1280×800 @ 120fps MJPEG @10fps YUY2

1280×720 @ 120fps MJPEG @10fps YUY2

1024×768 @ 120fps MJPEG @10fps YUY2

800×600 @ 120fps MJPEG @20fps YUY2

640×480 @ 210fps MJPEG @30fps YUY2

640×400 @ 210fps MJPEG @30fps YUY2

320×240 @420fps MJPEG @120fps YUY2

160×120@ 640fps MJPEG @420fps YUY2

Adjustable Parameters: Brightness, contrast, Saturation, Hue, Sharpness, Gamma,White Balance, Backlight Compensation, Exposure

Operating System Request:

WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.

Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later, Android 4.0 or above with UVC

ELP 800P Global Shutter USB Camera, 120/210/420/640fps High Speed, 2.8-12mm 4X Manual Zoom, USB2.0 UVC Webcam for PC Laptop Raspberry Pi Windows Linux

Main Specifications:

Sensor: OmniVision OV9281

Lens Size: 1/4 inch, Pixel Size: 3 µm x 3 µm

Max Resolution: 1280(H)x 800(V)

Default Resolution: 640(H)x 480(V) @ 210fps MJPEG

Surface Mount Technology: SMT

Central Definition:600LW/PH (Center)

S/N Ratio: 37dB, Dynamic Range : 70dB, Sensitivity : 1.4V/lux-sec@550nm

Min illumination: 0.3 Lux, Shutter Type: Global Shutter

Connecting Port Type: USB2.0 High Speed

AEC/AWB/AGC: Support, Lens Parameter: CS 2.8-12mm lens

LED Board Power Connector: Support 2P-2.0mm socket

Power Supply USB BUS POWER: 4P-2.0mm Socket

Operating Voltage: DC 5V, Working Current: 100mA- 130mA

Storage Temperature: -20°C to 85°C, Working Temperature: -10°C to 70°C

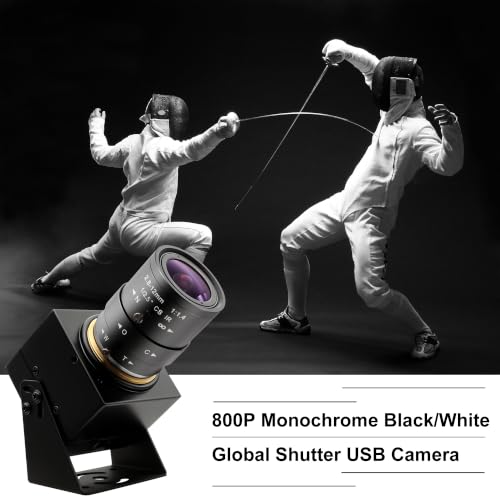

Global Shutter 800P High Frame Rate Webcam, Monochrome USB2.0 Camera with Zoom Lens, Plug and Play for Shooting Industrial & Embedded Projects

1: Global Shutter Monochrome Sensor OV9281 eliminate motion smear rolling distortion

2: 1MP 1280×800 up to 120fps MJPEG high speed USB2.0 camera module

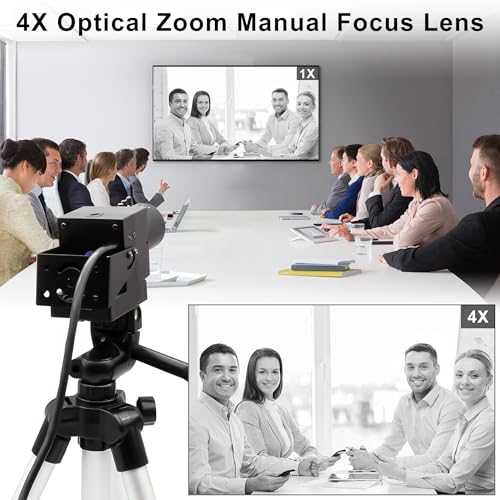

3: 2.8-12mm 4X manual zoom lens high light sensitivity low light imaging

4: UVC plug and play driver free support windows linux mac android raspberry pi

5: Full adjustable image parameters exposure gain white balance gamma sharpness

6: Mini industrial camera board with mounting bracket for embedded integration

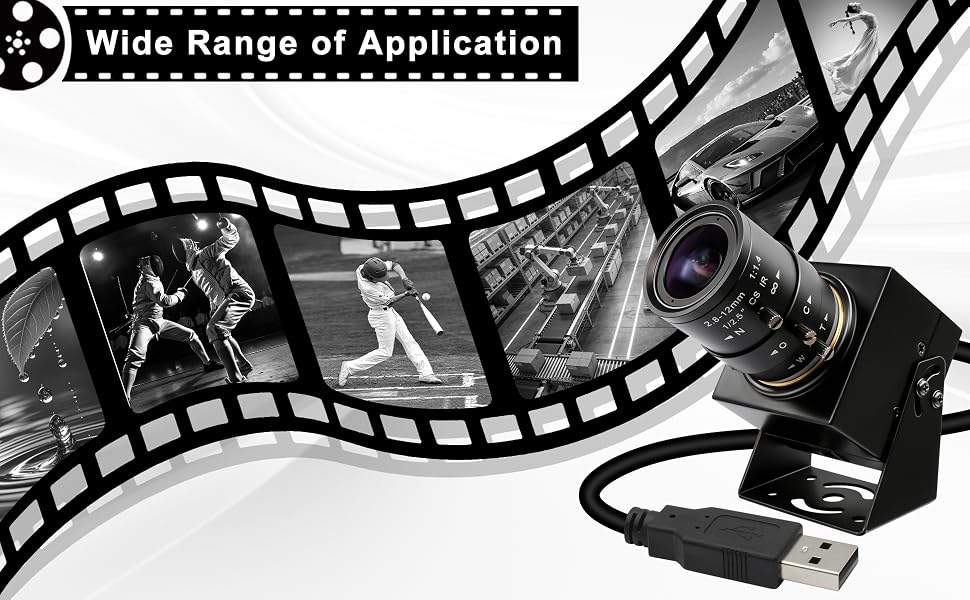

7: Wide application laser engraving 3d printing robotics barcode inspection tracking

120fps Monochrome Global Shutter USB Camera, 480P@210fps 240P@420fps High Speed UVC Webcam, 2.8-12mm 4X Manual Zoom Lens, USB2.0 Plug & Play

  1. Fully compatible with Windows, Linux, Mac, Android, and Raspberry Pi. UVC compliant and driver-free, simply plug and play for instant use.For PC & Devices
  2. Supports Android development boards, Raspberry Pi, and Jetson Nano.For Development Boards

  • USB 2.0 OTG interface
  • Works with popular streaming software: Skype, Zoom, FaceTime, YouTube, and more
  • Compatible with Amcap, OpenCV, VLC, V4L2, and default PC webcam software
  • Supports a wide range of systems: Windows, Linux, Android, Ubuntu, Mac OS, Raspberry Pi

Monochrome High Speed Global Shutter USB Webcam, 120FPS USB2.0 Camera Module, Adjustable Zoom Lens for Barcode Scanning & Industrial Automation

120FPS Monochrome Global Shutter USB Camera, 480P@210fps 240P@420fps High Speed UVC Webcam with 2.8-12mm 4X Manual Zoom Lens, Plug and Play for PC, Ideal for High-Speed Motion Capture, 3D Printing, Machine Vision Analysis Barcode Scanning, Gesture & Eye Tracking, Lightburn Laser Engraving, Robotics and Industrial Automation.

Customer ReviewsPriceMax ResolutionImage SensorLensCompression FormatMini IlluminationMax Frame RatePlug and PlayUVC CompliantSupport OS
Add To BasketAdd To BasketAdd To BasketAdd To BasketAdd To BasketAdd To Basket
3.9 out of 5 stars153.0 out of 5 stars183.9 out of 5 stars153.8 out of 5 stars283.7 out of 5 stars203.9 out of 5 stars10
£175.99£175.99£165.99£165.99£132.99£132.99£152.00£152.00£103.00£103.00£91.00£91.00
4K/2160P4K/2160P4K/2160P4K/3040P5MP/1944P2K/1080P
CMOS imx415CMOS imx415CMOS imx415CMOS IMX577CMOS IMX317CMOS OV4689
MJPEG/YUY2/H.264MJPEG/YUY2/H.264MJPEG/YUY2MJPEG/YUY2MJPEG/YUY2MJPEG/YUY2
5-50mm Optical Zoom Lens2.8-12mm Optical Zoom Lens2.8-12mm Optical Zoom Lens3.6-10mm Optical Zoom Lens5-50mm Optical Zoom Lens5-50mm Optical Zoom Lens
0.2LUX0.2LUX0.2LUX0.1LUX0.2LUX0.1LUX
60fps60fps30fps120fps30fps260fps
✓✓✓✓✓✓
✓✓✓✓✓✓
WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above

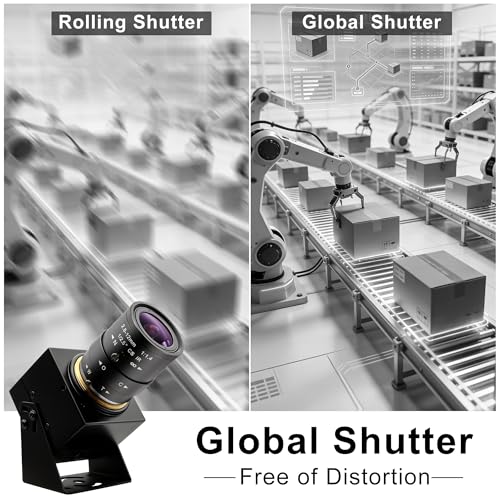

  • Global Shutter Technology: Adopting advanced global shutter design to expose the entire sensor simultaneously, this monochrome camera eliminates rolling artifacts, smear and distortion. It captures ultra-sharp, complete frames of fast-moving objects, perfectly suited for industrial inspection and high-precision scientific analysis.

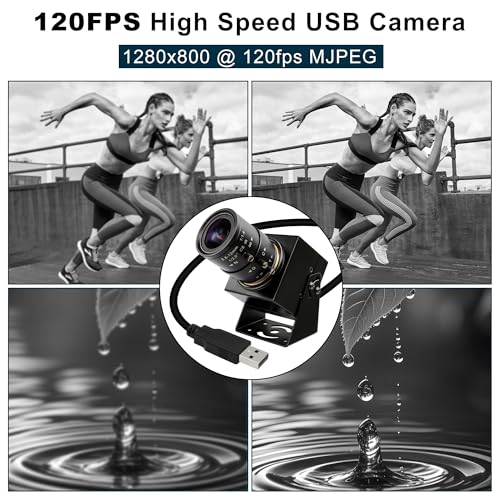

  • 800P 120fps/210fps High Speed Performance: Equipped with 1/4-inch OV9281 global shutter sensor, this USB 2.0 webcam delivers smooth 1280×800 resolution at 120fps MJPEG. 640×480 @ 210fps MJPEG, It provides stable high-speed imaging for precision motion analysis, 3D printer monitoring and industrial dynamic capture tasks.
  • 4X Manual Zoom & High-Sensitivity Monochrome Imaging Features a 2.8-12mm adjustable 4X manual zoom lens for flexible focal length control. The professional monochrome CMOS sensor enhances light sensitivity and contrast, delivering precise, high-detail images even in low-light engineering and research environments.
  • UVC Plug & Play Multi-OS Compatibility: UVC-compliant driver-free design supports instant use via USB connection. Fully compatible with Windows, Linux, macOS, Android and Raspberry Pi. Works well for PC, laptop and embedded system projects with zero complicated setup.
  • Adjustable Parameters & Wide Industrial Applications: Supports full manual tuning of exposure, gain, gamma, sharpness and white balance to adapt to diverse lighting conditions. Rugged mini body with mounting bracket ensures industrial durability, ideal for laser engraving, gesture tracking, robotics, barcode scanning and automation vision tasks.
›
SKU: B077RVM1X7
Weight: 0.1 Kilograms
Brand: ELP
Model: A01
Batteries Included: No
Manufacture: SHENZHENSHIJIAZHIGUANGKEJIYOUXIANGONGSI
Origin: China

Product Description

ELP Monochrome 1280×800 800P High Frame Rate Webcam, Global Shutter USB2.0 Camera, Plug & Play for Raspberry Pi Windows Linux Mac Android

Text reads '120fps/240fps Global Shutter USB2.0 UVC Camera' and '420FPS' and '120FPS'. Camera with lens shown demonstrating frame rate specifications with sequential image samples.Text reads '800P Global Shutter USB2.0 Camera' with labels 'Rolling Shutter' and 'Global Shutter'. Black compact camera with lens mounted on adjustable bracket, USB cable attached, shown with comparison images of shutter types.Text reads 'Product Specifications', 'Model ELP-UB8084003D-UPV2 4-123', 'Sensor 1/4 Inches OV5881 Sensor', 'Lens Parameter CB 2.8-12mm Lens', 'Pixel Size 3 μm × 3 μm', 'Max Resolution 1280×(v)×800 (V)', 'Shutter Microsecond Global Shutter', 'Compression Format Mjpeg or YUV2', 'Dynamic Range 70 dB', 'Sensitivity 3.4v/lux-sec@55lum', 'Min Illumination 0.3 Lux', 'Connecting Port Type USB2.0 High Speed'. Digital camera specifications with product image shown.Text reads 'Wide Range of Application'. Dashboard camera shown with film strip backdrop displaying various recording scenarios including vehicles, people, and outdoor scenes.

120FPS Monochrome Global Shutter USB Camera, 480P@210fps 240P@420fps High Speed UVC Webcam with 2.8-12mm 4X Manual Zoom Lens, Plug and Play for PC, Ideal for High-Speed Motion Capture, 3D Printing, Machine Vision Analysis Barcode Scanning, Gesture & Eye Tracking, Lightburn Laser Engraving, Robotics and Industrial Automation.

ELP 4K USB3.0 HDMI USB Camera Manual Zoom 5-50 mm 10X Webcam 4K 60fps PC Came… ELP HDMI 4K Camera 60fps High Speed Webcam USB 3.0 HDMI Simultaneous Output P… ELP 4K HDMI USB Camera Wide Angle 2.8-12 mm Varifocal Focus Lens Webcam Close… ELP 120fps USB Camera 4K High Speed ​​USB Webcam Golf Swing Cam 12Megapixels … ELP 4K Web Camera, Ultra HD IMX317 USB Conference Varifocal Webcam with 5-50m… ELP USB Camera 1080P High Speed 260fps 5-50mm 10X Optical Zoom Lens 2MP USB W…
Customer Reviews 3.9 out of 5 stars153.0 out of 5 stars183.9 out of 5 stars153.8 out of 5 stars283.7 out of 5 stars203.9 out of 5 stars10
Price £175.99£165.99£132.99£152.00£103.00£91.00
Max Resolution 4K/2160P 4K/2160P 4K/2160P 4K/3040P 5MP/1944P 2K/1080P
Image Sensor CMOS imx415 CMOS imx415 CMOS imx415 CMOS IMX577 CMOS IMX317 CMOS OV4689
Lens MJPEG/YUY2/H.264 MJPEG/YUY2/H.264 MJPEG/YUY2 MJPEG/YUY2 MJPEG/YUY2 MJPEG/YUY2
Compression Format 5-50mm Optical Zoom Lens 2.8-12mm Optical Zoom Lens 2.8-12mm Optical Zoom Lens 3.6-10mm Optical Zoom Lens 5-50mm Optical Zoom Lens 5-50mm Optical Zoom Lens
Mini Illumination 0.2LUX 0.2LUX 0.2LUX 0.1LUX 0.2LUX 0.1LUX
Max Frame Rate 60fps 60fps 30fps 120fps 30fps 260fps
Plug and Play ✓ ✓ ✓ ✓ ✓ ✓
UVC Compliant ✓ ✓ ✓ ✓ ✓ ✓
Support OS WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above
