ELP Global Shutter Color USB3.0 Camera,120FPS 200FPS Ultra

ELP Global Shutter Color USB3.0 Camera

ELP Global Shutter Color USB3.0 Camera,120FPS 200FPS Ultra High Frame Rate Webcam,1920×1200 Max Resolution with 2.8-12mm 4X Manual Zoom Lens,Plug and Play for High Speed Motion Analysis 3D Printe

ELP 1200P@120fps Ultra High Frame Rate USB3.0 Camera, 80fps/120FPS/ 200FPS Fast Shooting Webcam for High Speed Motion Analysis

ELP 2.3MP Global Shutter USB 3.0 Camera features AR0234 sensor, max 1920×1200 resolution and up to 120FPS/200FPS high frame rate for distortion-free fast motion capture. Built with 2.8-12mm 4X manual zoom lens and adjustable image settings, it supports MJPEG & YUY2 formats. Plug and play design works with Windows, Linux, Mac OS and Android. Wide temperature tolerance ensures stable performance for 3D printing, motion analysis and industrial machine vision.

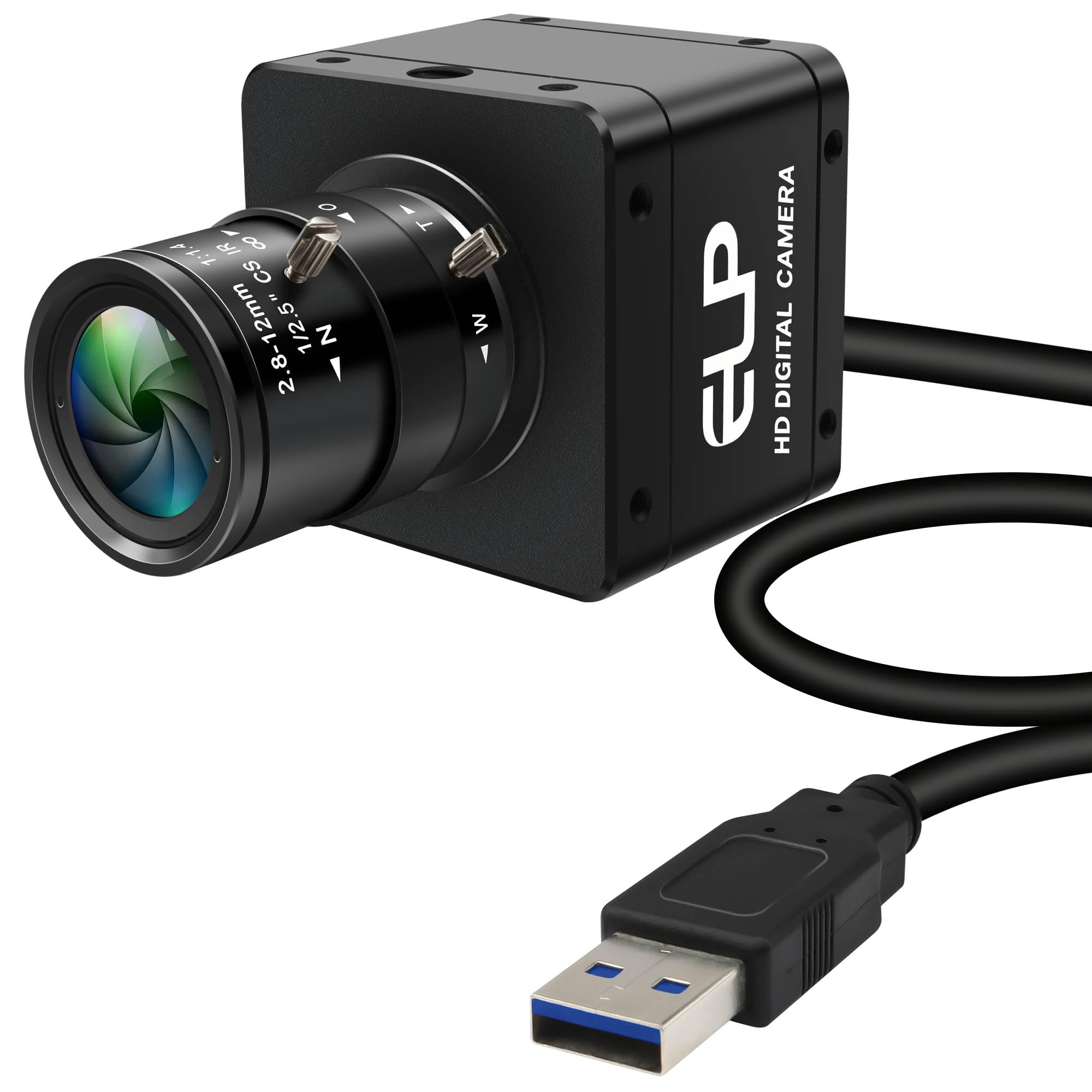

ELP 2.3 Megapixels Global Shutter Color USB Camera, USB3.0 Low Latency Industrial Camera, No Motion Blur for Fast Moving Object Capture

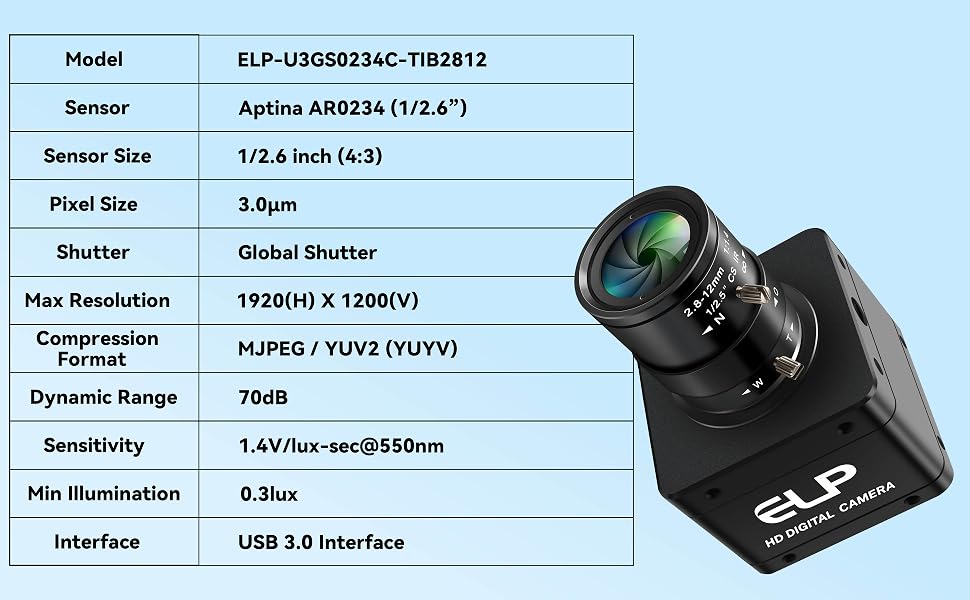

2.3MP Global Shutter Color USB3.0 Cameras

Sensor: 1/2.6 Inches AR0234 Sensor

Shutter Type: Global Shutter

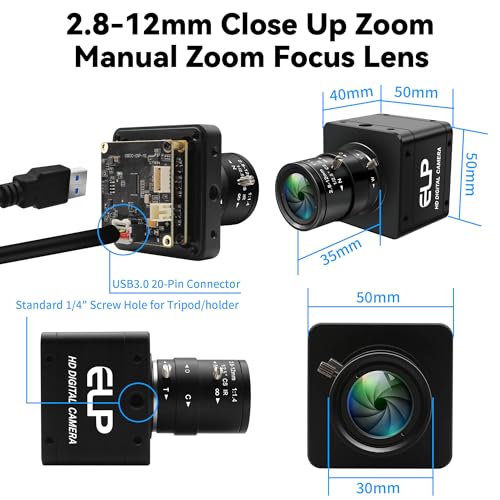

Interface & Connector: USB 3.0 20-PIN Connector (USB 3.0 Type C Port optional)

Max Resolution: 1920(H) *1200 (V)

Default Resolution:1920(H) *1200 (V)

Dynamic Range:70 dB

Compression format:MJPEG/YUV2(YUYV)

Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure

Power Supply ：USB3.0 20-Pin Power Supply

Operating Voltage： DC 5V

Working Current：165mA- 210mA

Working Temperature: -10°C to 70°C, Storage Temperature：-20°C to 80°C

Operating System Request: Win10/Win11 etc. Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later , Android 4.0 or above with UVC

1920×1200 HD Resolution Industrial Camera, IFWATER USB3.0 Webcam for Clear Detailed Image Shooting,Golf Swing & 3D Printer Machine Industrial Vision

Performance:

Resolution & Frame Rate under USB3.

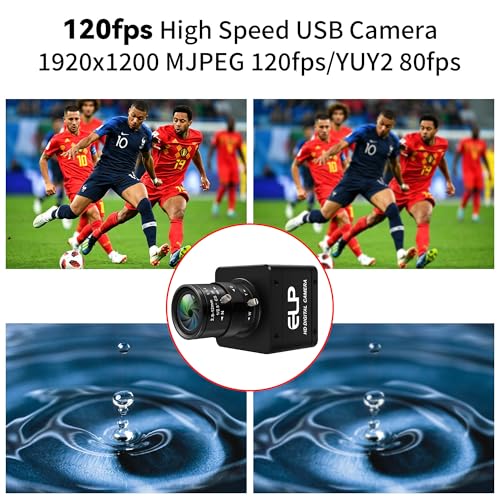

1920×1200 MJPEG 120fps/YUY2 80fps 1920×1080 MJPEG 120fps/YUY2 80fps

1600×1200 MJPEG 120fps/YUY2 80fps 1280×960 MJPEG 120fps/YUY2 120fps

1280×720 MJPEG 200fps/YUY2 200fps 640×480 MJPEG 200fps/YUY2 200fps

512×512 MJPEG 120fps/YUY2 120fps

Resolution & Frame Rate under USB2.0

1920×1200 MJPEG 120fps/ YUY2 5fps 1920×1080 MJPEG 120fps/ YUY2 5fps

1600×1200 MJPEG 120fps/ YUY2 5fps 1280×960 MJPEG 120fps/ YUY2 5fps

1280×720 MJPEG 200fps/ YUY2 10fps 640×480 MJPEG 200fps/ YUY2 30fps

512×512 MJPEG 120fps/ YUY2 10fps

Multi-System Compatible USB3.0 Camera, Plug and Play Global Shutter Webcam for Computer Industrial Equipment, 1200P Close-up USB Camera

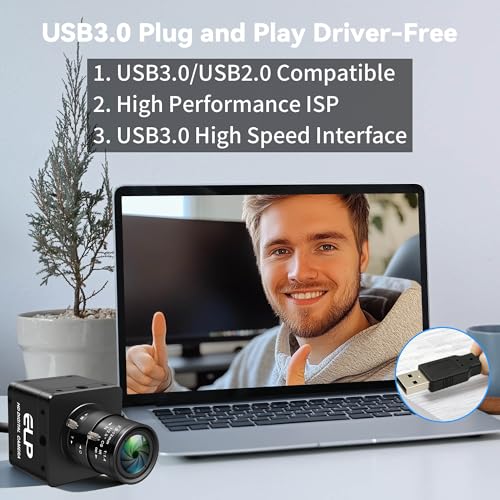

  1. Fully compatible with Windows, Linux, Mac, Android, and Raspberry Pi. UVC compliant and driver-free, simply plug and play for instant use.For PC & Devices
  2. Supports Android development boards, Raspberry Pi, and Jetson Nano.For Development Boards

  • USB 2.0 OTG interface
  • Works with popular streaming software: Skype, Zoom, FaceTime, YouTube, and more
  • Compatible with Amcap, OpenCV, VLC, V4L2, and default PC webcam software
  • Supports a wide range of systems: Windows, Linux, Android, Ubuntu, Mac OS, Raspberry Pi

ELP 1200P Golf Swing Camera, Industrial Visual Detection Webcam, IFWATER High Speed Global Shutter Camera for Factory Inspection & Motion Tracking

1: If you encounter lighting issues during use: simply turn the knob at the bottom of the lens to adjust the aperture and control brightness. You may also turn the knob on the other end for manual focusing.

2: If you use this device for DIY projects such as 3D printer monitoring, please ensure the environment is well-lit.

3: This camera is extremely easy to install and compatible with all major platforms. The adjustable functions ensure you get the best angle and lighting for your needs.

4: Wide Compatibility for Multi Devices: Works seamlessly with laptops, Android devices, Raspberry Pi and more industrial or DIY platforms, ideal for machine vision, industrial monitoring, computer vision projects and home experimental applications.

120fps Global Shutter Color USB3.0 Camera,120FPS 200FPS Ultra Fast Shooting Webcam,1920X1200 Max Resolution,Multi-System Compatible, Plug & Play

Customer ReviewsPriceMax ResolutionImage SensorLensCompression FormatMini IlluminationMax Frame RatePlug and PlayUVC CompliantSupport OS
Add To BasketAdd To BasketAdd To BasketAdd To BasketAdd To BasketAdd To Basket
3.9 out of 5 stars153.0 out of 5 stars183.9 out of 5 stars153.8 out of 5 stars283.7 out of 5 stars203.9 out of 5 stars10
£175.99£175.99£165.99£165.99£132.99£132.99£152.00£152.00£103.00£103.00£91.00£91.00
4K/2160P4K/2160P4K/2160P4K/3040P5MP/1944P2K/1080P
CMOS imx415CMOS imx415CMOS imx415CMOS IMX577CMOS IMX317CMOS OV4689
MJPEG/YUY2/H.264MJPEG/YUY2/H.264MJPEG/YUY2MJPEG/YUY2MJPEG/YUY2MJPEG/YUY2
5-50mm Optical Zoom Lens2.8-12mm Optical Zoom Lens2.8-12mm Optical Zoom Lens3.6-10mm Optical Zoom Lens5-50mm Optical Zoom Lens5-50mm Optical Zoom Lens
0.2LUX0.2LUX0.2LUX0.1LUX0.2LUX0.1LUX
60fps60fps30fps120fps30fps260fps
✓✓✓✓✓✓
✓✓✓✓✓✓
WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above

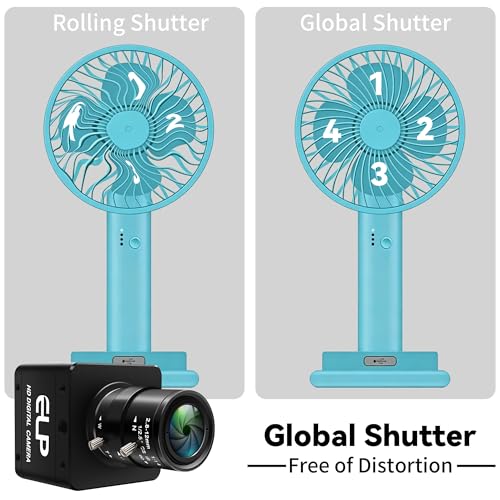

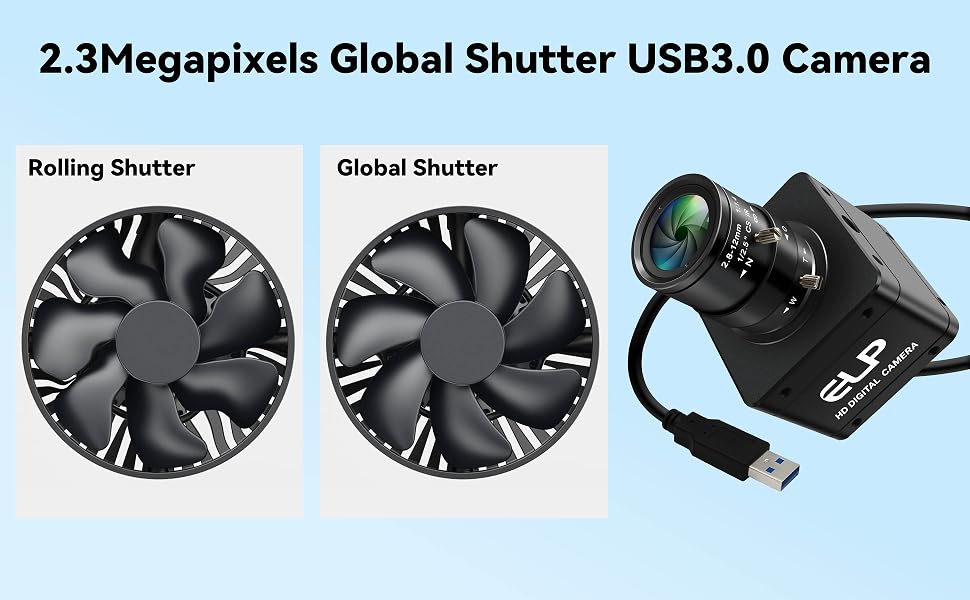

  • High Speed Global Shutter Performance: Equipped with 1/2.6 inch AR0234 global shutter sensor, this 2.3MP color camera effectively eliminates motion blur for fast-moving objects. It delivers up to 120FPS and 200FPS ultra high frame rate at multiple resolutions, ideal for high speed motion capture, analysis and professional shooting tasks.
  • USB 3.0 High-speed Transmission & Multiple Formats: Features standard USB 3.0 interface, supporting fast data transfer. Max resolution reaches 1920×1200, and it works with MJPEG and YUY2 compression formats. Stable frame rate output is available under both USB 3.0 and USB 2.0 connection modes to meet various usage needs.
  • 4X Manual Zoom & Customizable Image Settings: Comes with a 2.8-12mm 4X manual zoom lens to freely adjust viewing distance and shooting range. You can tweak brightness, contrast, saturation, white balance, exposure and other image parameters, achieving personalized visual effects for different scenes.
  • Industrial-grade Durability & Flexible Installation: Designed with a wide operating temperature range from -10°C to 70°C, it runs steadily in complex industrial environments. Powered by DC 5V USB supply. Perfect for 3D printers, machine vision, industrial inspection and other commercial & DIY projects.
  • Plug & Play & Wide System Compatibility: UVC compliant for true plug and play, no extra driver installation required. It is fully compatible with Windows, Linux, Mac OS and Android systems.
›
SKU: B077T23XG4
Weight: 0.01 Kilograms
Brand: ELP
Model: 021
Manufacture: SHENZHENSHIJIAZHIGUANGKEJIYOUXIANGONGSI
Origin: China

Product Description

ELP 1200P@120fps Ultra High Frame Rate USB3.0 Camera, 80fps/120FPS/ 200FPS Fast Shooting Webcam for High Speed Motion Analysis

aplus content imageaplus content imageaplus content imageaplus content image
ELP 4K USB3.0 HDMI USB Camera Manual Zoom 5-50 mm 10X Webcam 4K 60fps PC Came… ELP HDMI 4K Camera 60fps High Speed Webcam USB 3.0 HDMI Simultaneous Output P… ELP 4K HDMI USB Camera Wide Angle 2.8-12 mm Varifocal Focus Lens Webcam Close… ELP 120fps USB Camera 4K High Speed ​​USB Webcam Golf Swing Cam 12Megapixels … ELP 4K Web Camera, Ultra HD IMX317 USB Conference Varifocal Webcam with 5-50m… ELP USB Camera 1080P High Speed 260fps 5-50mm 10X Optical Zoom Lens 2MP USB W…
Customer Reviews 3.9 out of 5 stars153.0 out of 5 stars183.9 out of 5 stars153.8 out of 5 stars283.7 out of 5 stars203.9 out of 5 stars10
Price £175.99£165.99£132.99£152.00£103.00£91.00
Max Resolution 4K/2160P 4K/2160P 4K/2160P 4K/3040P 5MP/1944P 2K/1080P
Image Sensor CMOS imx415 CMOS imx415 CMOS imx415 CMOS IMX577 CMOS IMX317 CMOS OV4689
Lens MJPEG/YUY2/H.264 MJPEG/YUY2/H.264 MJPEG/YUY2 MJPEG/YUY2 MJPEG/YUY2 MJPEG/YUY2
Compression Format 5-50mm Optical Zoom Lens 2.8-12mm Optical Zoom Lens 2.8-12mm Optical Zoom Lens 3.6-10mm Optical Zoom Lens 5-50mm Optical Zoom Lens 5-50mm Optical Zoom Lens
Mini Illumination 0.2LUX 0.2LUX 0.2LUX 0.1LUX 0.2LUX 0.1LUX
Max Frame Rate 60fps 60fps 30fps 120fps 30fps 260fps
Plug and Play ✓ ✓ ✓ ✓ ✓ ✓
UVC Compliant ✓ ✓ ✓ ✓ ✓ ✓
Support OS WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above
