ESP32-C5 2.8inch Touch LCD Display Development Board (No

ESP32-C5 2.8inch Touch LCD Display Development Board (No BATT)

Overview

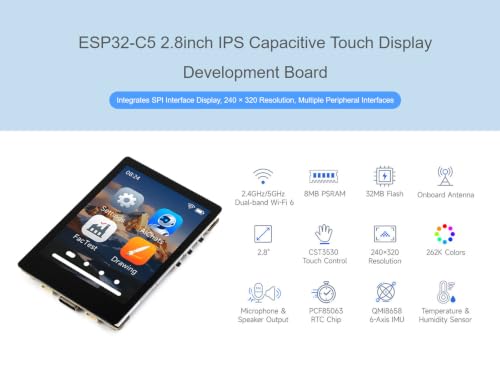

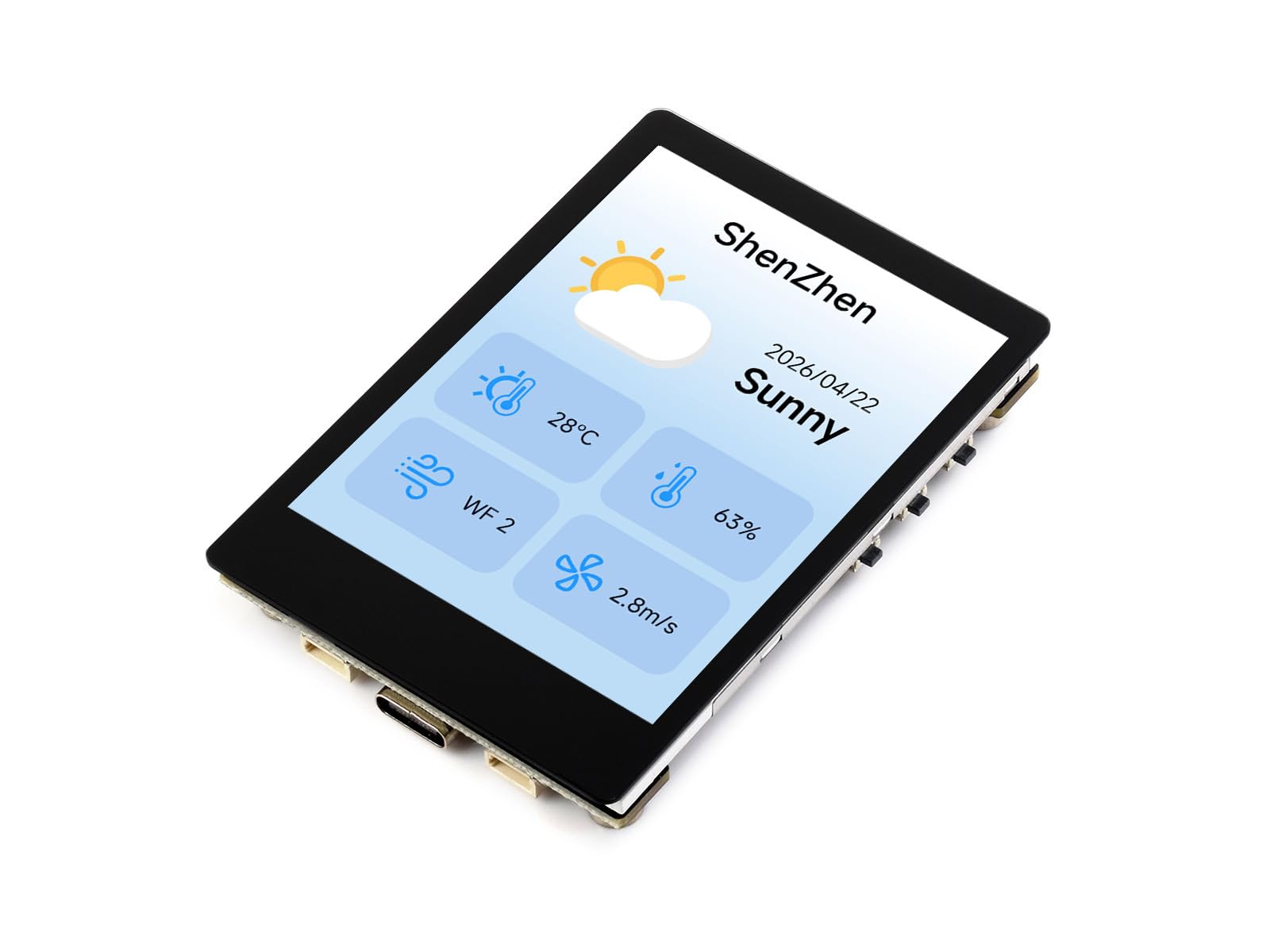

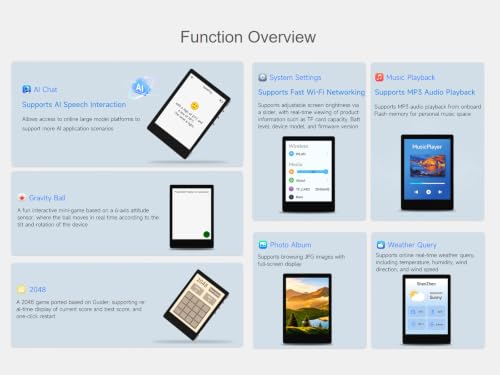

ESP32-C5-Touch-LCD-2.8 dev board with onboard 2.8inch LCD display, 6-axis sensor, temperature and humidity sensor, and TF card slot. It allows access to online AI large model platforms, enabling intelligent voice interaction and continuous upgrades. It comes pre-installed functions such as AI conversation, audio playback, a gravity ball game, and weather.

Features
Equipped with ESP32-C5-WROOM-1 series module, featuring a RISC-V 32-bit processor, up to 240MHz main frequency
Integrated with 384KB Static RAM, 320KB ROM, 8MB PSRAM, and 32MB Flash, meeting the requirements for program execution, graphical interface, and data storage
Integrated 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications
Onboard Batt recharge management module, with reserved 3.7V MX1.25 Lithium Batt header for connecting external Batt
Type-C port, improving device compatibility, easier to use

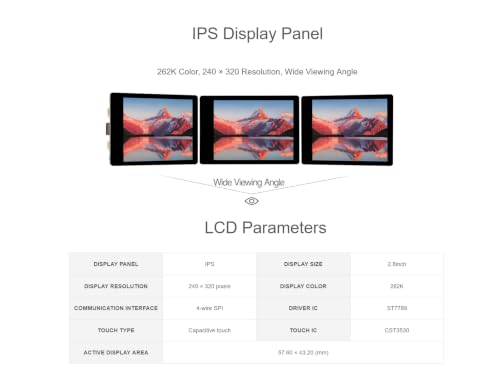

Onboard 2.8inch LCD display, 240 × 320 resolution, 262K color
Supports capacitive touch controlled via I2C interface, with interrupt support
Adapting UART, I2C and some IO interfaces, integrates full-speed USB port

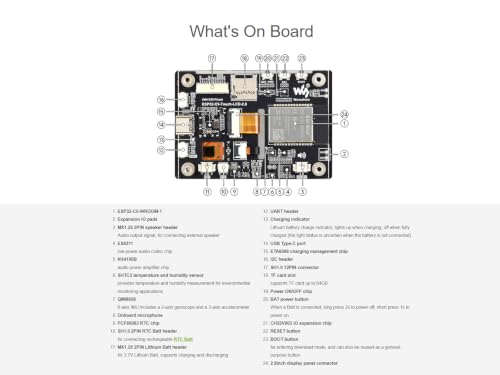

Onboard QMI8658 6-axis sensor, RTC sensor, SHTC3 temperature and humidity sensor, TF card slot, etc.
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Onboard ES8311 audio codec chip, NS4150B power amplifier chip, microphone, and speaker
Supports ESP-IDF, Arduino, and other development environments, with rich resources for quick and easy development

Package Content
ESP32-C5-Touch-LCD-2.8 host x1
SH1.0 12PIN cable ~100mm x1
SH1.0 4PIN cable ~100mm x2
8Ω 2W speaker x1

Development Resources
https://docs.waveshare.com/ESP32-C5-Touch-LCD-2.8

  • Equipped with the ESP32-C5-WROOM-1 series module, featuring a RISC-V 32-bit processor, up to 240MHz main frequency. Integrated 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications
  • Integrated with 384KB Static RAM, 320KB ROM, 8MB PSRAM, and 32MB Flash, meeting the requirements for program execution, graphical interface, and data storage. Type-C port, improving device compatibility, easier to use
  • Onboard 2.8inch LCD display, 240 × 320 resolution, 262K color. Supports capacitive touch controlled via I2C interface, with interrupt support. Onboard QMI8658 6-axis sensor, RTC sensor, SHTC3 temperature and humidity sensor, TF card slot, etc.
  • Onboard Batt recharge management module, with reserved 3.7V MX1.25 Lithium Batt header for connecting external Batt.Adapting UART, I2C and some IO interfaces, integrates full-speed USB port. Supports accurate control such as flexible clock and multiple power modes
  • Supports ESP-IDF, Arduino, and other development environments, with rich resources for quick and easy development
›
SKU: B0HBWX1K2J
Brand: Waveshare
Manufacture: Waveshare
