Lemorele Laptop Docking Station Dual Monitor, 12-in-1 USB C

Lemorele Laptop Docking Station Dual Monitor, 12-in-1 USB C Hub 10Gbps USB Triple Display with 2HDMI,VGA,4 10Gbps USB 3.1/2.0,USB C 3.1,PD,SD/TF,3.5MM for HP,Surface,MacBook Laptops

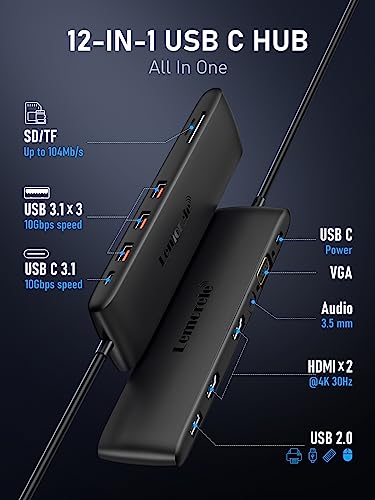

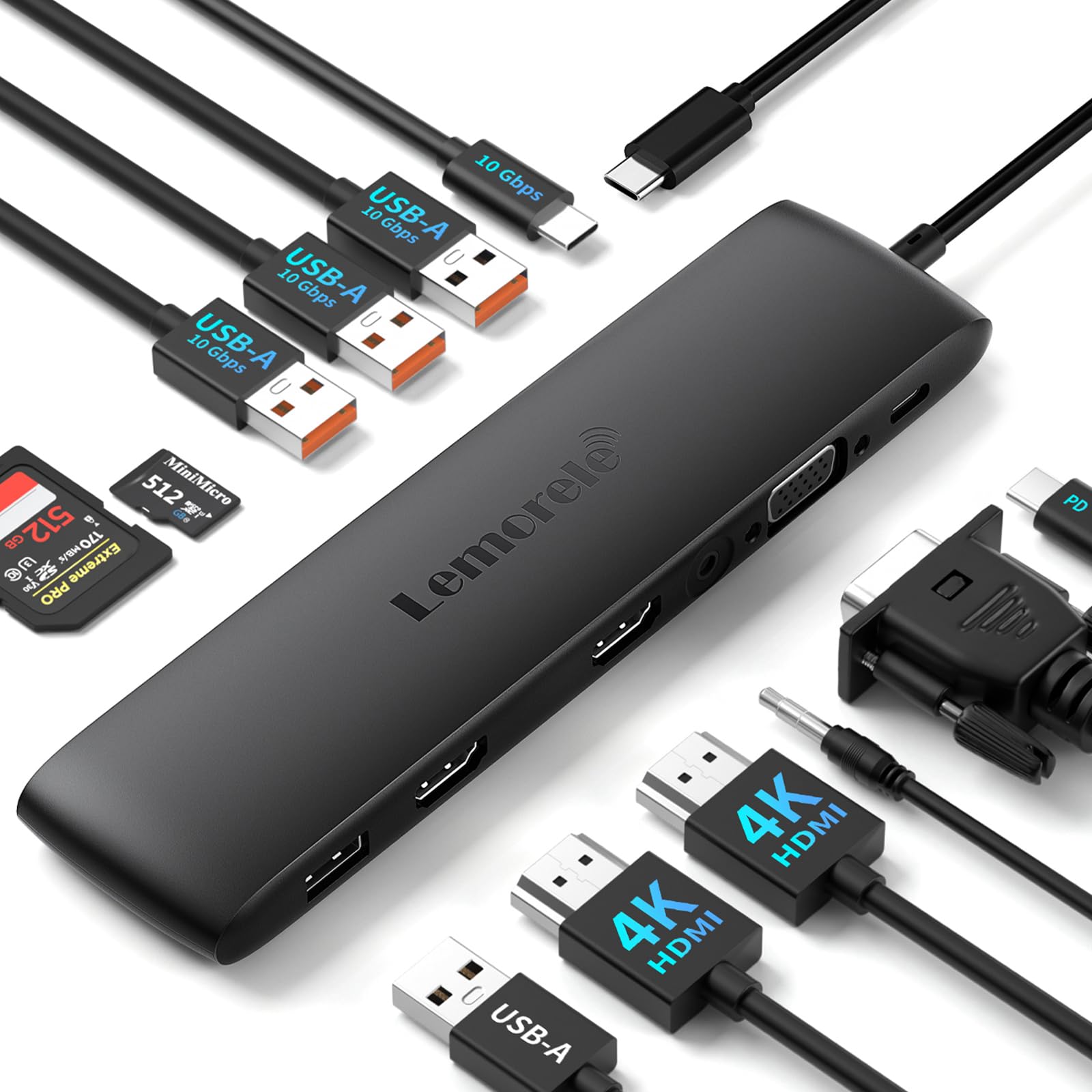

Interface:

2 * HDMI ports: Max resolution up to 4K@60Hz (While source is DP1.4) (HDMI 1 4K@60Hz, HDMI 2 4K@30Hz, 2 HDMI: 4K@30Hz)

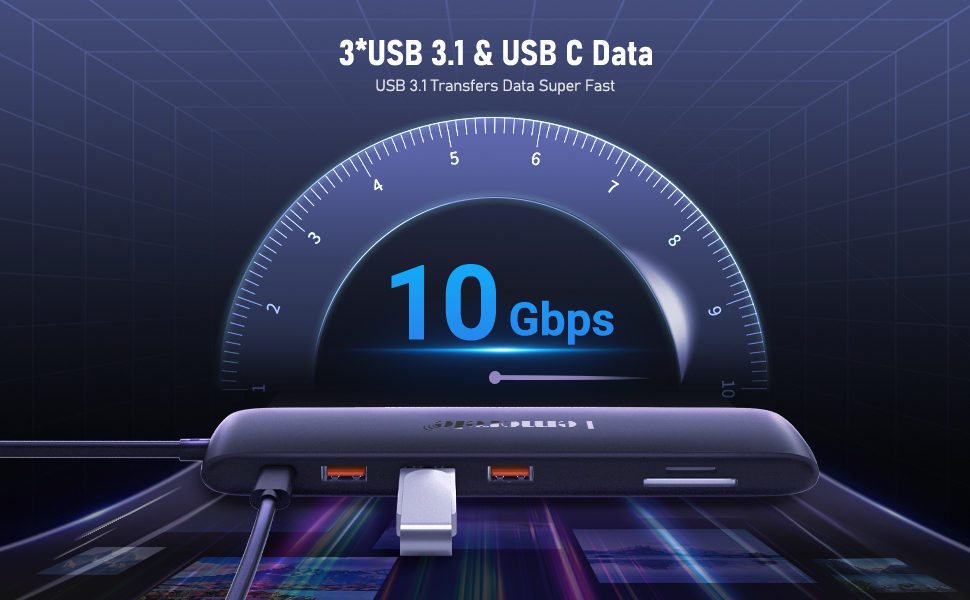

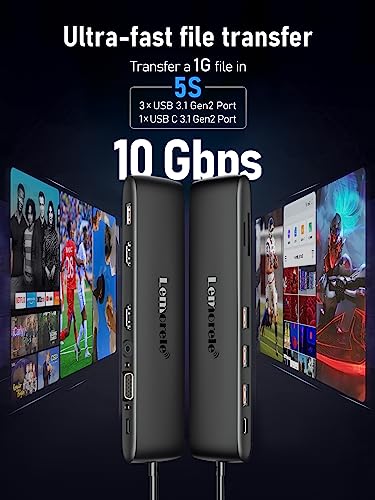

1 * USB 2.0 ports & 3 * USB 3.1 port: Data transfer speed up to 10Gbps

1 * VGA port: Resolution 1080P@60Hz

1 * PD 3.0: Up to 100W power delivery

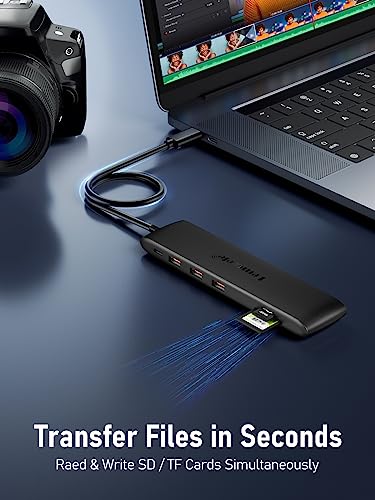

1 * SD/Micor card slot: Speed up to 104MB/s

1 * Mic & Audio 2 in 1 Jack: 3.5mm Jack

1* USB C Data Transfer: Data transfer speed up to 10Gbps

Please note:

Please connect power to charge your laptop while connecting the external devices. (Please use a PD charger with more than 65W and the usb c port of the source laptop is support PD protocol. ).The Type C PD port both can data transfer and power charge.When the dual monitor USB C dock is used, it is normal to cause the rapid power consumption of the laptops, because the computer needs to provide a certain power to it work.
The USB C computer docking station can't be used with web cam because the output power is not enough.
Please note that the resolution of this docking station does not support 5120*1440 due to the limit of intel chip, the widest only can reach 3840, can't reach 5120.

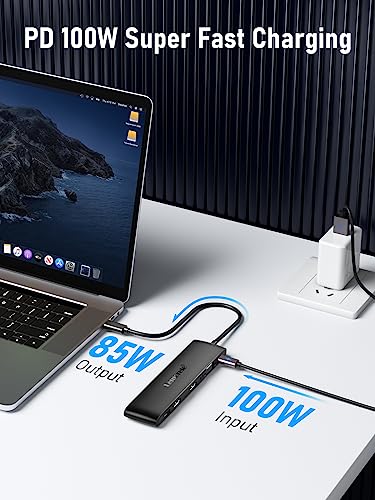

100W Pass-Through Charging

Support for max 100W USB C Pass-through Charging over the Type-C port, to keep your laptop at a charging pace and always powered.

Note: The macbook adapter will occupy 10W of power to work and if your laptop own a AC adapter, you'd better use the original charger directly cause it will provide the fastest charge speed and HP/Dell Laptop do not allow 3rd party charger to charge their laptop.

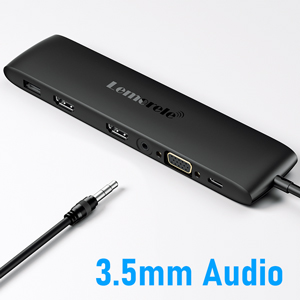

3.5 mm Audio and Microphone

This usb c dock have a 3.5mm jack for you to put in your wired headset or microphone, so that you can enjoy music without disturbing others.

Easy to Carry Around

Portable size 6.77*1.65*0.62in, cable length 7.87in, small and light. Indispensable for the love of travel and improving work efficiency, it can save a lot of space on the desk.

Comes with 2 HDMI and VGA ports – Allows you to connect up to 3 external monitors at the same time.

HDMI Port 1: Max resolution up to 4K @30Hz

HDMI Port 2: Max resolution up to 4K @30Hz

VGA Port : Max resolution up to 1080P@60Hz

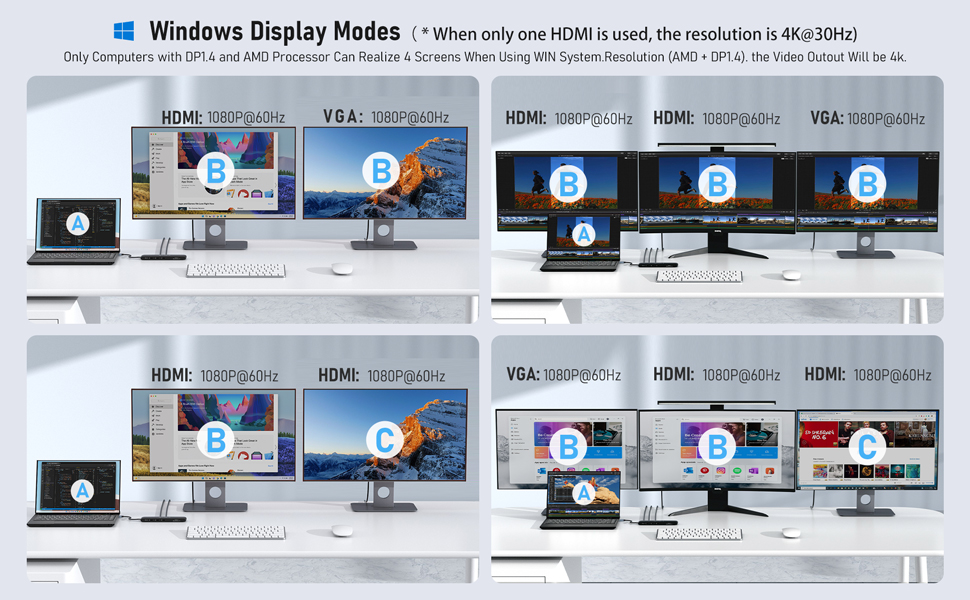

Triple Display for Windows/Linux System Laptop

Mirror Mode: AA,AAA

Extend Mode:

PC+1*HDMI 1: A+B

PC+1*HDMI 2: A+B

PC+HDMI 1+ HDMI 2: A+B+C

PC+VGA: A+B

PC+VGA+HDMI 1/HDMI 2: A+B+C

PC+VGA+HDMI 1+HDMI 2: A+B&B+C

The 2 HDMI & VGA port of this USB C Docking Station could be use at the same time, but because of the Intel graphics card only supports 3-monitor displays, one of 4 monitors will not displayed.

Setting: Turn off the laptop screen (click “Second screen only”) after connecting.

Mirror Mode: AA,AAA

Extend Mode

· PC+HDMI 1: A+B

· PC+HDMI 2: A+B

· PC+HDMI 1+HDMI 2: A+B+B

· PC+VGA: A+B

· PC+VGA+HDMI 1: A+B+B

· PC+VGA+HDMI 2: A+B+B

· PC+VGA+HDMI 1+HDMI 2: A+B&B+B

**Please Note**

All external monitor images are the same on mac OS due to OS system limitation
Extend Mode: For Apple laptop, the 3 external monitors display the same content, but the Apple laptop can display different content.
MacBook M1 2020 can only be expanded to one monitor
The resolution of all monitors is limited to 1920×1080 @ 60Hz (maximum) If you connect VGA,. If you connect 3 monitors, it is possible that one of the monitor screen resolutions is lower than 1920×1080 @ 60Hz (depending on the monitor and bandwidth).

Important:The resolution will be downward compatible with 1080P/60Hz when Dual HDMI and VGA work simultaneously, the actual resolution of monitors depends on the laptop's bandwidth and the resolution of connected monitors.

Comatible with (Not at full listed):

Surface: Microsoft Book 2/ Go/ Laptop 3; Pro 7/ Pro 5/Pro X

Google: Chromebook Pixel (2016/2017)/Chromebook C340-15; Google Slate/Google Pixelbook

Acer: Aspire 5 2019; D17w3 Aspire c24-865; Swift 1/ Swift 3 laptiop; Swift 7 sf714-52t-75r6 Laptop

Huawei: MateBook X Pro 13.9/ MateBook 13/ MateBook E/MateBook X/ Mate10/Mate10 pro/ Mate20/ Mate20 pro/ Mate30/ Mate30 pro/ P20/ P20 Pro/ P30 Pro

Asus: 13'' Zenbook UX330UA/ Zenbook flip ux370u/ Zenbook ux434f/ ZenBook Flip 14 UX461UN-DS74T; TUF Gaming A15 Gaming Laptop; Zephyrus G14; Rog GX501

Samsung: Galaxy S10E/ S10+/ S10/ S9+/ S9/ S8+/ S8 Plus; Note 10/ 9/ 8 ; Galaxy Tab S5e/ Galaxy Tab S4; Galaxy S20 Ultra

Apple: MacBook/ MacBook Pro (2020/2019/2018/2017/2016); Macbook Air 2018-2020; Mac mini 2018-2020; iPad Pro 2018; iMac 27 2019 Extended HDMI Monitor; iMAC 2020

Dell: XPS 9380/ XPS 13 9365/ XPS 15 2018/ XPS 9350/ XPS 13 9300/ New XPS 15; Latitude 7490/ Latitude 7480/ Latitude 7280/ Latitude 7390/Latitude 7389/ Latitude 7300/ Latitude 5500/ Latitude 5490/ Latitude 3500/ Latitude 5310/ Latitude 5290/ Latitude 7400/ Latitude 5480/ Latitude 5400/ Latitude 5410/ Latitude 3400; Precision 5530/ Precision 5540/ Precision 5550/ Precision 7520 / Precision 7730 / Precision 7750; Laptop 5590; Inspiron 7573/Inspiron 7300; G7 7790

HP: Spectre Laptop 13-af001TU/ Spectre x360 13t/ Spectre x360 15/ Spectre x360 15t/ Spectre Folio (13t-ak000cto)/ Spectre 360 laptop/ Spectre x369/ Spectre x360 Convertible 15-eb0xxx; Elitebook 840 G5 series/ Elitebook X2/ Elitebook x360 1030 G3/ Elitebook 745 g6/ Elitebook 830 g6/ 2018 Elite 800 G4/ Elitebook 850 g5; Envy Geforce mx250/ Envy x360 Laptop (15z-ds100)/ Envy x360 15-ds1063cl/ ENVY Laptop 13-aq1/ ENVY 13 (13-ad000, 13-ad100) Series; Zbook 15u G3/ Zbook 17 G4/ Zbook 16 G6/ Zbook studio z5; Omen laptops; Probook 440 G7/ ProBook 450 G7

Lenovo: Yoga 370/ Yoga 720-13IKB/ Yoga 730/ Yoga 900-13ISK/ Yoga 910/ Yoga 920/ Yoga 930/ Yoga 940-14IIL / 3rd generation Thinkpad Yoga / Yoga15 Ultrabook Pro / Yoga C930/ Yoga c940/ Yoga C740-15IML/ Yoga 7i; Thinkpad E590/ Thinkpad P72/ Thinkpad T470/ Thinkpad T470s/ Thinkpad T490/ Thinkpad T490s/ Thinkpad X1 Carbon (2019 model) / Thinkpad Carbon X1 Gen6/ ThinkPad X1 Extreme/ ThinkPad x1 Carbon Gen 8 – 20U9002NUS/ ThinkPad P52/ ThinkPad E14/ ; Flex 14 IML (81XG); Legion Y530/ Legion 5-15IMH05H/ Legion-5-17-82GN0000US; Lenovo C930/ T480s/ X390/ 81N8/ Y720; Chromebook Flex 5; Ideapad 720S/ Ideapad S540/ Ideapad 5 81yk006xus

Other :

SanDisk Cruise Glide; Razer Blade 2017 (gtx 1060); Google Pixel book go 2019/2020; LG Gram 17 laptop; Philips PHL 328E9Q

If your laptop not included in the list, you can refer to your laptop's manual to figure out which your usb c type is.

Or please let us know, we will help you to confirm if the adapter compatible with your device.

Check Offer Price

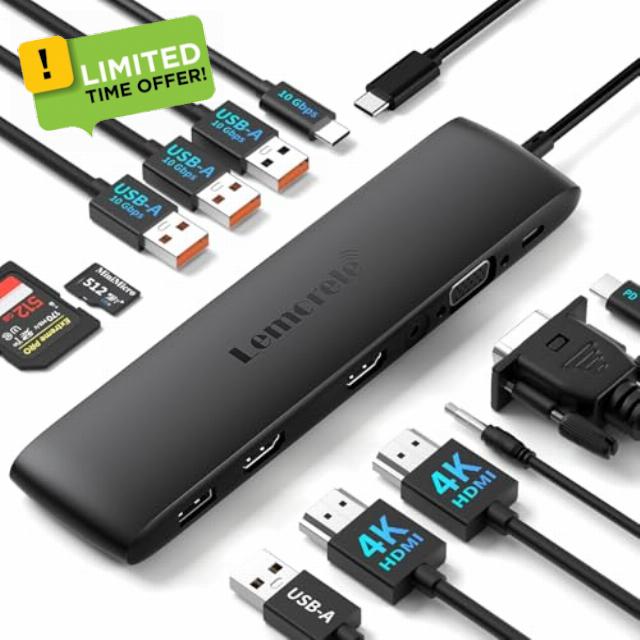

【12 in 1 Laptop Docking Station】USB C thunderbolt dock can easily expand the USB C/thunderbolt 3 port of your Laptops into 12 Ports: 2 x 4K HDMI, 1080P VGA, 3 USB 3.1（10Gbps), 1 USB 2.0, SD/TF card reader slot, 3.5mm microphone/audio jack, USB C power delivery 100W and USB C data transfer(10Gbps). This thunderbolt docking station does not need to install any driver, just plug and play, fully meets your daily use.
【Mirror Mode for MacOS Laptop】Limited by the Apple Mac OS system itself, this dual monitor USB C hub for MacOS laptops just supports mirror mode(SST Mode), and DOES NOT SUPPORT EXTEND MODE(MST mode). For the mirror mode, all the screens' images will same(A-AAA). For the extended mode of the macOS laptop, the images of the external monitors will show the same(A-BBB).

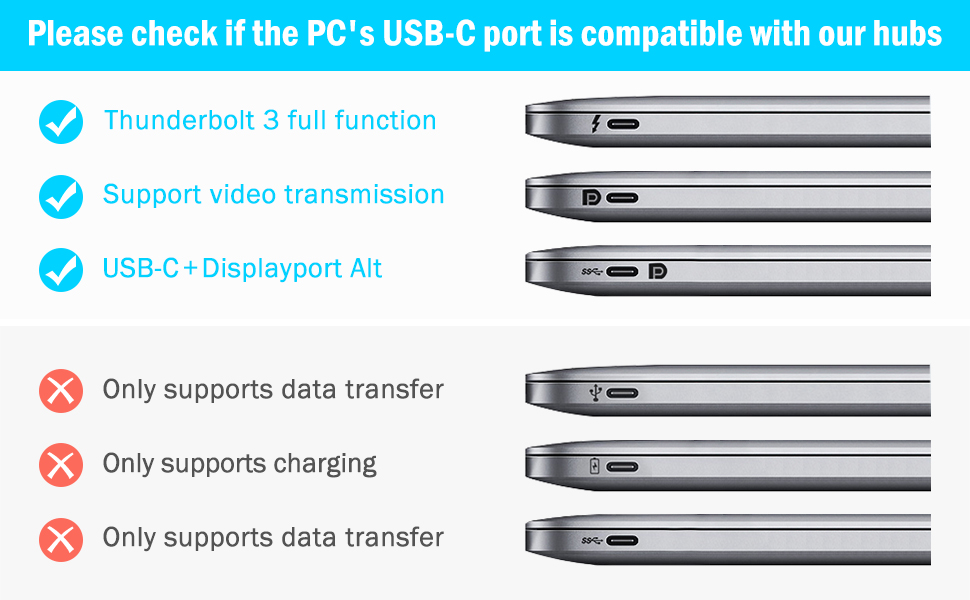

【Strong Compatibility(Plug and Play)】This laptop docking station compatible with most Thunderbolt 3 devices(Macbook Pro 2020/2019/2018 /2017/2016,MacBook Air 2020/2019/2018, Dell XPS13/15,Lenovo Yoga 720/910/920/930,Microsoft Surface Book 2/ Surface Go/ Surface Laptop 3,Dell Latitude 13 7000/Latitude 13 E7370 etc ►Note: Please make sure your laptop supports DispalyPort Alternate Mode. The incompatible laptops can not use the HDMI/VGA ports
【Triple Monitor Docking Station】This USB C docking station allows you to mirror or extend 3 monitors with 2 HDMI and VGA at the same time which provides you with more working space. This dual monitor laptop dock with 3 high-definition video output ports, under Extended Mode, you can enjoy 3 multiple displays from 2*HDMI( Max 4K@30Hz), 1*VGA(Max 1080@60Hz) and 1*screen of the laptop (One screen will black when using 2 HDMI, VGA and laptops simultaneously with windows laptop).
【USB-C Charging Port–100W PD】This USB C docking station dual monitor supports up to 100W input & 87W(safe)output into your laptop while connecting high power consumption multiple peripherals, worry-free about power storage. ►Note: please make sure your laptop's USB C port supports power delivery protocol, If a system warning when charging with this docking station usb c hub and please check that the power adapter you are using (not included) is at least 65W.

›

SKU:	B0CCRQ9V2H
Weight:	85 Grams
Brand:	Lemorele
Colour:	Black (12 in 1)
Manufacture:	Lemorele
Colour:	Black (12 in 1)
