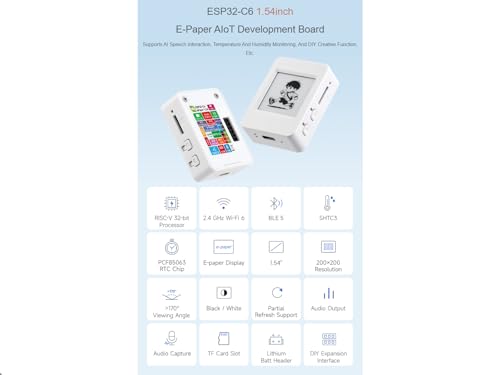

Waveshare ESP32-C6 1.54inch e-Paper AIoT Development Board

BLE 5

Waveshare ESP32-C6 1.54inch e-Paper AIoT Development Board 200 × 200 Resolution Black/White epaper Display Supports Wi-Fi, BLE 5,AI Speech Interaction,Without Ba

Features

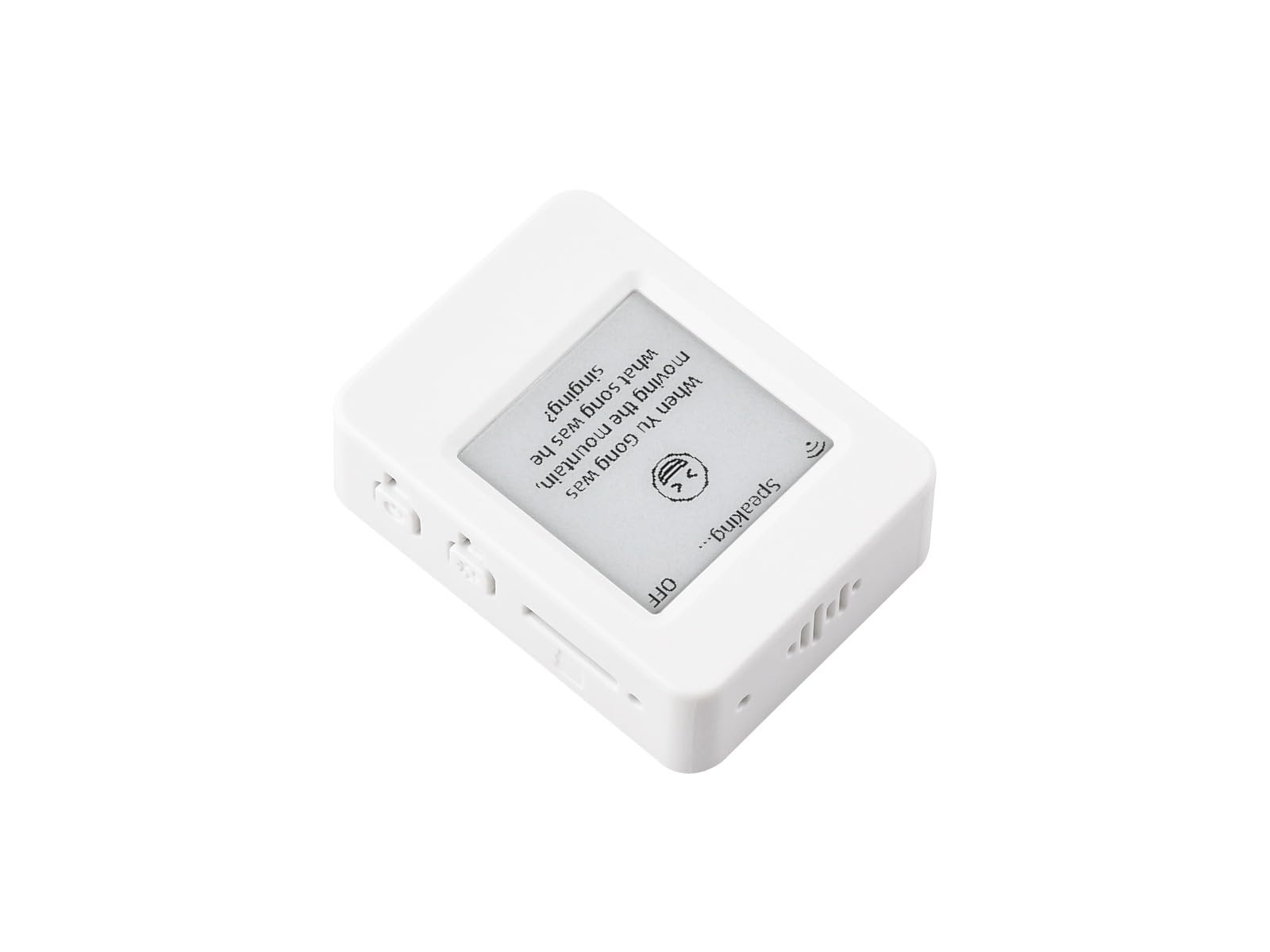

The ESP32-C6-ePaper-1.54 is an e-Paper AIoT development board, equipped with ESP32-C6 microcontroller, which supports Wi-Fi and
BLE dual-mode communication. Onboard 1.54inch e-paper display, features ultra-low power consumption and ambient light readability,
suitable for portable devices and long-Batt-life scenarios. Integrated with an RTC chip, SHTC3 temperature and humidity sensor, TF card
slot, low-power audio codec chip circuit, and Lithium Batt recharge management circuit. Reserved interfaces including USB, UART,
I2C, and GPIO for easy functionality expansion and sensor connectivity, providing a flexible and reliable development platform for IoT
terminals, electronic tags, portable displays, and other applications.

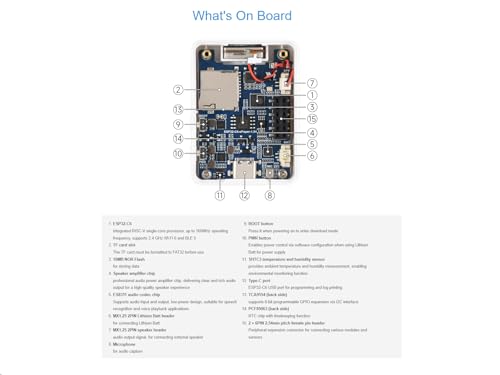

Equipped with high-performance ESP32-C6 32-bit RISC-V processor, up to 160MHz main frequency
Supports Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
Built-in 512KB HP Static RAM, 16KB LP Static RAM, 320KB ROM, and external 16MB Flash memory
Onboard 1.54inch e-paper display, 200 × 200 resolution, features high contrast and wide viewing angle
Onboard audio codec chip, supports voice capture and playback, enabling AI voice interaction applications
Onboard PCF85063 RTC chip and SHTC3 temperature & humidity sensor for accurate RTC management and environmental monitoring
Onboard TF card slot for external storage of images or files
Onboard programmable PWR and BOOT side buttons for customized function development
Reserved 2 × 6 2.54mm pitch pin header for convenient external expansion

Development Resources
https://docs.waveshare.com/ESP32-C6-ePaper-1.54?Amazon

Package Content
ESP32-C6-ePaper-1.54 host x1

  • ESP32-C6 1.54inch e-Paper AIoT Development Board.Supports AI speech interaction, temperature and humidity monitoring, and DIY creative function, etc.

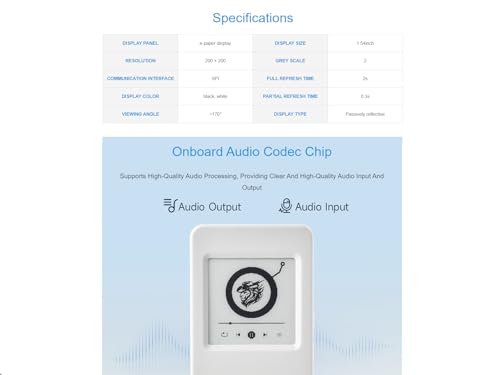

  • Onboard audio codec chip.Supports high-quality audio processing, providing clear and high-quality audio input and output

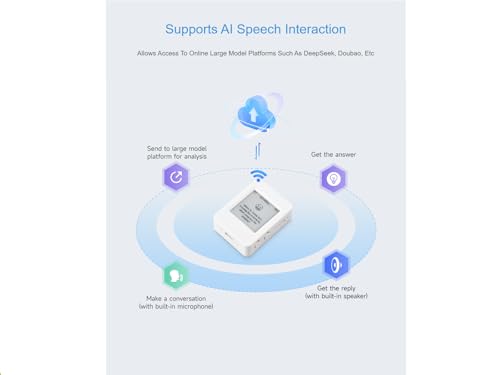

  • Supports AI Speech Interaction.Allows access to online large model platforms such as DeepSeek, Doubao, etc
  • Application Scenarios.Suitable for Voice Interaction and e-Reader, etc

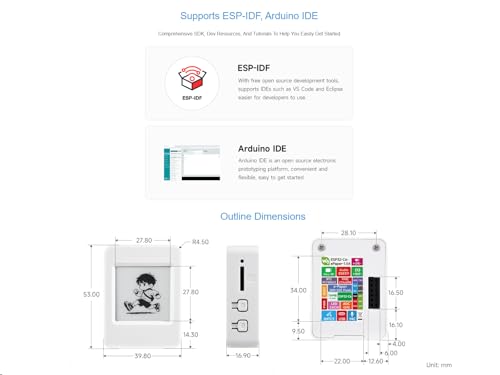

  • Supports ESP-IDF, Arduino IDE.Comprehensive SDK, dev resources, and tutorials to help you easily get started
›
SKU: B0H462WN4N
Weight: 0.03 Kilograms
Brand: Waveshare
Manufacture: Waveshare
