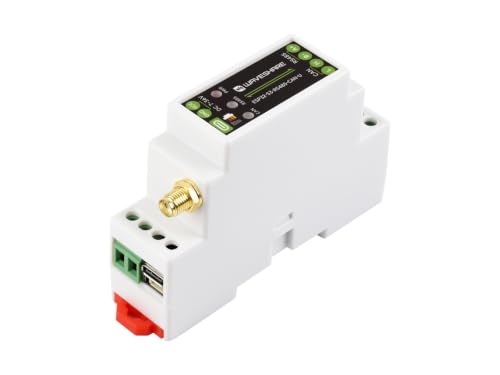

Waveshare Industrial ESP32-S3 Control Board With RS485 And

Waveshare Industrial ESP32-S3 Control Board With RS485 And CAN Interfaces

Waveshare Industrial ESP32-S3 Control Board With RS485 And CAN Interfaces,Supports Wi-Fi/Bluetooth/RS485/CAN,Built-in Ower Isolation and Optocoupler Isolation Circuits,SMA Antena Externa

Industrial ESP32-S3 Control Board With RS485 And CAN Communication Interfaces, Supports Wi-Fi / Bluetooth, Built-in Multiple Protection
Circuits,With SMA antenna connector, uses the external antenna by default

Features at a glance
Based on ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
Integrated 2.4GHz Wi-Fi and Bluetooth 5 (LE) dual-mode wireless communication, with superior RF performance
Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors
Onboard isolated CAN interface for easy access to various CAN devices

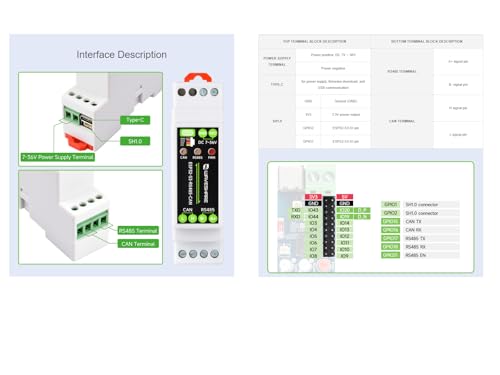

Onboard pin header for connecting external devices
Onboard USB Type-C port for power supply, firmware downloading and debugging
Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications
Onboard RTC chip, supports scheduled tasks
Onboard digital isolation to prevent interference from external signal
Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply is required for the isolated terminal
Onboard RS485 TX/RX indicators and CAN indicator for monitoring the operating status of the module
Rail-mounted protective case, easy to install, safe to use

Development Resources
https://www.waveshare.com/wiki/ESP32-S3-RS485-CAN?Amazon

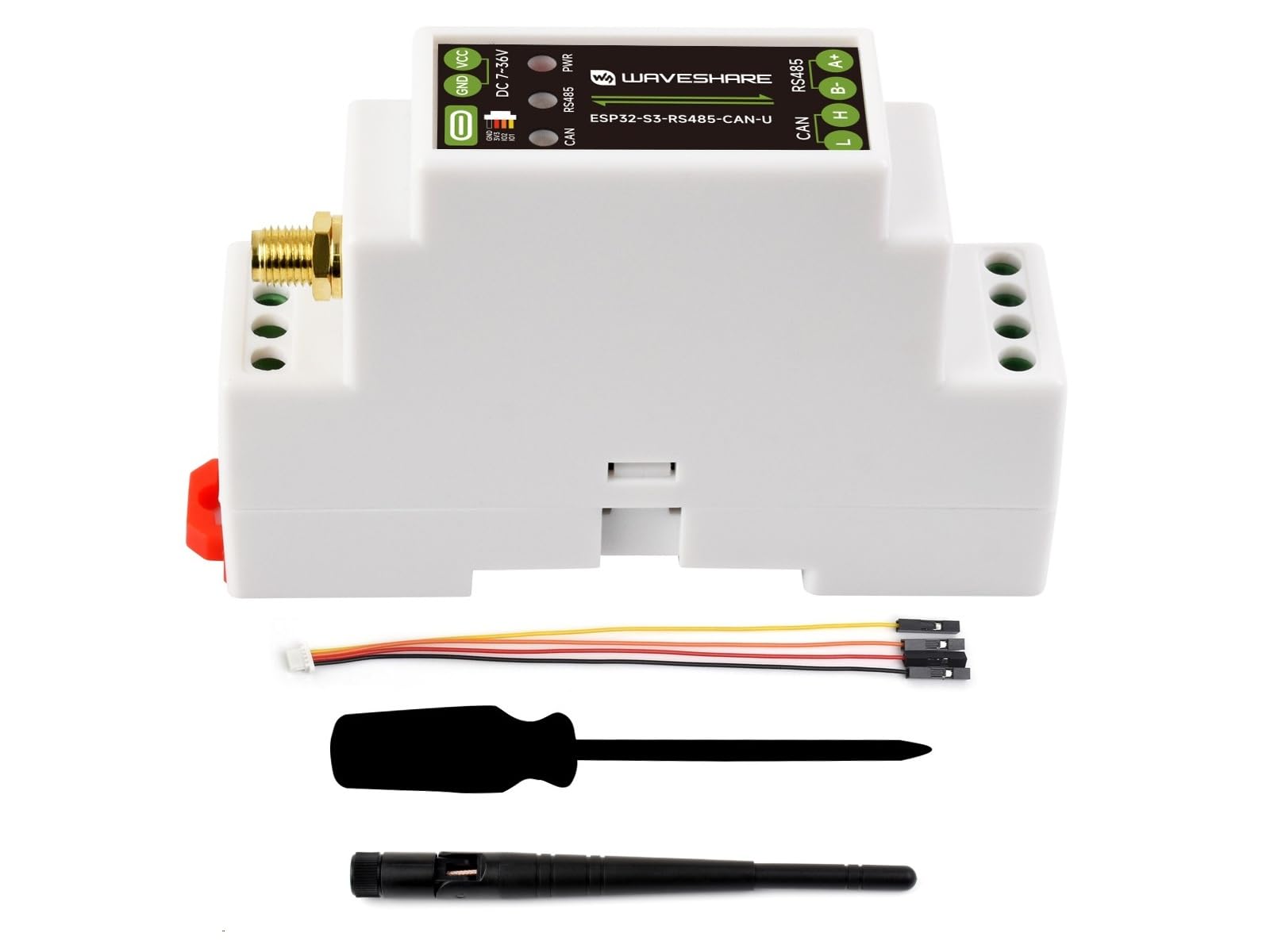

Package Content
ESP32-S3-RS485-CAN-U x1
Antenna x1
SH1.0 4PIN cable ~150mm x1
Screwdriver x1

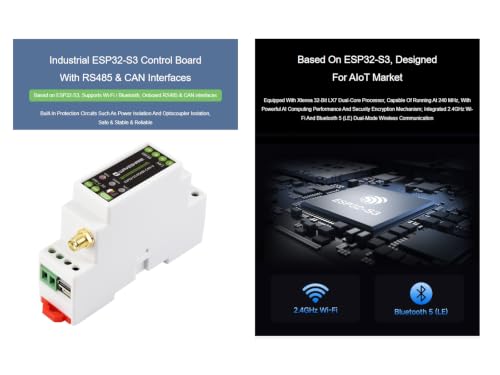

  • Industrial ESP32-S3 Control Board With RS485 & CAN Interfaces Based on ESP32-S3, Supports Wi-Fi / Bluetooth, Onboard RS485 & CAN interfaces.Built-in protection circuits such as power isolation and optocoupler isolation, Safe & Stable & Reliable
  • Based on ESP32-S3, Designed for AIoT market.Equipped with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz, with Powerful AI Computing Performance and Security Encryption Mechanism; Integrated 2.4GHz Wi-Fi and Bluetooth 5 (LE) dual-mode wireless communication
  • Onboard multiple isolation protection circuit Multiple protections, more safe and reliable

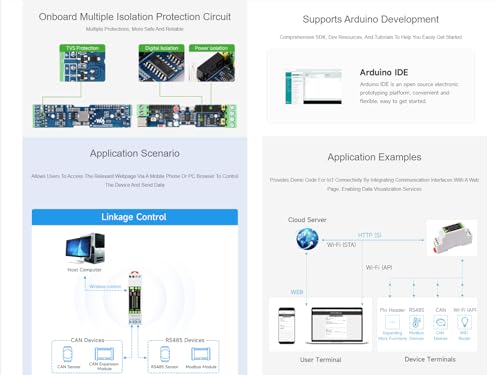

  • Application Scenario.Allows users to access the relevant webpage via a mobile phone or PC browser to control the device and send data
  • Supports Arduino development.Comprehensive SDK, Dev Resources, And Tutorials To Help You Easily Get Started
›
SKU: B0HBQMM8CT
Weight: 80 g
Brand: Waveshare
Manufacture: Waveshare
