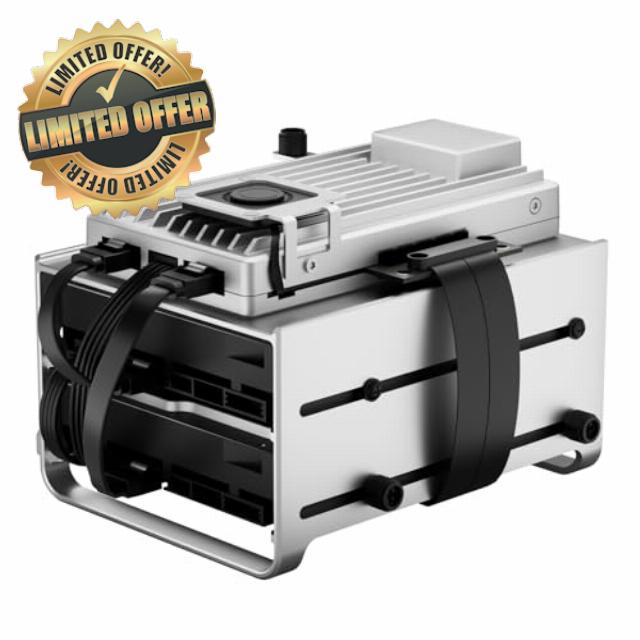

Zimaboard 2 832 2-Bay NAS/DIY Storage Mini Server | Build
Zimaboard 2 832 2-Bay NAS/DIY Storage Mini Server | Build Your Own Cloud with Intel N150 | for Plex, Nextcloud, Home Lab & Development | Expandable, Open-Source Ready(Diskless)
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
Zimaboard 2 1664

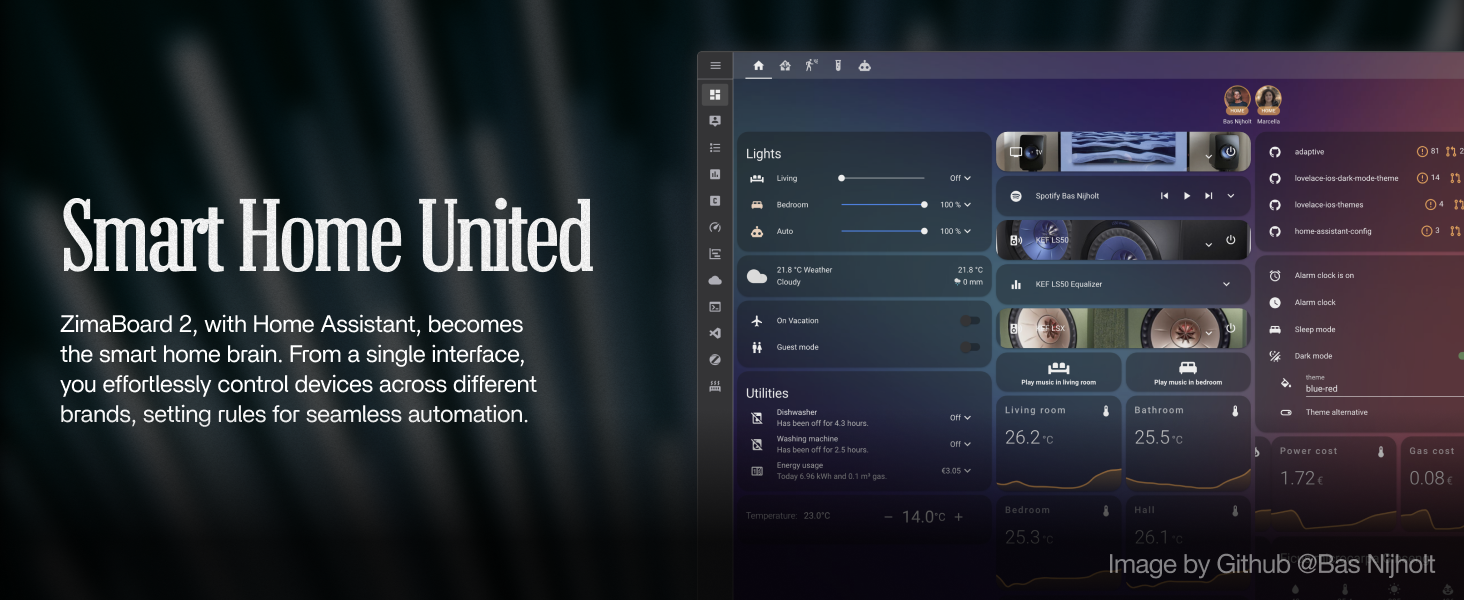

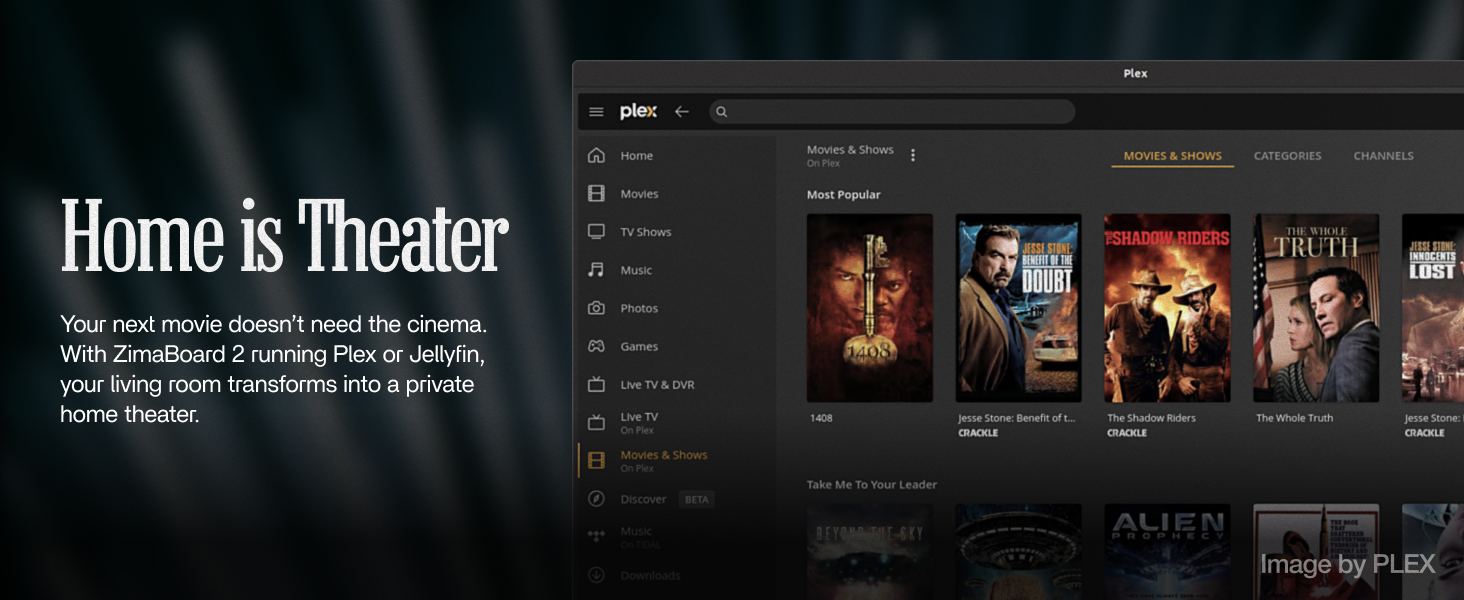

1 Home is Theater 2 Smart Home United 3 AI Home Sentinel
Ironclad Digital Fortress

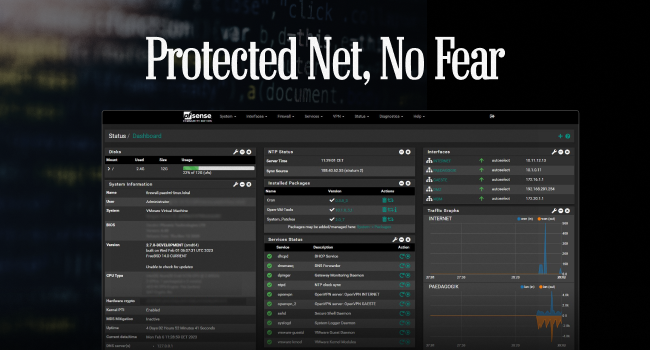

Turn your ZimaBoard 2 into a powerful network hub with OpenWrt or pfSense. Build a private network setup with advanced routing and firewall management, keeping your connections organised and under control—whether you’re at home or on the go.

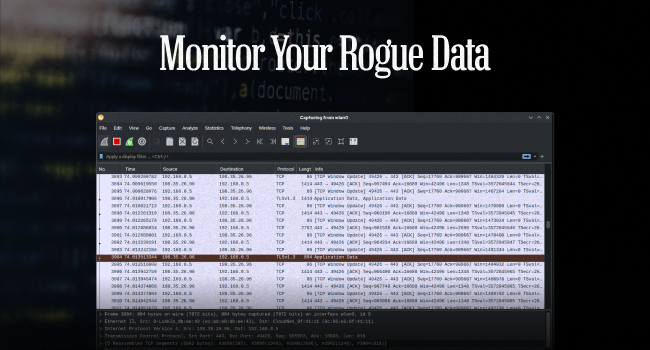

Unmask Your Data Flow
Monitor and understand your device traffic with ZimaBoard 2’s dual 2.5G ports and open-source tools. Identify unusual connections and manage network behaviour in real time for a transparent, customisable online experience.
Zimaboard 2 1664 Specification
Pre-installed OS
ZimaOS
Compatible OS
CasaOS / Linux / Windows / OpenWrt / pfSense / Android / LibreELEC
Processor
Intel Processor N150, 4 Cores, 6M Cache, up to 3.60 GHz
Memory
16GB LPDDR5x 4800MHz
eMMC
64GB
Network
2 x 2.5GbE LAN Ports
HDD/SSD
2x SATA 3.0 6Gb/s Ports with Power
USB
2x USB 3.1
PCle
1x PCle 3.0
Display
1x Mini-DisplayPort 1.4 4k@60Hz
On-board Interfaces
1x CPU fan 4-pin connector, 1x LPC, 1x Front panel
Graphics
Frequency Up to 1G MHz
Virtualization
Supports Intel AES New Instructions, Intel Virtualization Technology (VT-x), Intel Virtualization Technology for Directed I/O(VT-d)
Cooling
Fan
CPU TDP
10W
Power
12V 5A Power Supply, *Accommodate the power requirements of two high-capacity HDDs
【High-Performance x86 Server Board】 Powered by an N150 quad-core CPU up to 3.6GHz, with 16GB DDR5 RAM and 64GB onboard storage, ZimaBoard 2 provides stronger multitasking power than Pi-style SBCs and far more flexibility than mini PCs—ideal for DIY NAS, router builds, Docker stacks, home labs, AI edge workloads, and creative studio setups.

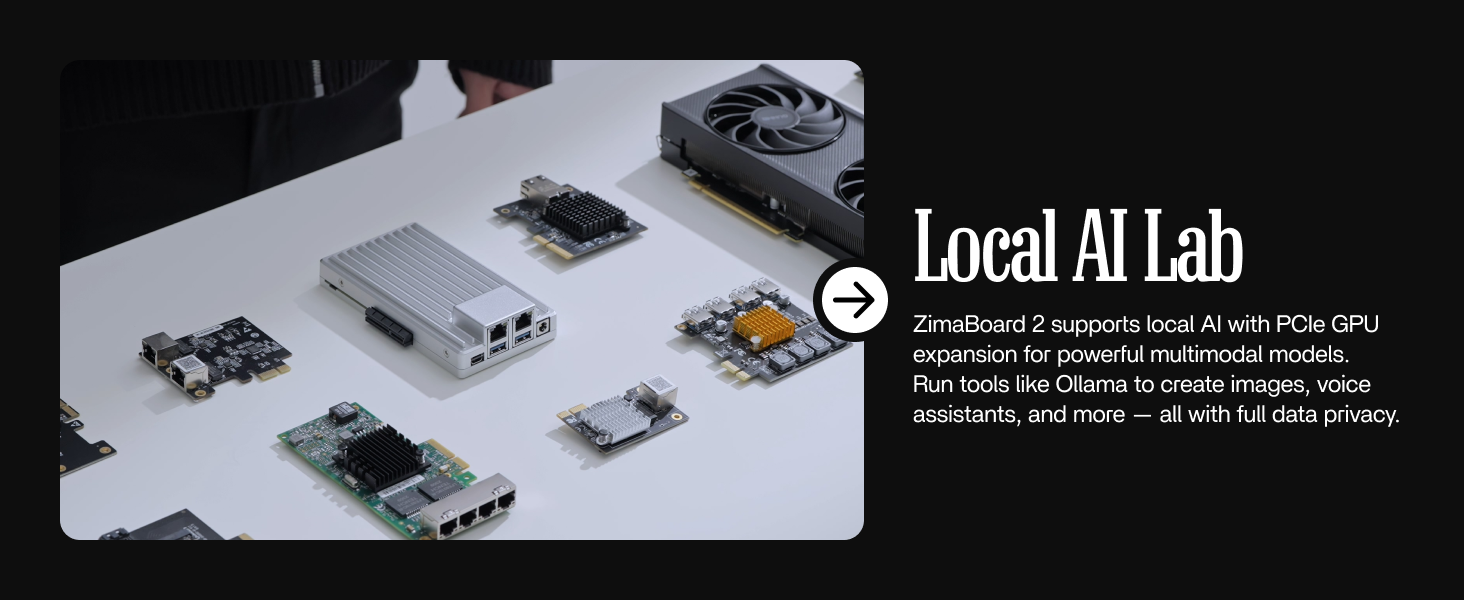

【Enhanced Performance + Real Expandability】 The upgraded CPU delivers over 3× faster performance, making large-folder browsing, photo previews, and 4K media streaming noticeably smoother. With PCIe 3.0×4 and dual SATA ports, you get true server-grade flexibility: add NVMe SSDs, HDD/SSD arrays, multi-port NICs, cache drives, or even GPU cards for local AI models. Build and scale your own NAS, Docker lab, home cloud, or homelab server without replacing the hardware.
【Dual 2.5GbE for Stable & Flexible Networking】 Dual 2.5GbE ports provide two independent high-speed channels, perfect for creating WAN/LAN setups, multi-WAN routing, VLAN segmentation, or advanced firewall and soft-router configurations. Even under heavy downloads, backups, and media streaming, your network stays fast and stable—ideal for 24/7 home-server and studio environments.

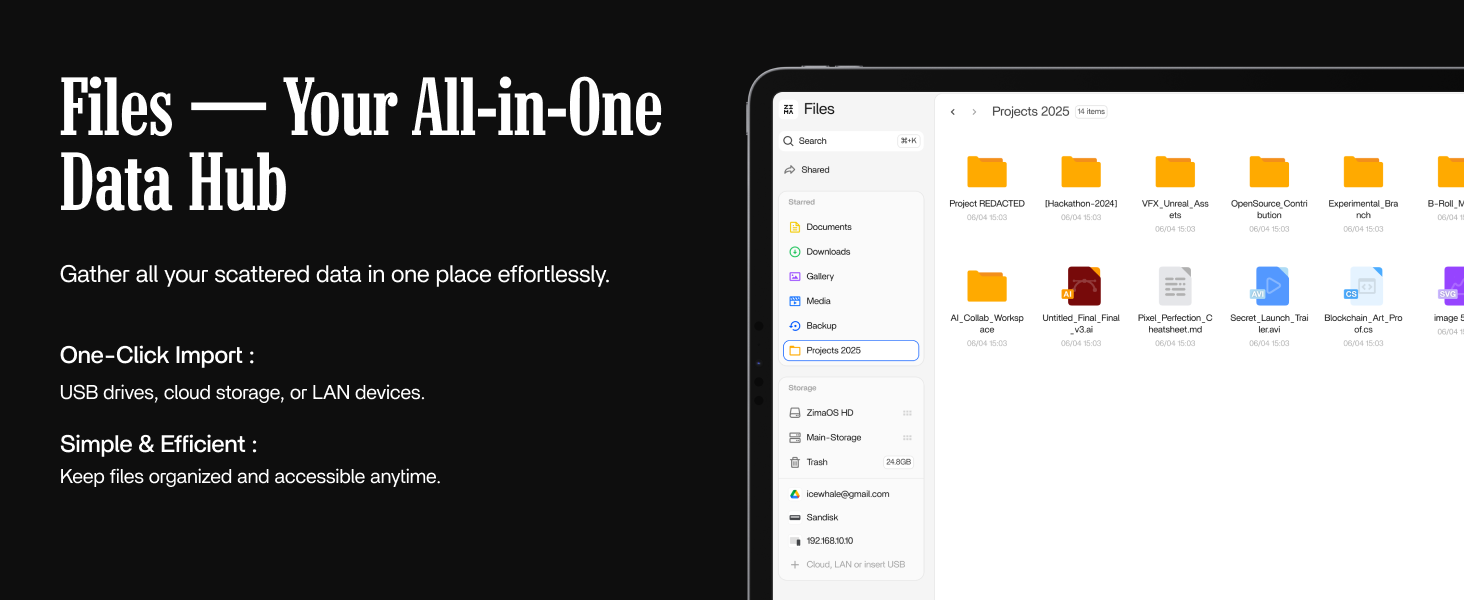

【ZimaOS Preinstalled + Wide OS Compatibility】 Comes preinstalled with ZimaOS for a clean, ad-free private cloud experience—centralized file dashboard, automatic backups, P2P downloads, private photo/video sharing, 500+ plug-ins, and secure on-device AI that keeps your data at home. Also supports TrueNAS, Proxmox, Debian, Ubuntu Server, pfSense, OpenWrt, and Linux containers, making it perfect for Plex media servers, Pi-hole, firewalls, backups, Docker labs, home-cloud services, and multi-service
【Outperforms Pi & Outclasses Mini PCs】 One device replaces multiple boxes: NAS, router, Docker node, media server, firewall, AI edge machine, and home-cloud server. It also supports smart home workloads such as Home Assistant, Frigate, and local automation services through Docker or Linux containers—making ZimaBoard 2 an all-in-one x86 home server for homelabs, creators, engineers, and self-hosting users.
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
Zimaboard 2 1664
Unmask Your Data Flow
Monitor and understand your device traffic with ZimaBoard 2’s dual 2.5G ports and open-source tools. Identify unusual connections and manage network behaviour in real time for a transparent, customisable online experience.
Zimaboard 2 1664 Specification
Pre-installed OS
ZimaOS
Compatible OS
CasaOS / Linux / Windows / OpenWrt / pfSense / Android / LibreELEC
Processor
Intel Processor N150, 4 Cores, 6M Cache, up to 3.60 GHz
Memory
16GB LPDDR5x 4800MHz
eMMC
64GB
Network
2 x 2.5GbE LAN Ports
HDD/SSD
2x SATA 3.0 6Gb/s Ports with Power
USB
2x USB 3.1
PCle
1x PCle 3.0
Display
1x Mini-DisplayPort 1.4 4k@60Hz
On-board Interfaces
1x CPU fan 4-pin connector, 1x LPC, 1x Front panel
Graphics
Frequency Up to 1G MHz
Virtualization
Supports Intel AES New Instructions, Intel Virtualization Technology (VT-x), Intel Virtualization Technology for Directed I/O(VT-d)
Cooling
Fan
CPU TDP
10W
Power
12V 5A Power Supply, *Accommodate the power requirements of two high-capacity HDDs
