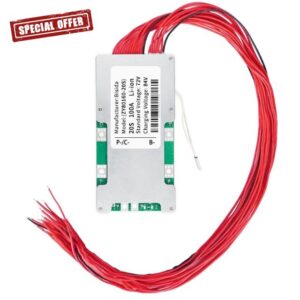

BMS 20S 72V 100A Lithium PCB Protection Board with Balancer
BMS 20S 72V 100A Lithium PCB Protection Board with Balancer Line and NTC, Shared Connection, Ten Protection Functions, Lithium-Ion Battery Management System, Li-Ion BMS Technical data: Standard voltage: 72 V. Maximum operating current: 100 A. Power consumption in operation: ≤ 40 µA. Main line internal resistance: ≤15mΩ Temperature range: -20 to +70 °C. Surge Protection: Yes Balance current: ≤ 45 mA. Discharge: Deep discharge voltage: 2.8 V ± 0.08 V. Deep discharge shutdown: 3 V ± 0.1 V. Surge Protection: 3 to 5 times operating current Over current fix: charge recovery/load disconnect Short circuit fix: charge recovery/load disconnect Charging: The...
